Lead Screw Stepper Motor

Kechen Motor – Lead Screw Stepper Motor Manufacturer in China

Kechen Motor operates at the intersection of high-volume manufacturing and precision engineering. While we maintain a vertically integrated production line—controlling everything from rotor balancing to the final calibration of axial end-play—our primary value lies in application-specific synchronization. A Lead Screw Stepper Motor is not a standalone component; it is the heart of a linear motion system. By managing the manufacturing vertical, we ensure that the mechanical tolerances of the 8mm to 42mm motor frames are perfectly matched to the lead screw’s thread geometry.

For global OEMs, this means we provide more than just hardware. We offer a stable supply chain for low-voltage (≤ 24V DC) actuators where torque density and radial load capacity are non-negotiable. Our technical team utilizes the data from our in-house testing rigs to help clients map the motor’s torque curve against their specific dynamic load profiles. This collaborative engineering approach ensures that the chosen captive, non-captive, or external actuator configuration is optimized for the intended duty cycle, reducing the risk of mechanical fatigue or resonance-related failures in the field.

Hybrid & Permanent Magnet Lead Screw Stepper Motors

Our product range includes both hybrid and permanent magnet lead screw stepper motors, allowing you to select the right balance between precision, cost, and performance. All models feature an integrated lead screw design for direct linear motion, simplifying installation and reducing alignment issues in your application.

Parameter	Lead Screw Stepper Motor
	Hybrid Lead Screw Stepper Motor	Permanent Magnet Lead Screw Stepper Motor
Motor Type	Hybrid (1.8° / 0.9°)	Permanent Magnet (7.5° / 15°)
Linear Motion Type	Captive, Non‑captive, External	Captive, Non‑captive, External
Frame Size	NEMA 8, NEMA 11, NEMA 17	Φ10mm, Φ15mm, Φ20mm, Φ25mm, Φ35mm, Φ42mm
Lead Screw Pitch	Customized (e.g. 0.5 mm – 50 mm per revolution; common 1‑10 mm)	Customized (e.g. 0.5 mm – 8 mm per revolution)
Stroke Length	Customizable, >300 mm up to 1 m (typical)	Customizable, up to 300 mm effective stroke (typ.)
Linear Thrust	High, suitable for precision loads	Moderate, cost‑effective solution
Control Type	Open‑loop or closed‑loop (optional)	Open‑loop or closed‑loop (optional)
Encoder Option	Incremental encoder available (optional closed‑loop control)	Incremental encoder available (optional closed‑loop control)
Positioning Performance	High accuracy, low step loss	Good positioning stability for mid‑accuracy applications
Operating Temperature	-10°C to +50°C (typical)	-10°C to +50°C (typical)
Customization	Lead screw, stroke, encoder, connector, mounting options	Lead screw, stroke, encoder (optional), connector, mounting options

All lead screws are manufactured from stainless steel, with optional brass or engineering plastic nuts to suit different load, wear, and noise requirements.

Customizable and High-Precision: Kechen Motor Product Features

The durability of a linear motion system is largely dictated by its tribological properties and thermal management. Kechen Motor’s Lead Screw Stepper Motors utilize high-performance synthetic lubricants that maintain consistent viscosity across a broad temperature spectrum, preventing premature wear of the nut and screw interface. The interaction between the stainless steel screw and the internal nut is engineered for low friction coefficients, which directly translates to higher transmission efficiency and reduced heat generation during continuous operation.

In terms of material science, we utilize specialized high-polymer materials (such as modified POM) for our nuts to provide self-lubricating properties in medical or clean-room environments where external grease is prohibited. For industrial applications requiring higher load-bearing capacity, phosphor bronze nuts are deployed to handle increased radial and axial forces without compromising the thread’s structural integrity.

Thermal stability is achieved through the use of Class B or Class F insulation systems, allowing the motor to operate at rated current without significant torque degradation. Furthermore, the alignment of the lead screw relative to the motor’s bearing seat is strictly controlled. This precision minimizes “wobble” or run-out, which is critical for applications requiring sub-micron positioning accuracy. By optimizing the tooth geometry of the stator and rotor, we also ensure that the detent torque is minimized, providing smoother linear transitions.

Industrial & Commercial Applications for Linear Systems

• Laboratory & Medical Automation
  Precision fluid handling and syringe pump actuation in clinical analyzers. Our actuators deliver the high repeatability required for consistent volumetric dosing.

• Electronics & SMT Assembly
  Component feeding, nozzle positioning, and precision tooling. Frame sizes from 8 mm to 42 mm support dense integration into modular SMT lines.

• Precision Office & Commercial Imaging
  Used in high-end scanners, large-format printers, and 3D printing platforms. Vibration‑free linear travel enhances image resolution and layer consistency.

• Financial & Retail Hardware
  High‑cycle reliability for banknote validation, card dispensing, and locking mechanisms in ATMs and self‑service kiosks.

• Commercial Food & Beverage Dispensing
  Precision dosing pumps for professional coffee systems and vending machines. Food‑grade lubricants and corrosion‑resistant screws ensure long‑term hygiene.

• Security & Surveillance Hardware
  Heavy‑duty PTZ positioning and automated focus. Noise below 45 dB for discreet operation, with position retention during power‑off.

• Industrial Packaging & Labeling
  Height adjustment for labeling heads and tension control in filling machinery, maintaining reliability under continuous operation.

Understanding Captive, Non-Captive, and External Configurations

To address specific mechanical constraints, we provide three standardized architectural configurations:

• Captive: Features an internal spline mechanism that prevents screw rotation, providing a direct linear output from the motor face.

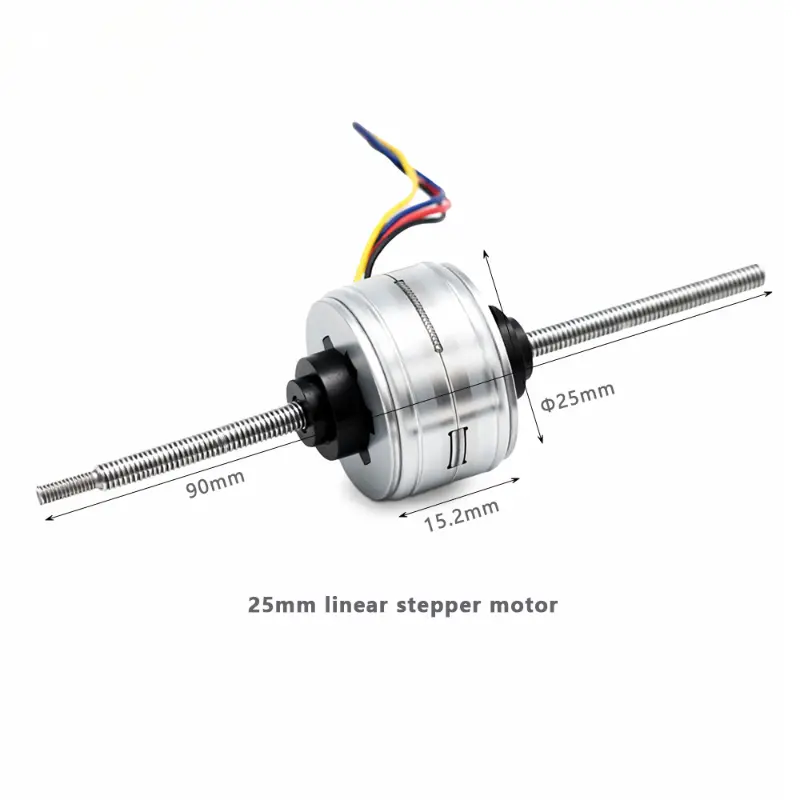

• Non-Captive: The lead screw passes through the rotor; ideal for applications where the motor remains stationary while the screw translates.

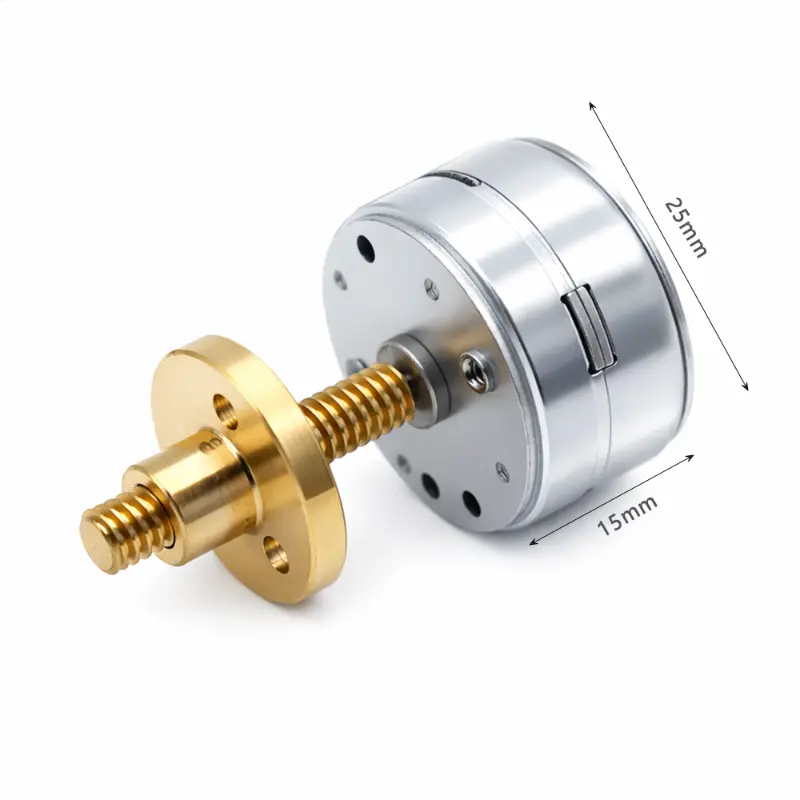

• External: A traveling nut moves along a fixed screw, offering maximum flexibility for diverse load mounting geometries and alignment.

Why Work With Kechen Motor

Beyond standard products, we focus on providing practical and adaptable solutions for different linear motion systems. From initial selection to customization support, we help simplify your sourcing and integration process.

• Responsive technical support for model selection and customization
• Flexible production for both prototype and volume requirements
• Stable quality across batches for long-term projects
• Experience with OEM and application-specific modifications

Custom Lead Screw Stepper Motor Solutions

We offer flexible customization to match your exact application requirements, helping reduce design complexity and improve system compatibility.

• Lead & Stroke Configuration
  Different lead pitches and stroke lengths can be configured to achieve the required speed, resolution, and thrust performance.
• Nut & Mechanical Structure
  Options include anti-backlash nuts, captive and non-captive designs, as well as external linear configurations for different installation methods.
• Motor & Electrical Options
  Motor sizes, wiring types, connectors, and optional encoders can be customized to fit your control system and installation environment.
• Request a Quote
  Share your specifications or application details with us — we will recommend a suitable solution and provide a clear quotation quickly.
