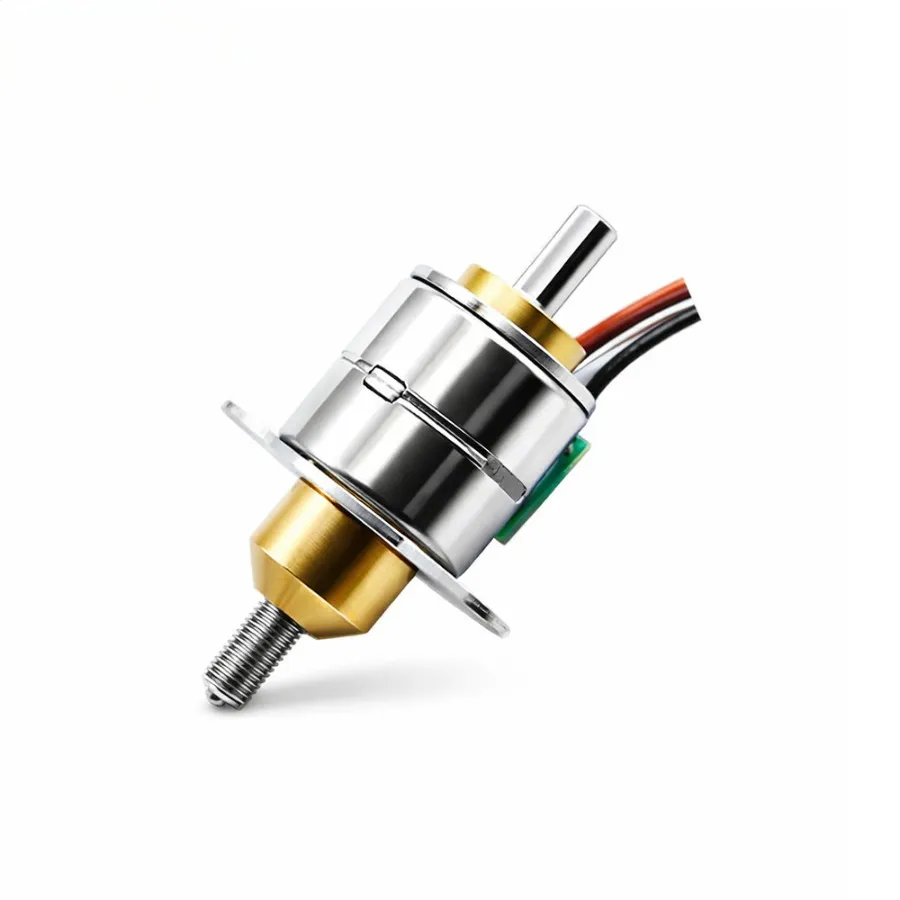

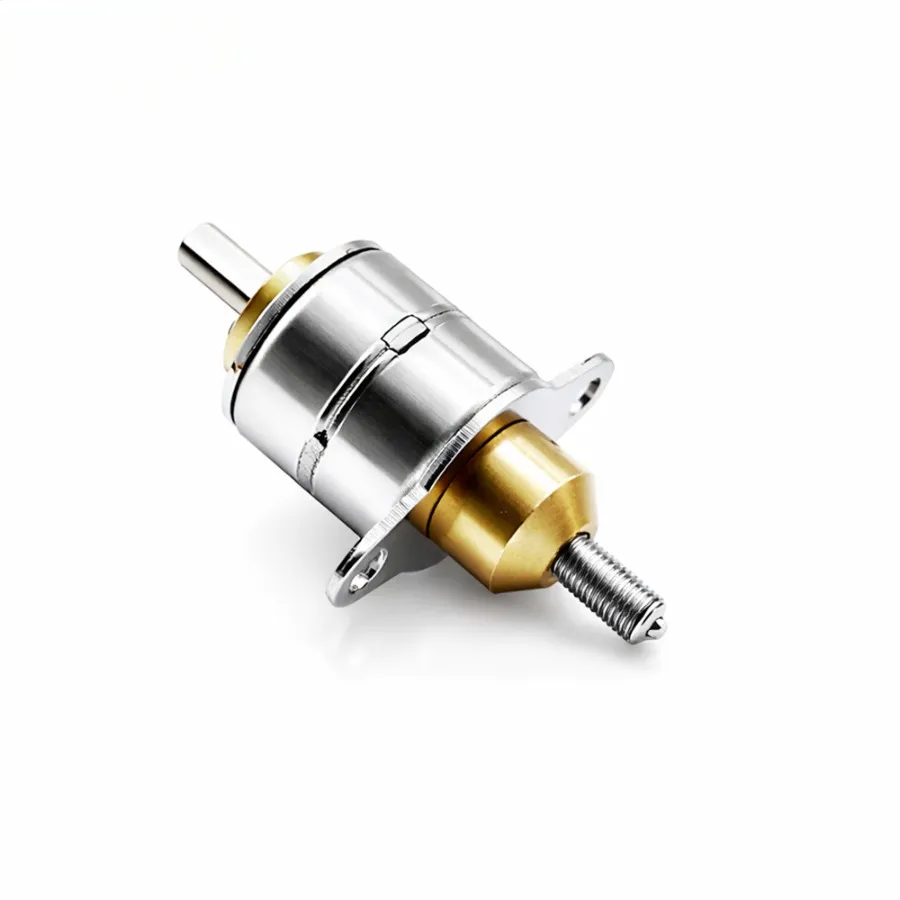

10mm External Lead Screw Linear Stepper Motor | 5V M2.2 Micro PM Actuator KC-10BY25-800
Applications: Medical infusion pumps, laboratory automation, precision pipettes, microfluidic control, optical positioning systems, electronic instrumentation, precision valve control, miniature linear stages, portable medical devices, automated fluid handling.
Inquiry NowKC-10BY25-800 Linear Stepper Motor Performance Test Data
| Parameter | Specification |
|---|---|
| Step Angle | 18° (at 800 pps ref.) |
| Excitation Mode | 2-2 phase excitation |
| Holding Torque | 200.0 gf·cm |
| Noise Level | ≤ 50 dB(A) |
| Insulation Resistance | 50 MΩ minimum (at 300 V DC) |
| Operating Temperature Range | 10 °C to 50 °C |
KC-10BY25-800 External Lead Screw Motor Technical Specifications
| Parameter | Specification |
|---|---|
| Motor Model | KC-10BY25-800 |
| Motor Type | 2-phase PM stepper motor |
| Actuator Type | External lead screw |
| Rated Voltage | 5.0 V DC |
| Coil Resistance Per Phase | 18 Ω |
| Rated Current Per Phase | 340 mA |
| Body Diameter | 10.0 mm |
| Motor Thickness | 26 mm |
| Lead Screw Specifications | M2.2 × 6.5 mm |

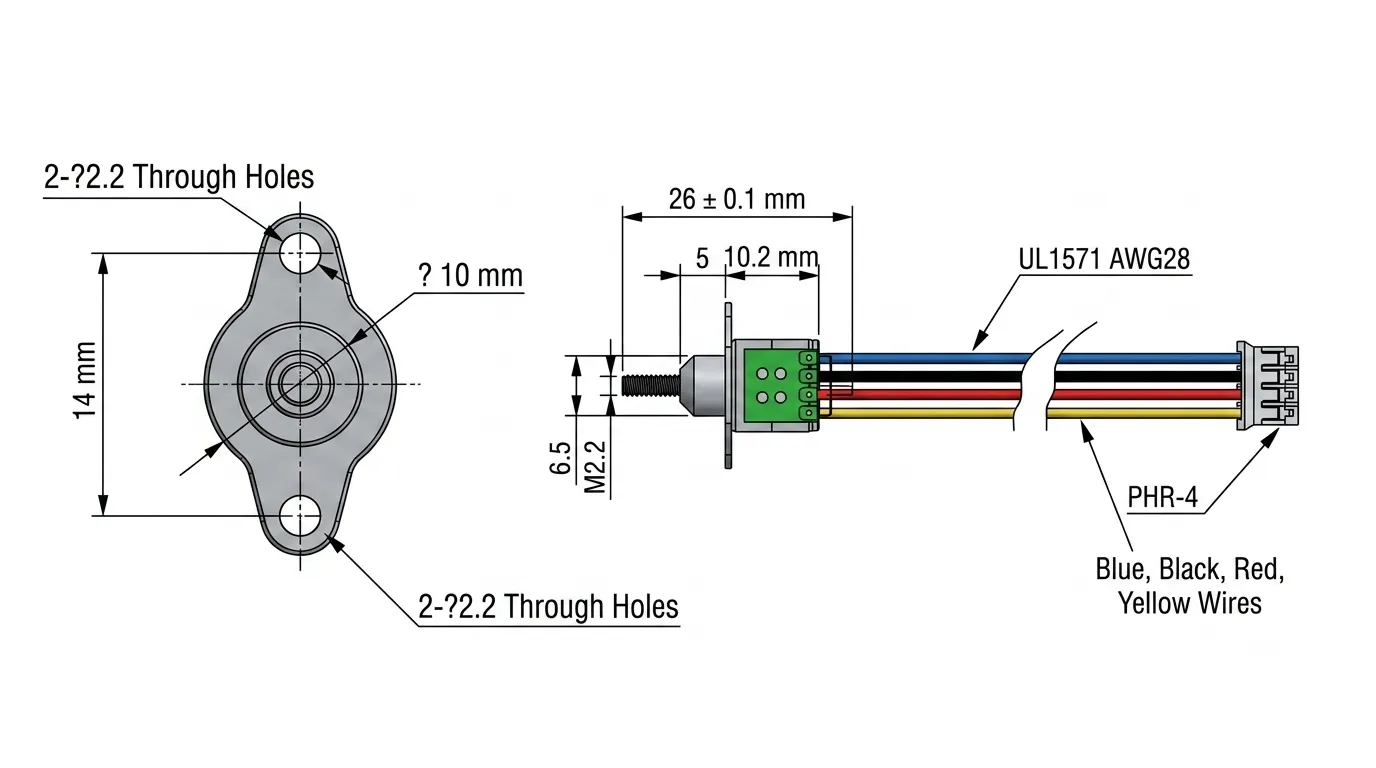

KC-10BY25-800 Dimensional Reference and Technical Drawing
Optimized Performance Advantages for B2B Integration
- Precise Linear Actuation: Features an external lead screw design with M2.2 × 6.5 mm specifications for integration into precise mechanical assemblies.
- Optimized Electrical Efficiency: Operates at a rated 5.0 V DC with 340 mA per phase, balancing thermal stability and power consumption.
- Durable Mechanical Structure: Formed with a 10.0 mm body diameter and 26 mm motor thickness, offering a reliable footprint for automated systems.
- Controlled Acoustic Signature: Engineered to maintain lower noise levels at ≤ 50 dB(A) during 800 pps operations.
- Reliable Insulation Performance: Provides 50 MΩ insulation resistance at 300 V DC to guarantee durable performance in medical and laboratory applications.
- Compatible Application Scenarios: Ideal for integration into medical infusion pumps, laboratory automation, precision pipettes, microfluidic control, and automated fluid handling.
B2B Procurement and Customization Specifications
- Custom samples prepared within 10-20 days to match exact client application configurations.
- Bulk order pricing options accessible for global procurement managers and commercial distributors.
- Manufactured under strict quality controls, fully compliant with ISO 9001, CE, and RoHS standards.
