775 Motor
Delivers consistent torque from 6,000 to 12,000 RPM for power tools, automation, and medical devices
Pre‑drilled M3 holes on standard 29mm bolt circle for direct drop‑in replacement of existing 775 units
Nickel‑plated steel housing resists corrosion in shop environments with coolant mist or humidity
Fits standard 42–44mm mounting footprints with optional shaft diameters (3.17/5/6.35mm)
Built with Class F copper windings and nickel‑plated steel housing for extended duty cycles
Optional hall‑effect encoder or filtering capacitors for closed‑loop control and low EMI applications
Kechen Motor – 775 DC Motor Manufacturer in China
775 motors are widely used in handheld tools, conveyor drives, robotics, and battery‑powered equipment. Unlike generic DC motors that force you to redesign your mounting plate or wiring harness, a properly specified 775 series motor should match your existing mechanical envelope while delivering predictable torque and speed under load. Our 775 motors use a drawn steel housing with a nickel‑plated finish to resist corrosion in shop environments where coolant mist, dust, or humidity is present. The rotor windings are machine‑wound with double‑insulated copper wire rated for Class F (155°C) thermal protection, giving you a safety margin even when the motor runs near its continuous duty limit. We offer 12V and 24V variants with no‑load speeds ranging from 6,000 RPM to 12,000 RPM and stall torque up to 1.0 N·m at 24V. Each unit uses either a 5‑pole or 7‑pole armature depending on the version, paired with sintered bronze or ball bearings. These motors can be installed in plastic housings, metal chassis, or enclosed gearboxes without overheating, and they meet CE and RoHS requirements for commercial and light industrial applications.
Custom 775 DC Motor – Your Voltage, Shaft, and Connector
Our 775 series focuses on the details that reduce field failures and simplify integration. The commutator undergoes a diamond‑turning process to lower arcing and sparking, especially during sudden startups or frequent direction changes. We use high‑grade carbon brushes with pigtail leads rather than cheap spring‑loaded types, so brush life typically exceeds 500 hours under normal continuous load, with longer life in intermittent duty applications. The housing includes pre‑drilled M3 mounting holes on a standard 29mm bolt circle, making it a direct replacement for most existing 775 footprints. For thermal management, the stator incorporates ventilation slots that allow airflow without letting debris inside. You can choose between 3.17mm, 5mm, or 6.35mm shafts, and we can grind a flat or add a circlip groove per your drawing. Wire leads are 22 AWG with silicone insulation that stays flexible from -20°C to 120°C, and we can pre‑solder filtering capacitors across the terminals for applications sensitive to electromagnetic interference. Custom connectors (Molex, JST, or bare tinned ends) are available with a minimum order of 200 pieces. Instead of claiming unrealistic performance, we publish realistic curves for torque, current, and efficiency, and we sample each production lot following ANSI/ASQ Z1.4 to verify no‑load current and speed before shipping.
775 Series Specifications
| Parameter | 775 Series Range (Typical) |
|---|---|
| Motor Diameter | 42–44mm |
| Voltage | 12V / 24V DC |
| No‑load Speed | 6000–12000 RPM |
| Stall Torque | Up to 1.0 N·m (at 24V) |
| Output Power | Up to 55W (winding dependent) |
| Shaft Diameter | 3.17mm, 5mm, 6.35mm (custom available) |
| Shaft Types | Round, D‑shaft, flat ground, circlip groove |
| Insulation Class | Class F (155°C) |
| Options | Magnetic encoder, JST/Molex connector, IP54 seal, capacitors |

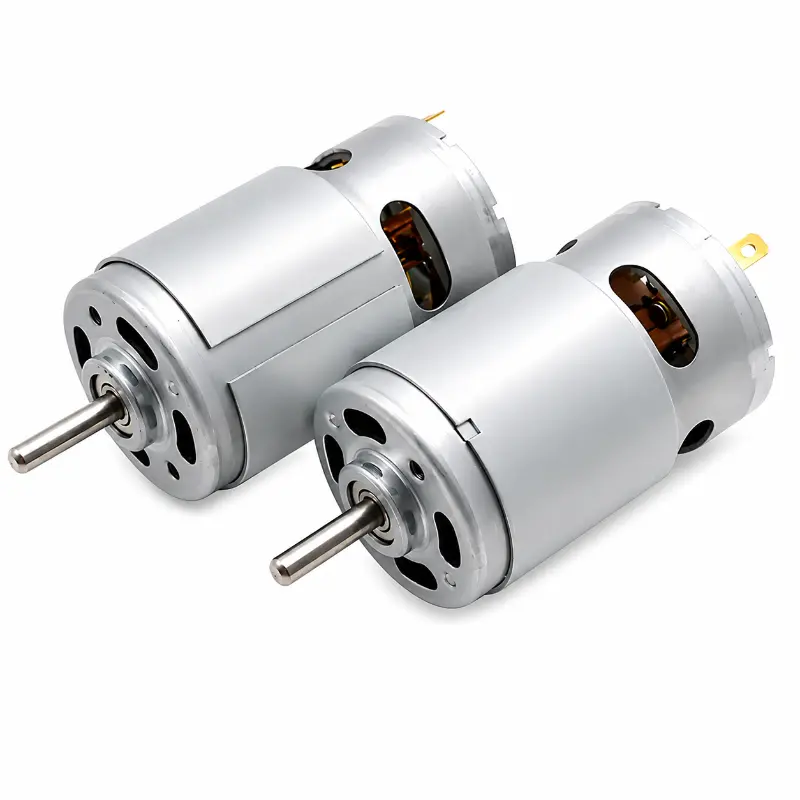

Kechen 775 DC Motor Products
Kechen 775 Motor 3D Design
Kechen 775 Motor Applications
Our 775 DC motors power critical systems across industries, from electric tools and grinders in manufacturing to drive wheels and arms in robotics and AGVs. They excel in renewable energy for solar trackers, in automotive testing for dynos, and in consumer products like high-power fans and pumps. Used in marine equipment, power tools, DIY drones, and automation lines, they provide robust performance in dusty workshops, outdoor machinery, and high-vibration settings, ensuring reliable operation worldwide.
Top Features of High-Quality 775 DC Motors
Premium 775 motors feature ball bearings for smooth, low-noise operation (under 70dB), efficiency up to 80%, and CW/CCW reversibility. High-torque steel gears resist stripping, while IP-rated housings protect against dust and splashes. Custom shafts and voltages match specific needs, with thermal cutoffs preventing burnout. Locking collars and brackets enable secure mounting, and compliance with CE/RoHS supports seamless global integration.
