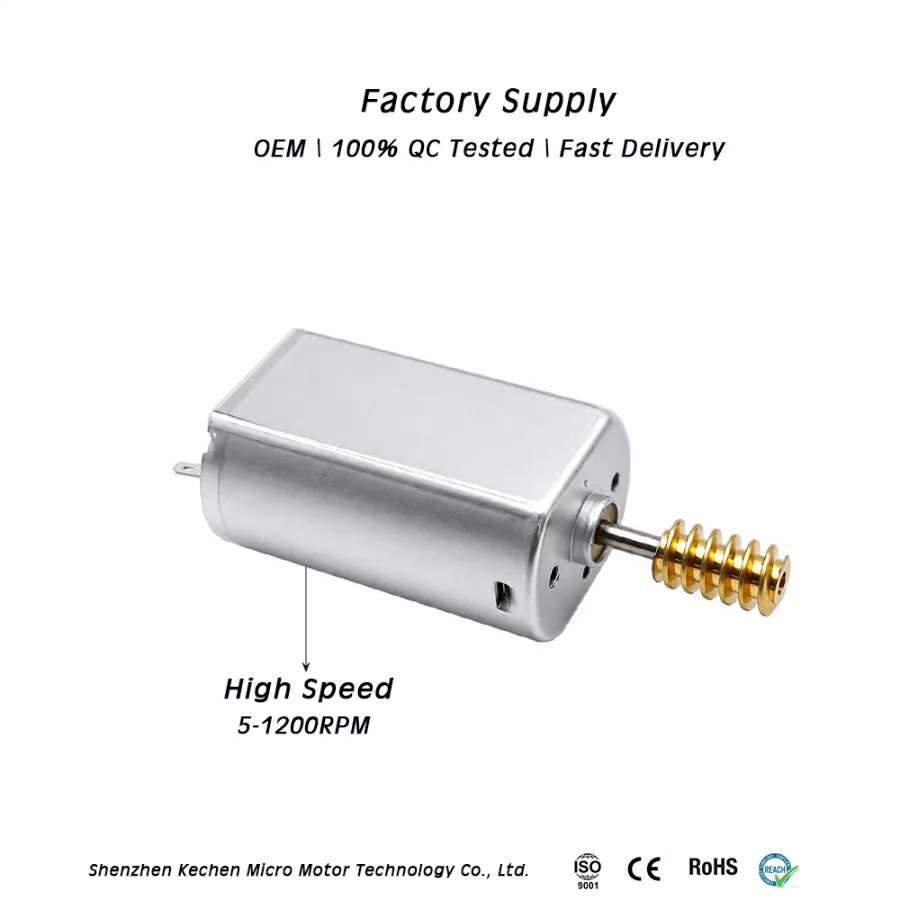

High Speed 3V-24V Worm Drive Micro DC Motor for Industrial & Personal Care – KC-180 Series
Applications: Industrial integration, compact mechanical devices, automated equipment, precision control systems, power transmission modules, and customized small-scale machinery.
Inquiry NowElectrical And No-load Performance Data
| Model Number | Rated Voltage | No-load Speed | No-load Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|
| KC-180SH-2375 | 3.0 V | 6 100 rpm | 106 mA | 90.4 g·cm | 2.1 A |
| KC-180SH-18125 | 12.0 V | 15 000 rpm | 158 mA | 168.8 g·cm | 4.1 A |
| KC-180SH-13230 | 24.0 V | 15 000 rpm | 95 mA | 270 g·cm | 1.8 A |
Performance Parameters At Maximum Efficiency
| Model Number | Efficiency Speed | Efficiency Torque | Efficiency Current | Output Power |
|---|---|---|---|---|
| KC-180SH-2375 | 4 750 rpm | 20 g·cm | 569 mA | 1.7 W |
| KC-180SH-18125 | 13 400 rpm | 20 g·cm | 442 mA | 5.3 W |
| KC-180SH-13230 | 14 000 rpm | 20 g·cm | 236 mA | 5.7 W |

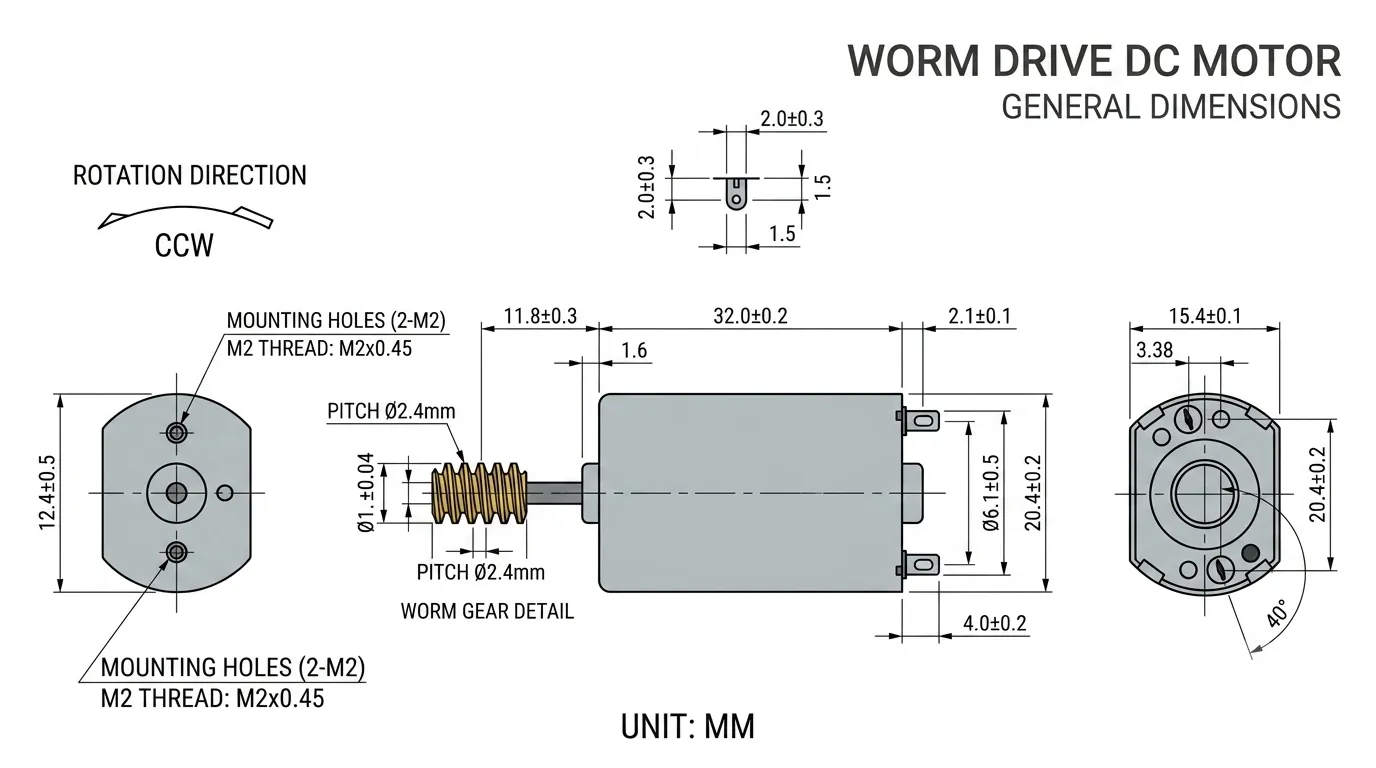

KC-180 Worm Drive DC Motor Dimensions & Technical Drawing
Technical 2D Drawing Reference for KC-180SH Series

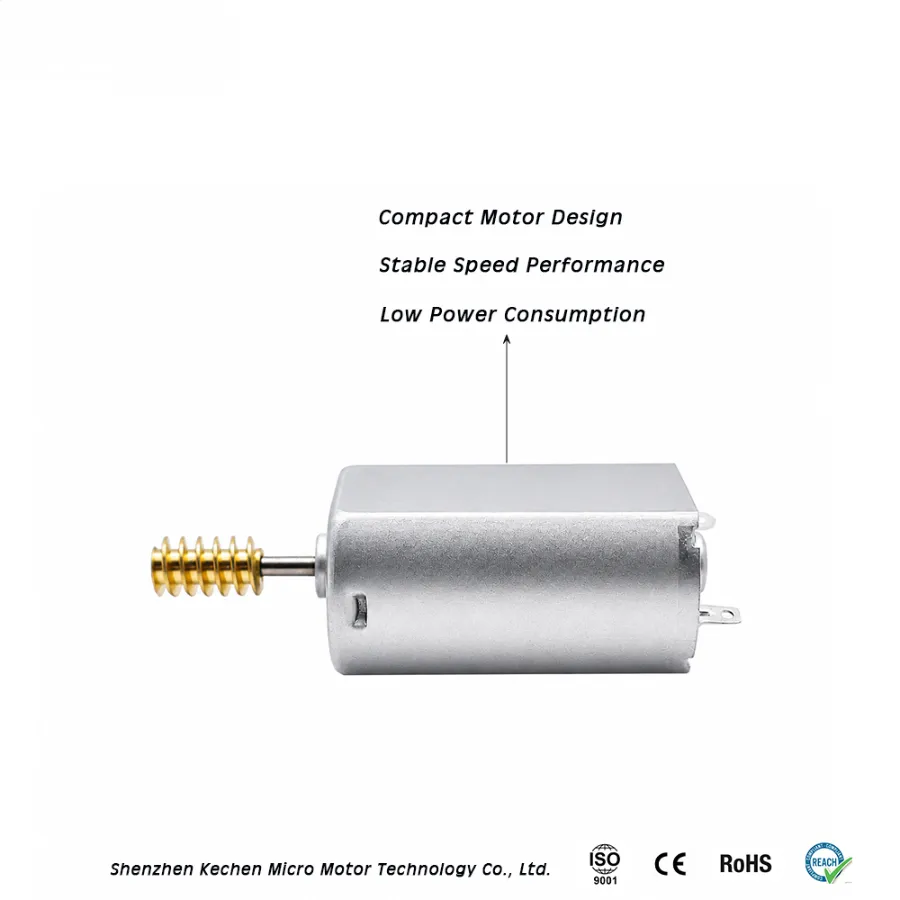

Micro Motor Performance Advantages
- Optimized power density: Engineered for high torque output in compact form factors
- Precision control: Consistent speed and current performance for reliable integration

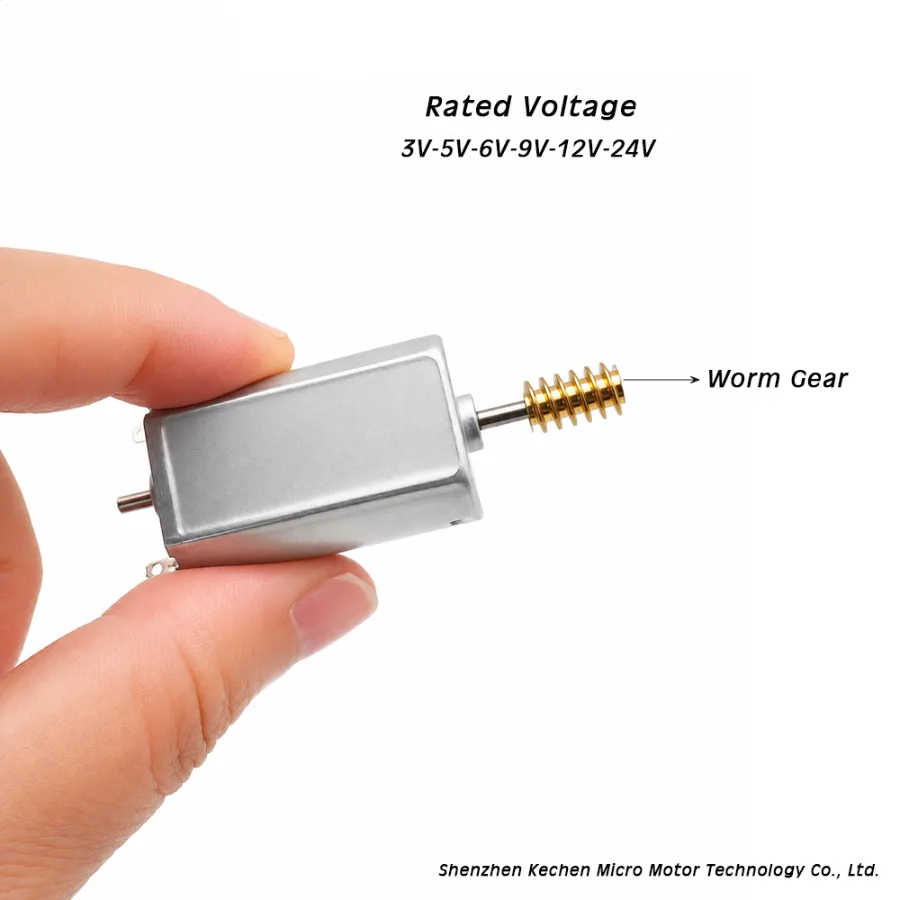

- Compatible design: Versatile voltage options (3 V–24 V) for diverse industrial applications
- Durable construction: Industrial-grade components ensuring long-term operational stability
- Seamless integration: Standardized mounting and shaft dimensions for rapid assembly
