NEMA 17 Stepper Motor
42mm × 42mm standard NEMA 17 frame
0.9° and 1.8° step angle options
Multiple body lengths and winding configurations
Single shaft, dual shaft and lead screw options
Planetary gearbox, worm gearbox and encoder configurations
Custom NEMA 17 stepper motors for OEM and industrial applications
Kechen Motor – NEMA 17 Stepper Motor Manufacturer in China
Kechen Motor manufactures NEMA 17 stepper motors for precision positioning, industrial automation and OEM motion-control applications. Our NEMA 17 series uses the standard 42 mm × 42 mm mounting frame and two-phase hybrid stepper motor construction.
Different motor lengths, step angles, winding specifications and shaft configurations are available to match mechanical load, installation space and control requirements. Standard options include 1.8° stepper motors with 200 full steps per revolution and 0.9° versions with 400 full steps per revolution.
For OEM projects, NEMA 17 stepper motors can be configured with single shafts, dual shafts, D-shafts, custom shaft dimensions, integrated lead screws, different cable lengths and connector types. Planetary gearboxes, worm gearboxes, parallel shaft gearboxes and encoder configurations are also available.
NEMA 17 Stepper Motor Series Specifications
| Parameter | NEMA 17 Stepper Motor Series |
|---|---|
| Motor Type | 2-Phase Hybrid Stepper Motor |
| Frame Size | NEMA 17, 42 mm × 42 mm mounting frame |
| Step Angle | 1.8° or 0.9° |
| Steps Per Revolution | 200 full steps at 1.8° or 400 full steps at 0.9° |
| Holding Torque Range | Approx. 1.8–8.7 kg·cm (18–85 N·cm), depending on motor body length and winding configuration |
| Phase Current | Approx. 0.5–2.5 A per phase, depending on winding configuration |
| Wiring Options | 4-lead or 6-lead configurations |
| Shaft Options | Single shaft, dual shaft, D-shaft, integrated lead screw and custom machined shaft |
| Gearbox Options | Planetary gearbox, worm gearbox and parallel shaft gearbox |
| Feedback Options | Magnetic encoder and closed-loop configurations |
| Insulation Class | Class B standard; Class F available on request |
| Protection / IP Rating | IP40 standard |
Specifications vary by model, motor length, winding configuration and customization requirements.

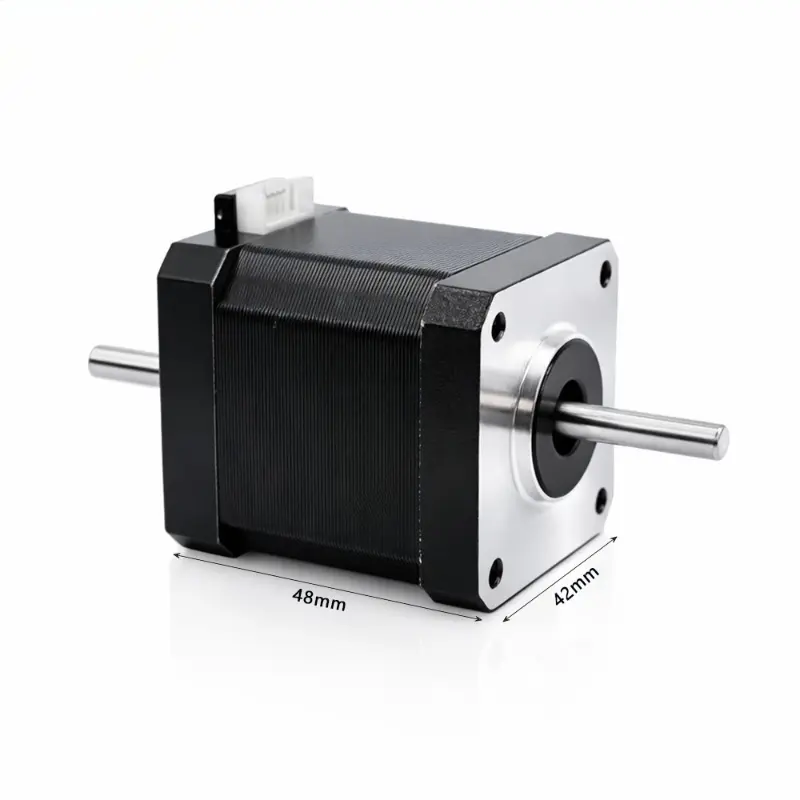

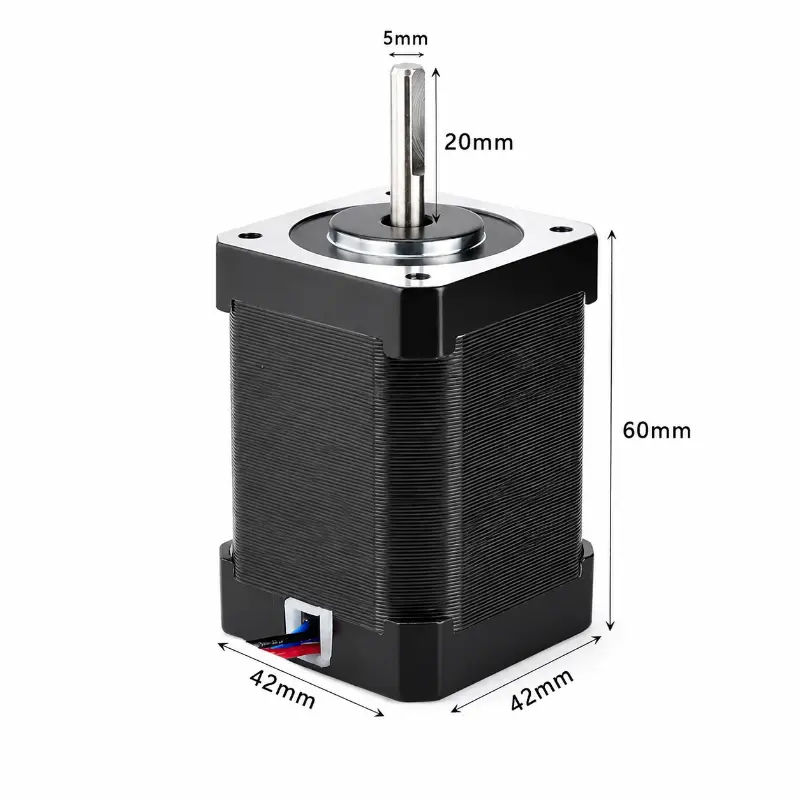

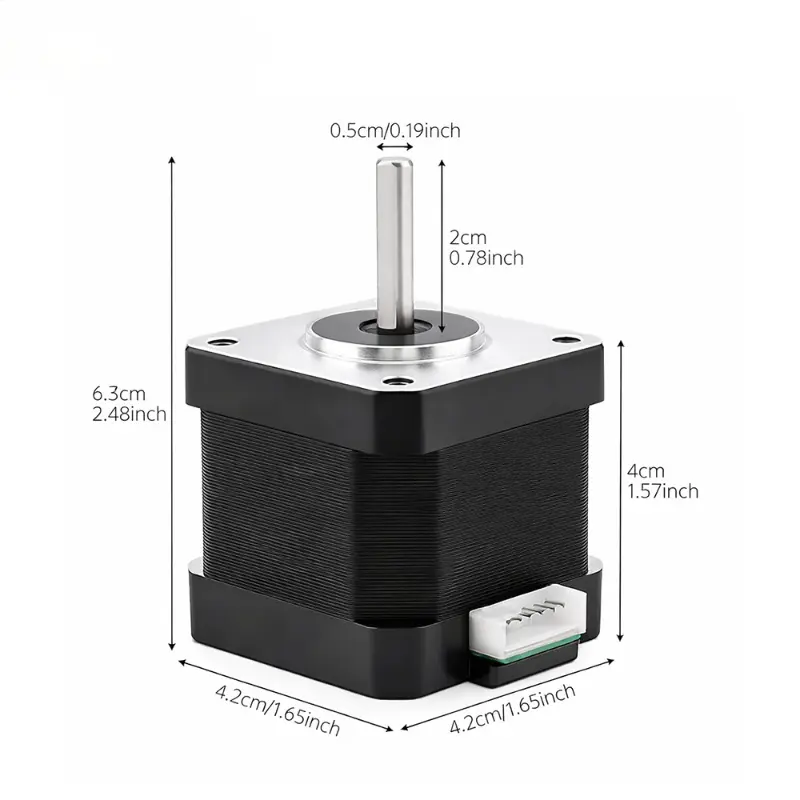

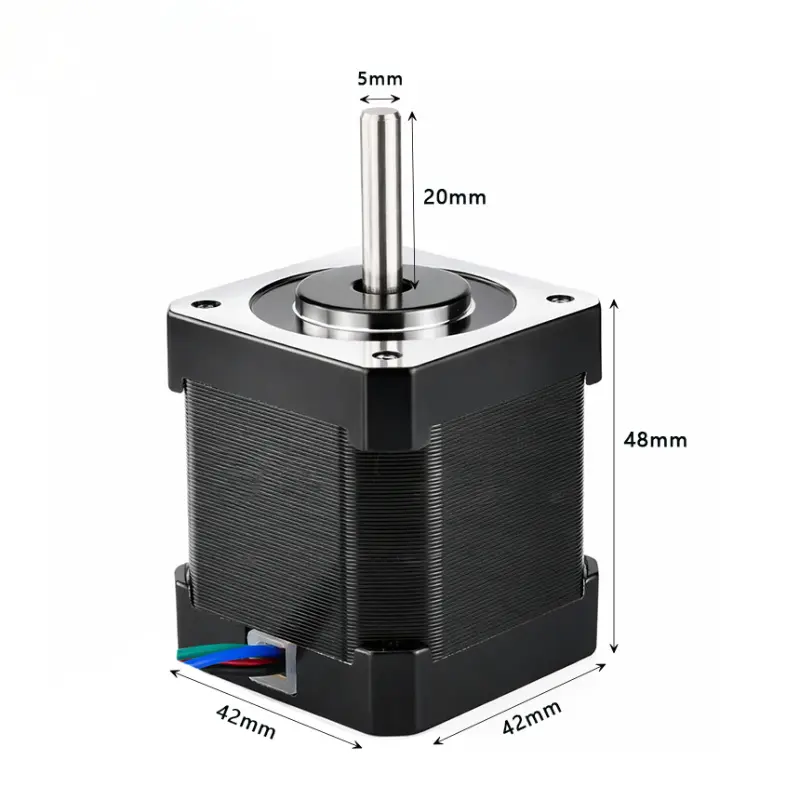

Kechen NEMA 17 Stepper Motor Products
Kechen NEMA 17 Stepper Motor 3D Design
How to Choose a NEMA 17 Stepper Motor
Choosing the right NEMA 17 stepper motor requires more than matching the standard 42 mm frame. Engineers should consider motor body length, step angle, holding torque, phase current, shaft configuration and transmission requirements.
Motor Body Length
NEMA 17 motors share the same nominal 42 mm frame size, while motor body length varies between models. Shorter motors are suitable for space-limited equipment, while longer motor bodies are commonly selected when higher holding torque is required.
0.9° or 1.8° Step Angle
A 1.8° NEMA 17 stepper motor provides 200 full steps per revolution. A 0.9° NEMA 17 stepper motor provides 400 full steps per revolution and is suitable for applications requiring finer positioning increments.
Holding Torque
Holding torque varies by motor body length and winding configuration. Current NEMA 17 models in this series range from approximately 1.8 kg·cm to 8.7 kg·cm (18–85 N·cm), with longer-body models available for higher holding torque requirements.
Phase Current
Different winding configurations are available with phase current options of approximately 0.5–2.5 A per phase. The selected winding should be matched to the stepper driver and operating requirements.
Shaft Configuration
Available shaft configurations include single shaft, dual shaft, D-shaft, custom shaft dimensions and integrated lead screw designs.
Gearbox or Encoder
A gearbox can be added where higher output torque and lower output speed are required. An encoder can be integrated where position feedback or closed-loop operation is needed.
Custom NEMA 17 Stepper Motor Options
Kechen Motor supports custom NEMA 17 stepper motor configurations for OEM equipment, industrial automation and specialized motion-control systems.
- 0.9° or 1.8° step angle
- Different motor body lengths
- Custom winding specifications
- Custom phase current
- Single or dual shaft
- D-shaft
- Custom shaft diameter and length
- Integrated lead screw
- Custom cable length
- Connector selection
- 4-lead or 6-lead wiring
- Planetary gearbox
- Worm gearbox
- Parallel shaft gearbox
- Magnetic encoder
- Closed-loop configuration
NEMA 17 Stepper Motor Types
Standard NEMA 17 Hybrid Stepper Motor
A standard 42 mm two-phase hybrid stepper motor for positioning, indexing and controlled rotary motion.
0.9° NEMA 17 Stepper Motor
Provides 400 full steps per revolution for applications requiring finer full-step positioning than a standard 1.8° motor.
High Torque NEMA 17 Stepper Motor
Longer motor bodies and suitable winding configurations can be selected where higher holding torque is required while retaining the 42 mm frame.

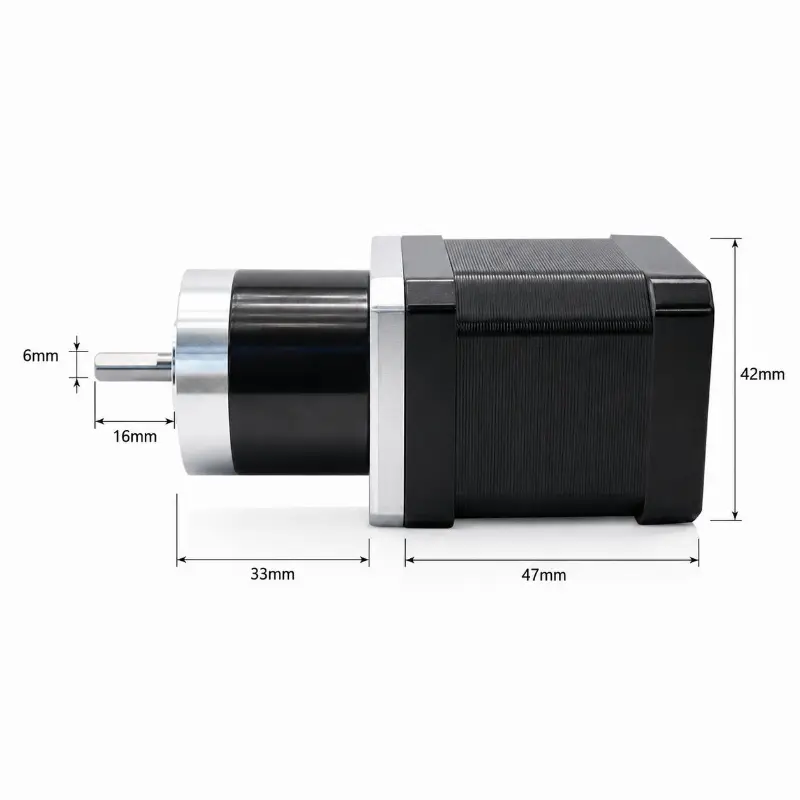

NEMA 17 Planetary Gear Stepper Motor
Combines a NEMA 17 hybrid stepper motor with a planetary gearbox to increase output torque and reduce output speed.
NEMA 17 Worm Gear Stepper Motor
Uses a right-angle worm gearbox for applications requiring a compact 90-degree transmission arrangement.
NEMA 17 Linear Stepper Motor
Uses an integrated lead screw to convert rotary stepping motion into controlled linear movement.
NEMA 17 Stepper Motor With Encoder
Adds position feedback for applications requiring motion monitoring or closed-loop control.
Closed Loop NEMA 17 Stepper Motor
Combines a NEMA 17 stepper motor with encoder feedback and a compatible controller for closed-loop positioning.
NEMA 17 Stepper Motor Applications
NEMA 17 stepper motors are widely used in compact motion systems that require repeatable positioning and controlled movement.
- Industrial automation equipment
- Desktop CNC machines
- 3D printers
- Pick-and-place systems
- Laboratory automation
- Dosing and syringe pumps
- Linear positioning stages
- Lead screw actuators
- Packaging equipment
- Textile machinery
- Automated inspection equipment
- OEM motion-control assemblies
NEMA 17 Stepper Motor Technical Downloads
Download NEMA 17 stepper motor datasheets, dimensional drawings, performance curves and technical documents for engineering evaluation and OEM motor selection.
NEMA 17 Stepper Motor Series Datasheet PDF
NEMA 17 Stepper Motor Dimensions & Drawing PDF
NEMA 17 60mm Stepper Motor Datasheet PDF
NEMA 17 Planetary Gear Stepper Motor Datasheet PDF
NEMA 17 Technical Guides
Explore detailed technical guides for NEMA 17 stepper motor dimensions, specifications, torque, speed and motor selection.
NEMA 17 Stepper Motor FAQ
What is a NEMA 17 stepper motor?
A NEMA 17 stepper motor uses the NEMA 17 mechanical frame standard, commonly with an approximately 42 mm × 42 mm mounting face. The designation defines the frame size rather than one fixed motor length, current or torque value.
What size is a NEMA 17 stepper motor?
The mounting face is approximately 42 mm × 42 mm. Motor body length varies between models according to construction, winding and torque requirements.
Are NEMA 17 motors available in both 0.9° and 1.8° versions?
Yes. A 1.8° NEMA 17 stepper motor provides 200 full steps per revolution, while a 0.9° version provides 400 full steps per revolution.
How much holding torque does a NEMA 17 stepper motor provide?
Holding torque depends on motor body length and winding configuration. Current NEMA 17 models in this series range from approximately 1.8 to 8.7 kg·cm, or about 18 to 85 N·cm.
Can a NEMA 17 stepper motor use a gearbox?
Yes. NEMA 17 stepper motors can be combined with planetary, worm or parallel shaft gearboxes for applications requiring higher output torque, lower output speed or a different mechanical transmission layout.
Can a NEMA 17 stepper motor use an encoder?
Yes. Encoder options can be integrated with NEMA 17 stepper motors for position feedback and closed-loop motion-control applications.
What shaft options are available for NEMA 17 stepper motors?
Available options include single shaft, dual shaft, D-shaft, custom shaft dimensions and integrated lead screw configurations.
Can NEMA 17 stepper motors be customized?
Yes. Motor body length, step angle, winding, phase current, shaft dimensions, cable length, connector type, lead screw, gearbox and encoder configurations can be customized according to OEM requirements.
Request a Custom NEMA 17 Stepper Motor Quote
Send your required motor body length, step angle, holding torque, phase current, shaft dimensions, cable length, connector type and gearbox or encoder requirements. Kechen Motor can help select an existing NEMA 17 stepper motor or develop a customized configuration for your OEM application.
