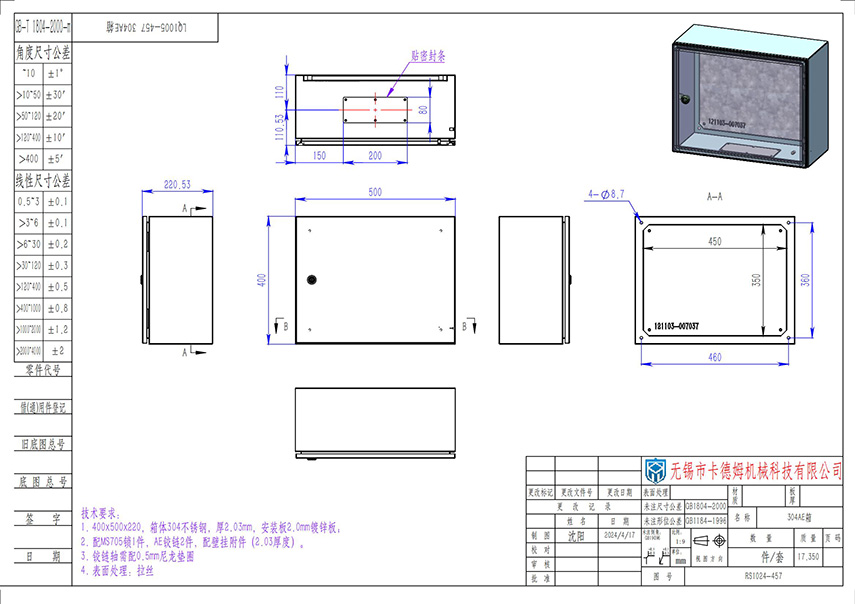

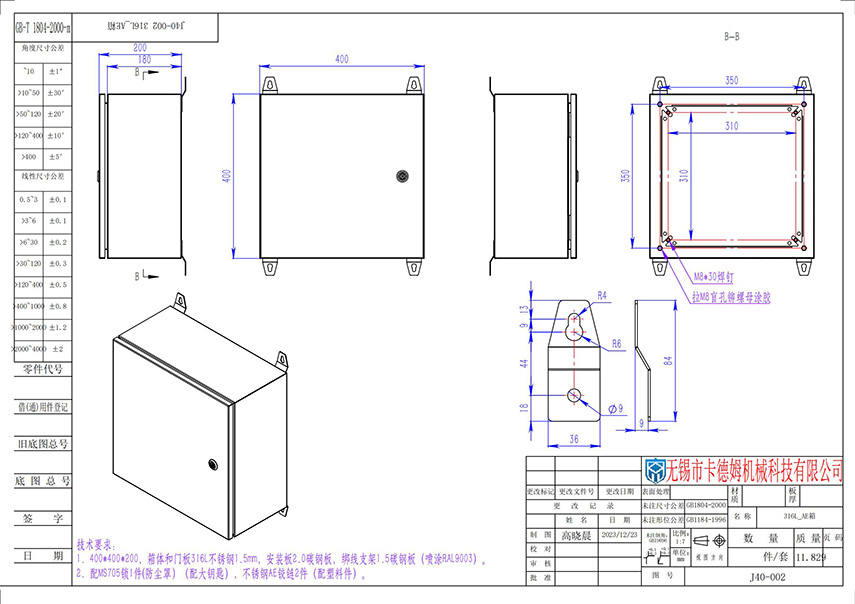

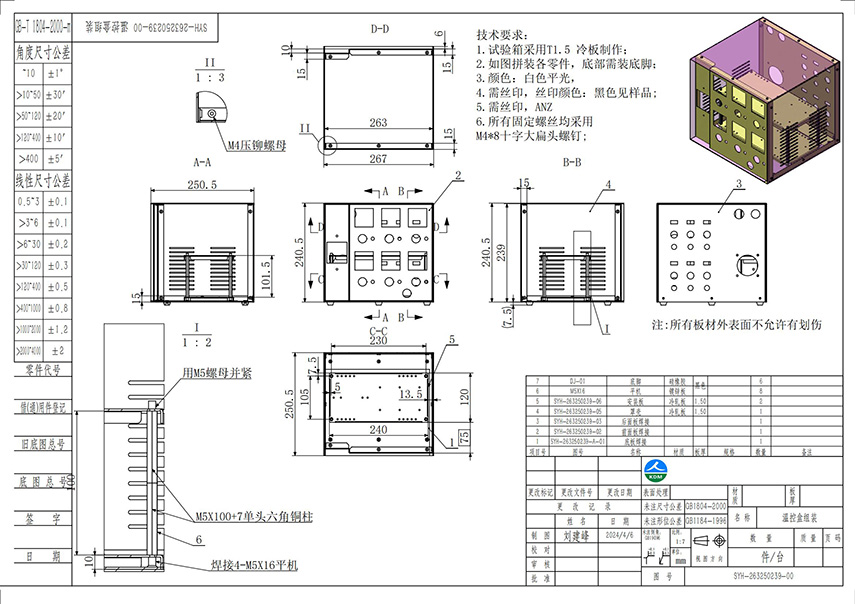

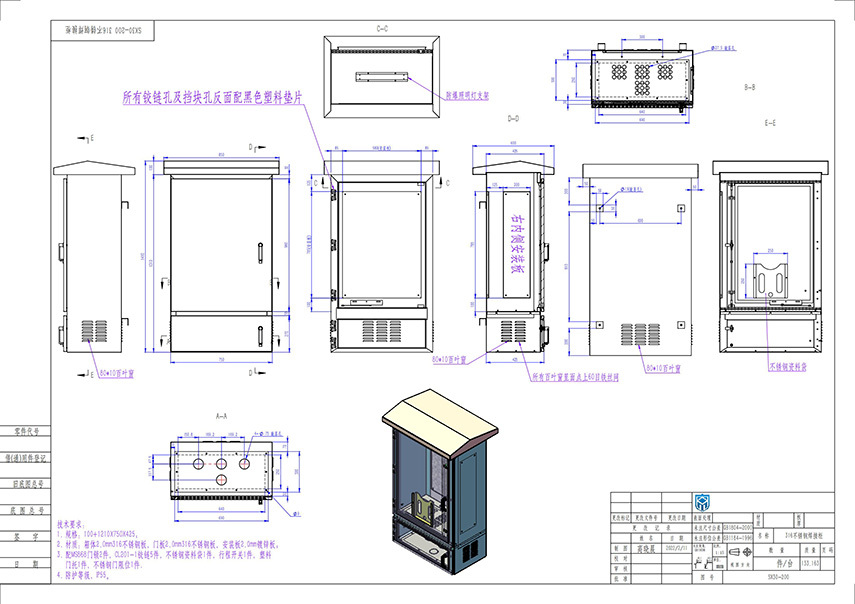

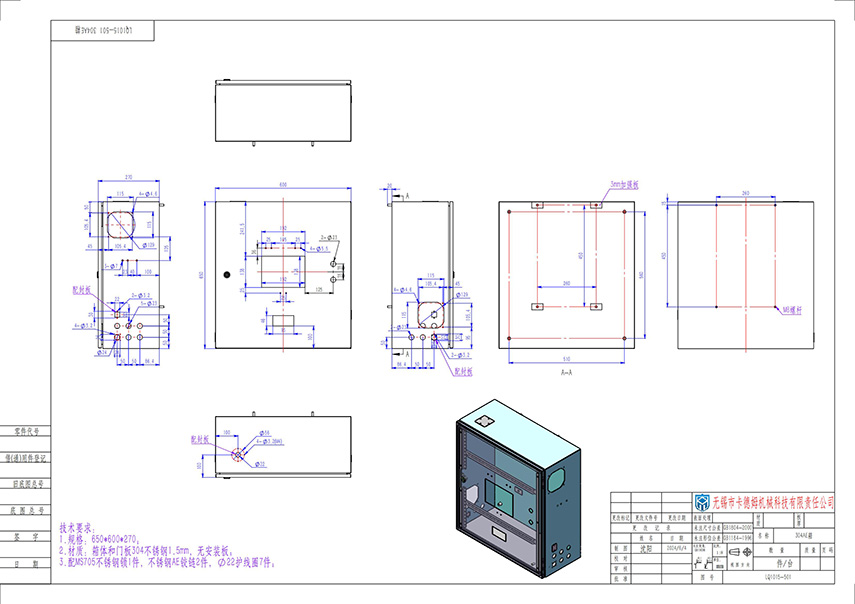

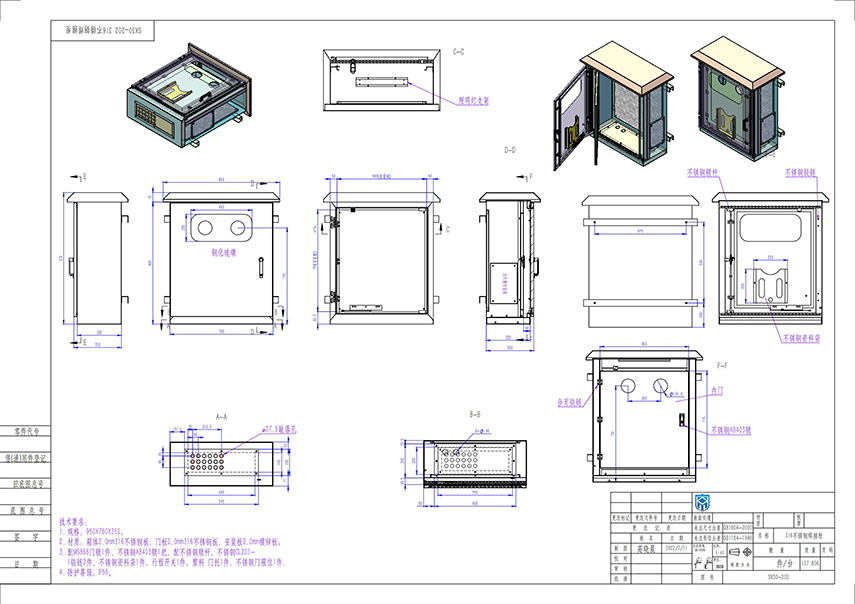

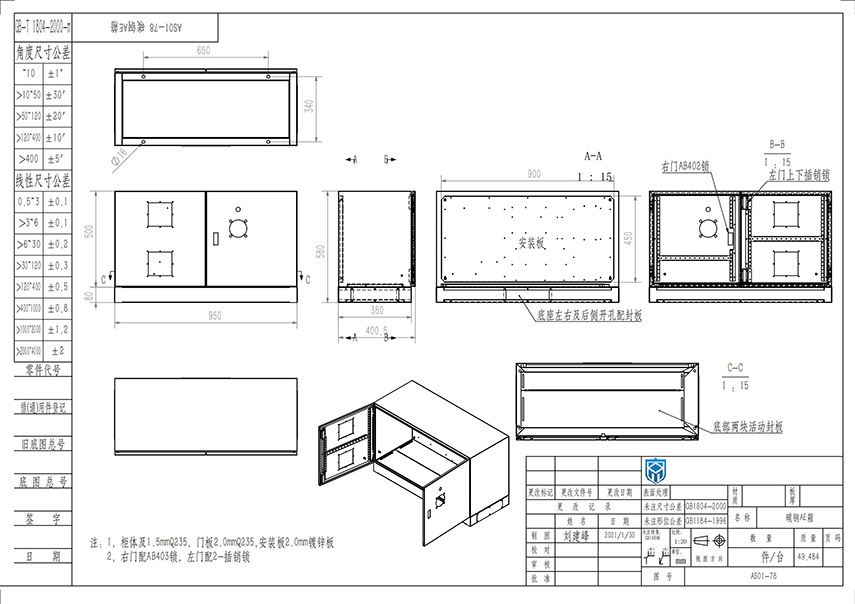

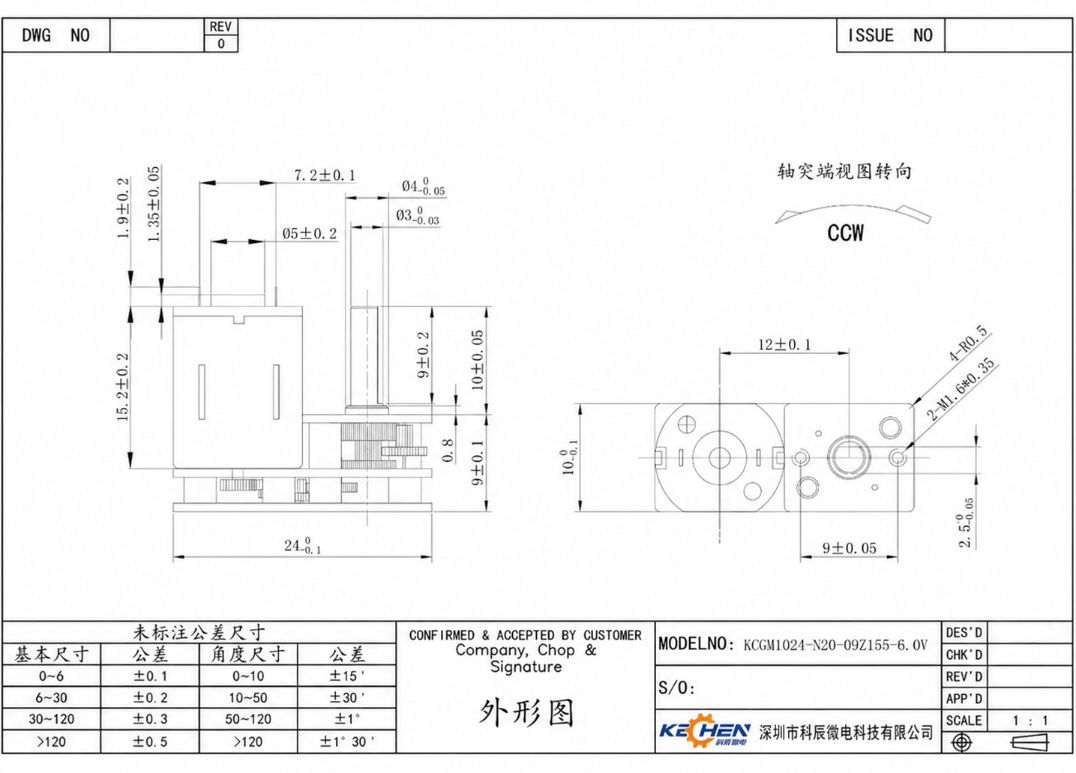

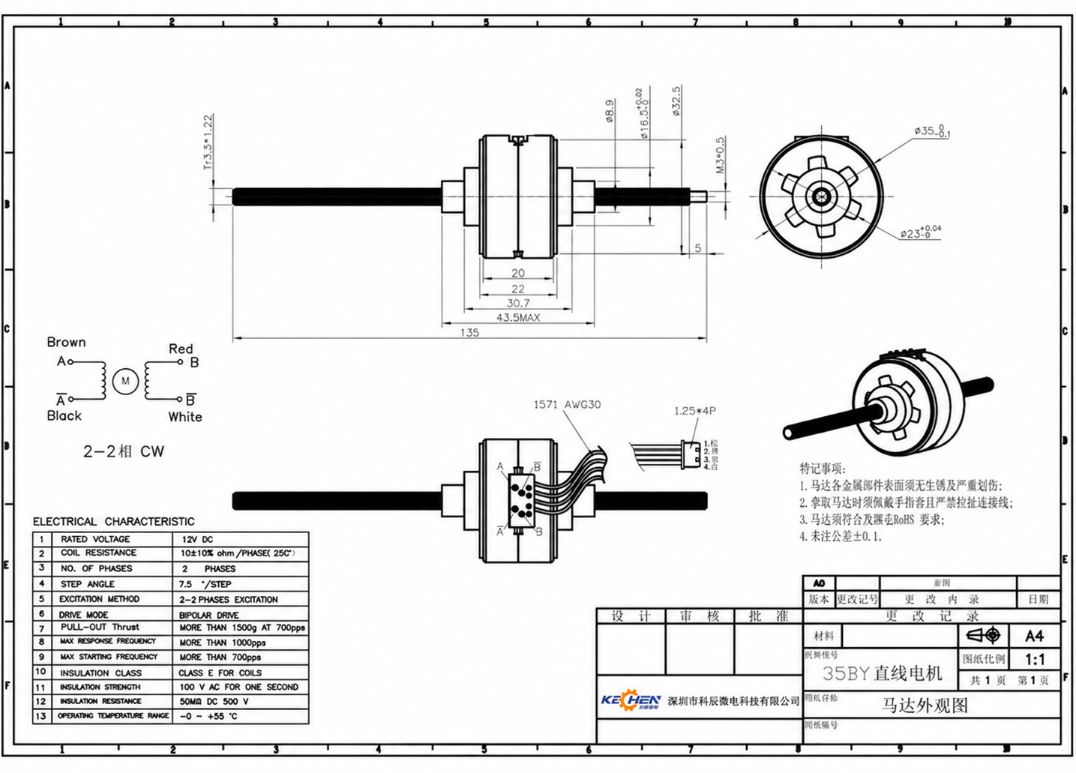

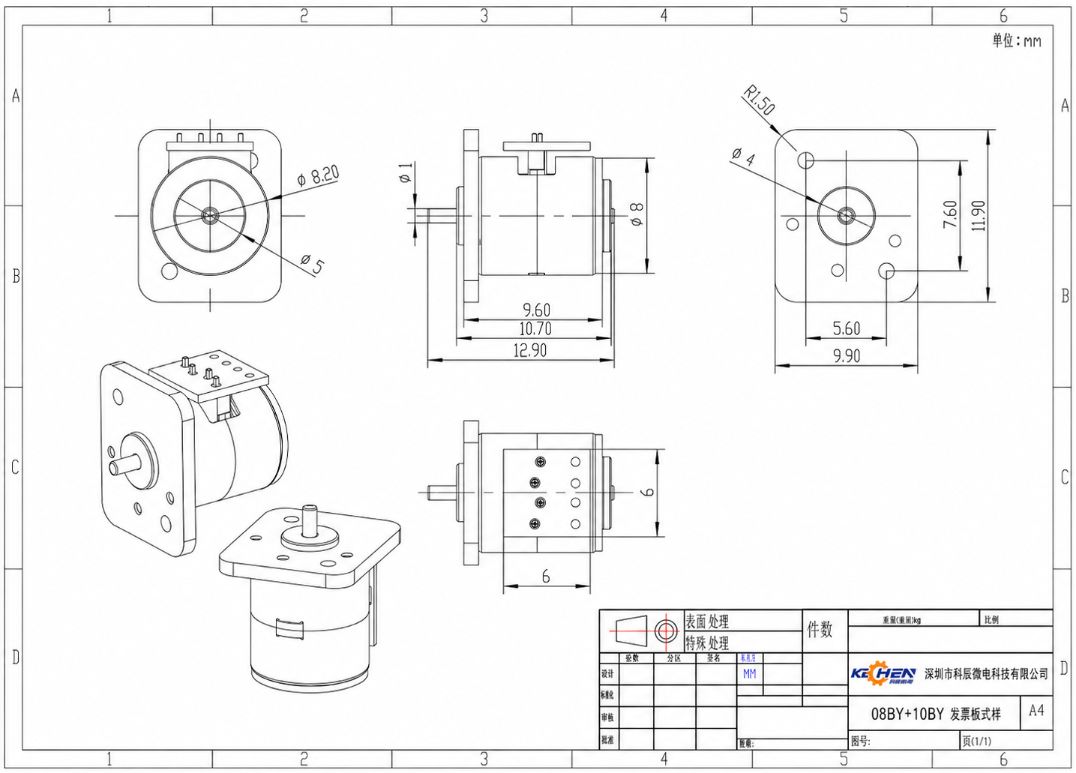

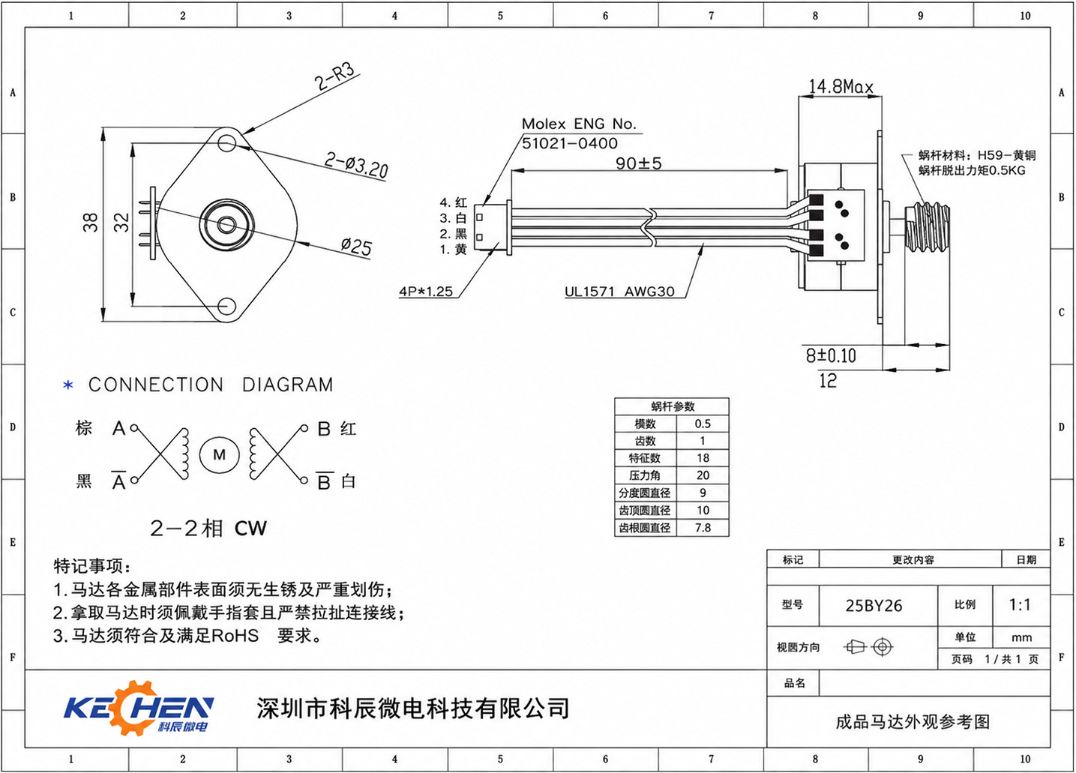

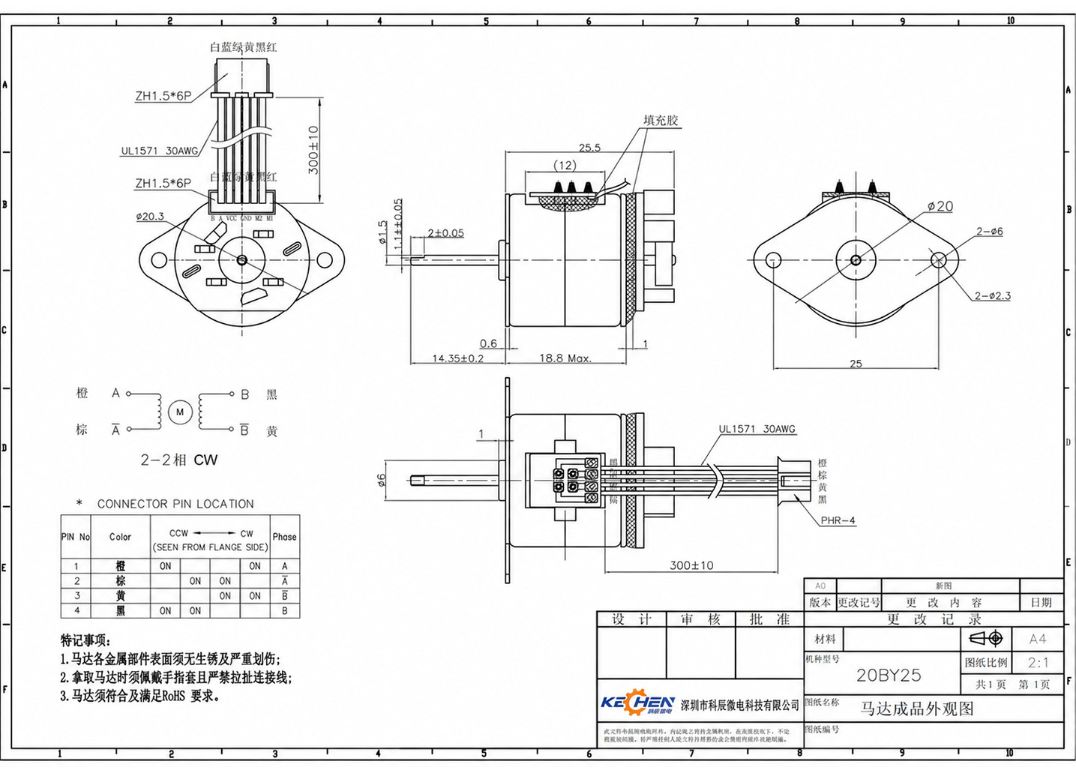

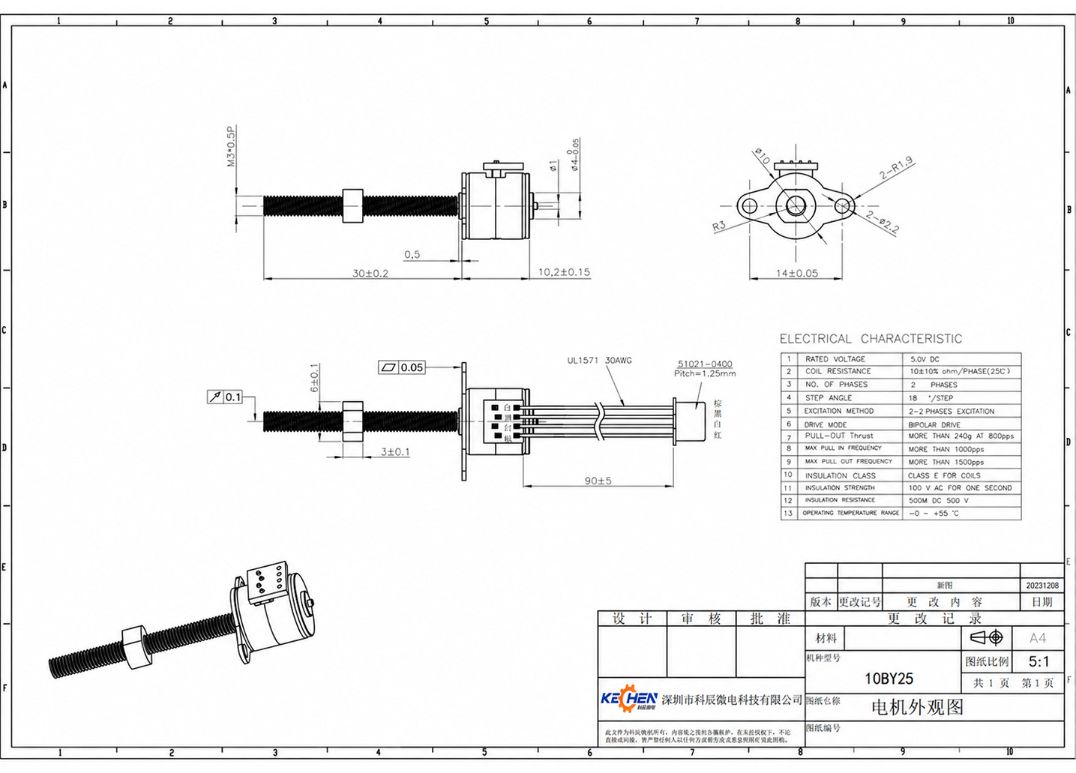

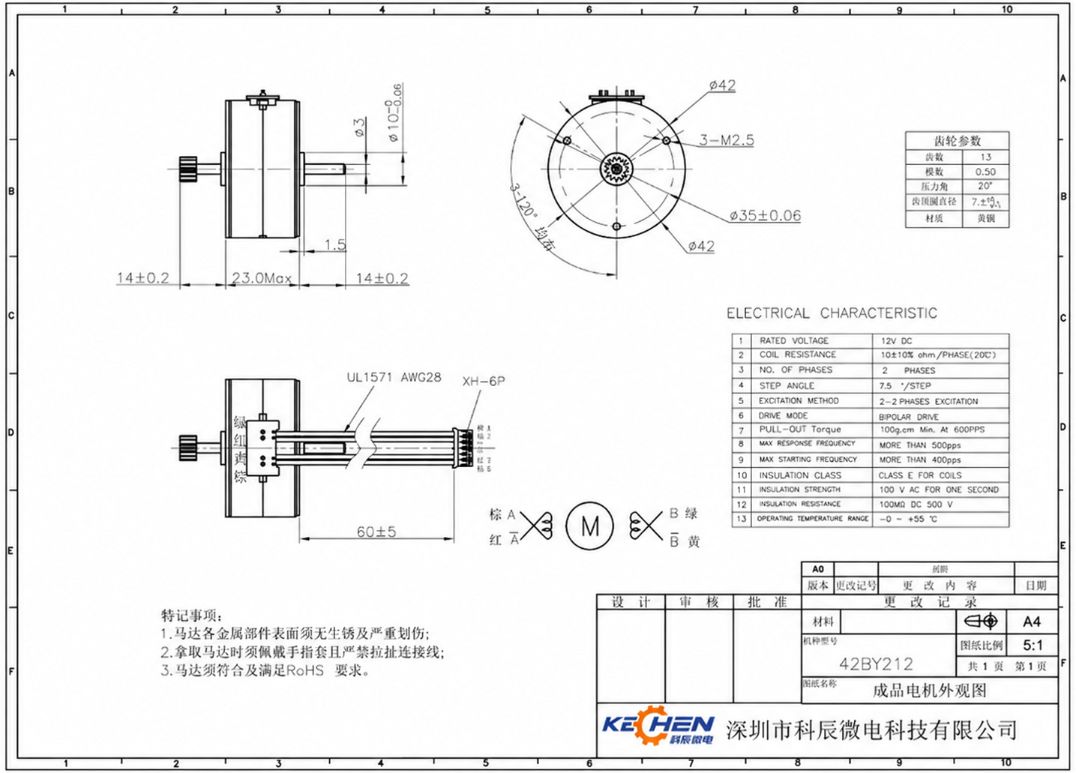

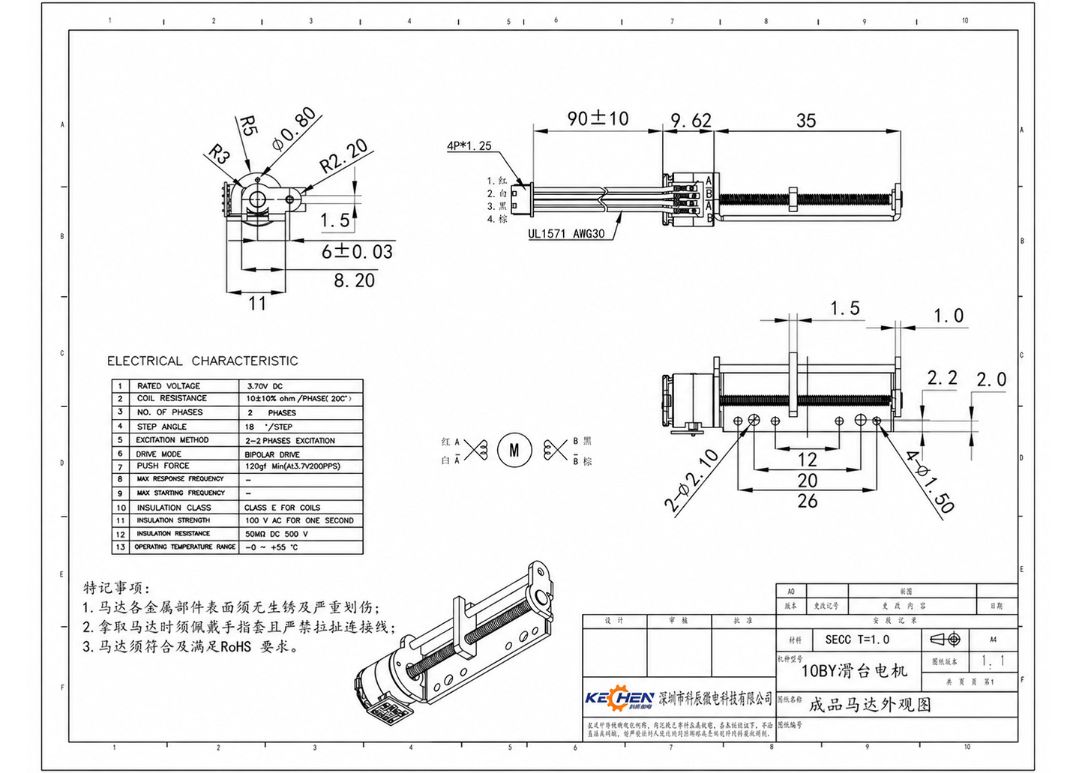

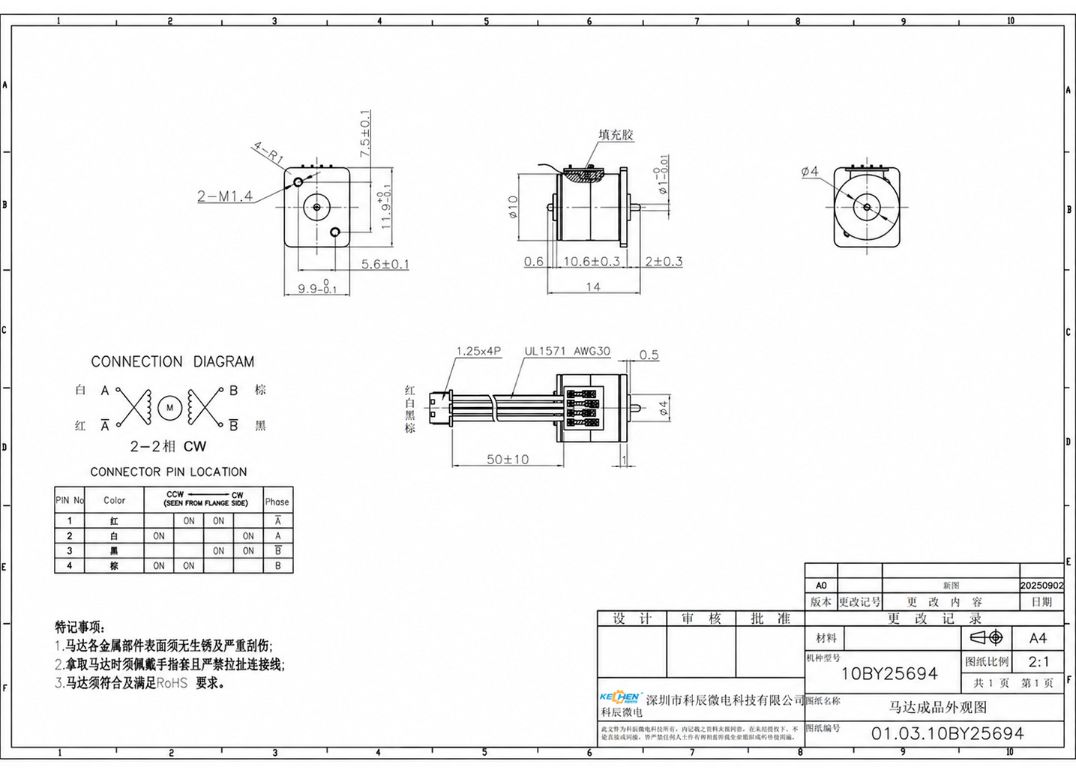

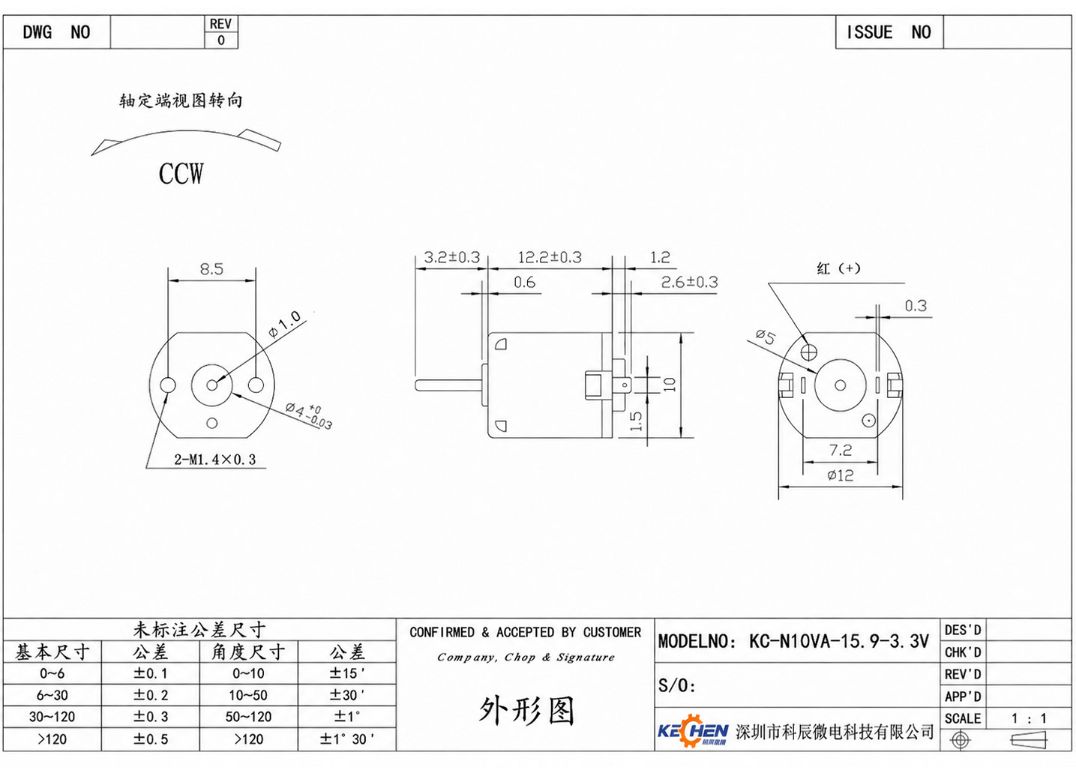

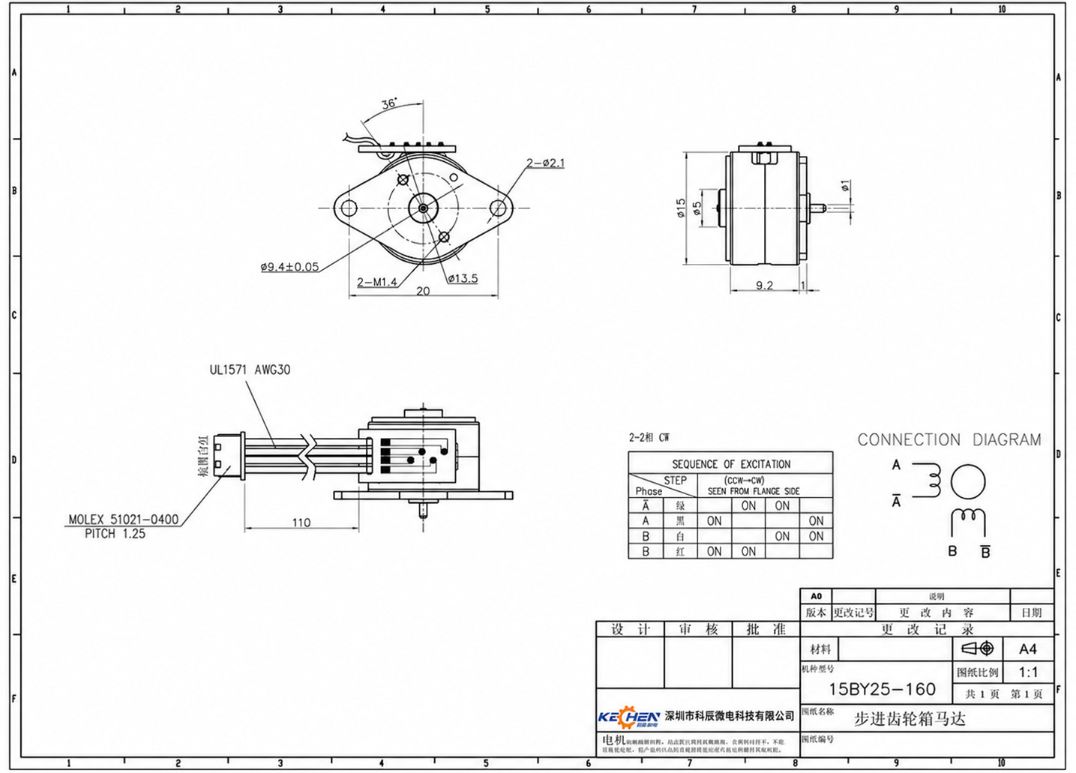

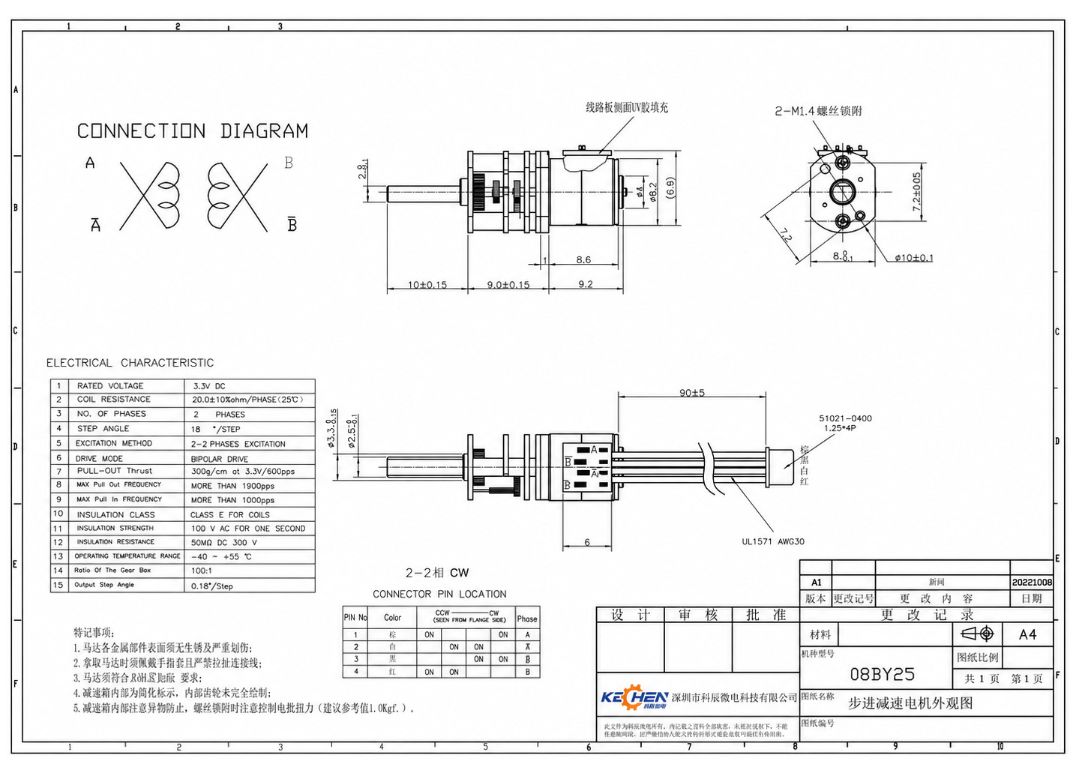

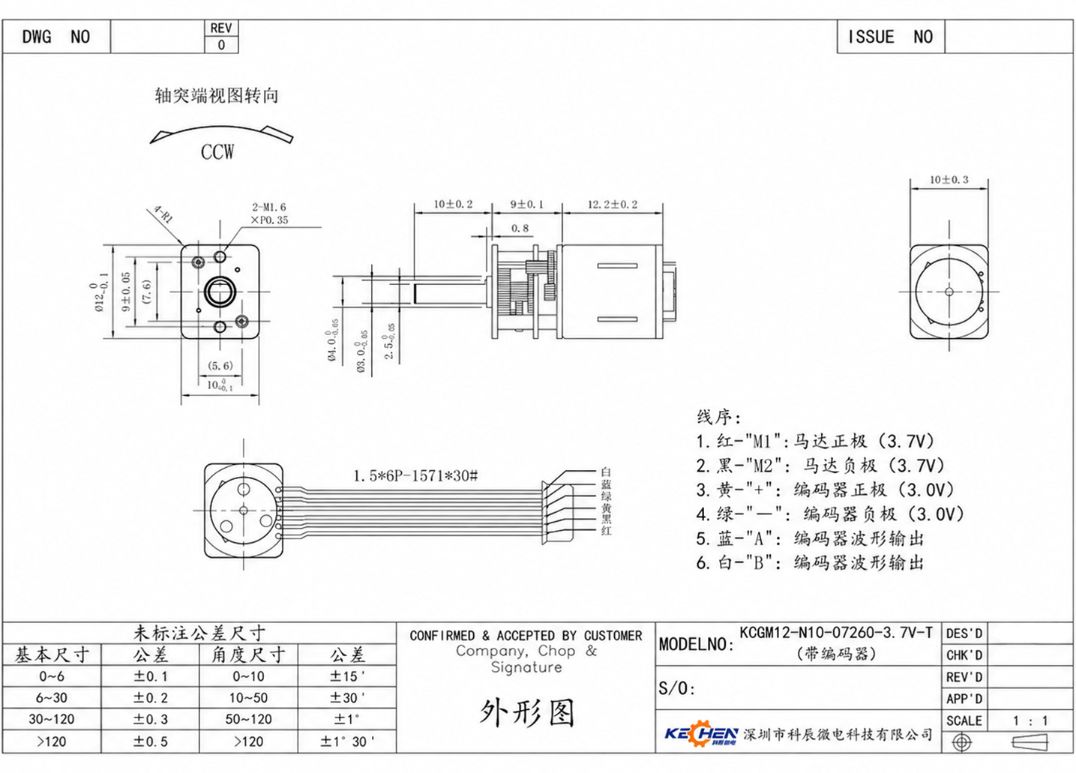

Micro Motor Technical Drawing Examples

Kechen Motor engineers can design your motor and enclosure configurations based on your technical drawings, photos, or draft requirements. During the design process, we evaluate and verify critical performance metrics—including rated speed (RPM), torque, operational noise, and service life—to ensure technical alignment with your application. We provide final documentation in PDF, DWG, and STP formats, enabling you to review precise specifications and mechanical fitment before manufacturing begins.
