Linear Stepper Motor
Integrated linear guide rail and slider for high-load stability.
Frame diameters from 8mm to 42mm for space-constrained assemblies.
Effective stroke lengths customizable to specific application requirements.
Standard and customized mounting holes on the slider for easy payload integration.
Precision-rolled lead screws for smooth and consistent linear travel.
Repeatable positioning accuracy within ±0.05mm.
Kechen Motor – Linear Stepper Motor Manufacturer in China
Kechen Motor engineers integrated linear slide actuators that combine a stepper motor with a precision guide system. By mounting the slider directly onto a stabilized rail, we eliminate the alignment challenges often associated with separate components. As a manufacturer focused on the B2B sector, we provide modular designs that allow for quick integration into larger automated systems. These stages are built to handle both axial thrust and radial moments, ensuring that the slider remains stable throughout its entire stroke length.
Our technical approach centers on the precision machining of the internal lead screw and the alignment of the guide assembly. By maintaining tight tolerances during the manufacturing of the screw-to-nut interface, we minimize axial play and ensure consistent step accuracy. Whether your application requires the simplicity of a permanent magnet (PM) motor or the high resolution of a hybrid stepper, our platforms are designed to operate under 24V DC systems, making them suitable for low-voltage industrial control environments.
Customization is a core pillar of our OEM/ODM service. We recognize that standard specifications often fall short of specific engineering requirements. Kechen Motor provides modifications for stroke length, screw pitch, and slider geometry. Our engineering team assists in calculating radial load limits and axial thrust requirements to ensure the motor selected is capable of sustained performance throughout its intended duty cycle.
| Parameter | Hybrid Linear Slide Actuator | PM Linear Slide Actuator |
|---|---|---|
| Motor Technology | Hybrid (1.8° / 0.9° Step Angle) | Permanent Magnet (7.5° / 15° / 18° Step Angle) |
| Frame Size Range | NEMA 8, NEMA 11, NEMA 17 | Φ8mm, Φ10mm, Φ15mm, Φ20mm, Φ25mm, Φ35mm, Φ42mm |
| Guide Rail System | Miniature Linear Guide / Dual Rod Guide | Precision Rod Guide / Integrated Slide |
| Slider Material | Anodized Aluminum / Stainless Steel | Engineering Polymer / Aluminum Alloy |
| Effective Stroke | 10mm – 300mm (Customizable) | 10mm – 150mm (Customizable) |
| Lead Screw Pitch | 0.5mm / 1.0mm / 2.0mm / 4.0mm / 8.0mm | 0.5mm / 1.0mm / 2.0mm / 3.0mm |
| Repeatability | ±0.02mm to ±0.05mm | ±0.05mm to ±0.1mm |
| Positioning Performance | High accuracy, low step loss (closed‑loop supported) | Good positioning stability for mid‑accuracy applications |
| Input Voltage | 12V – 24V DC | 5V – 24V DC |
| Lubrication | Industrial Grease (Bronze Nut Compatible) | Dry Lubricant / Self-Lubricating Nut |
| Operating Temp | -10°C to +50°C (Standard Industrial) | -10°C to +50°C (Standard Industrial) |
| Customization | Stroke, Pitch, Encoder, Mounting Holes | Stroke, Pitch, Bracket, Connector |

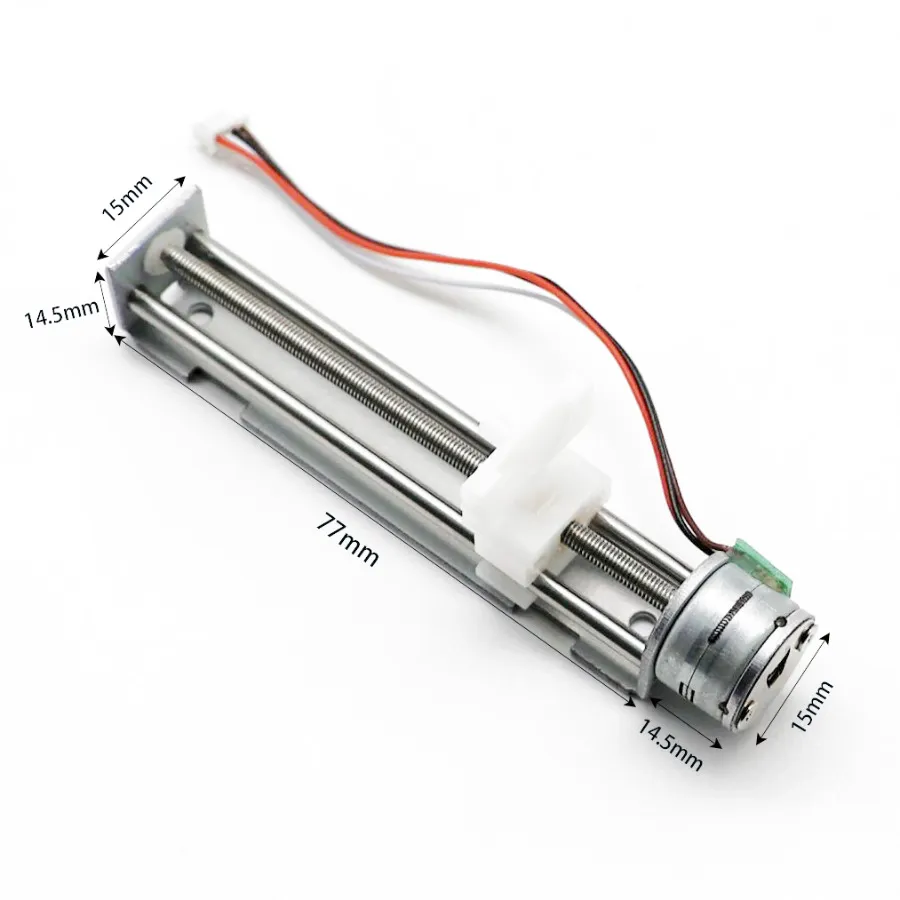

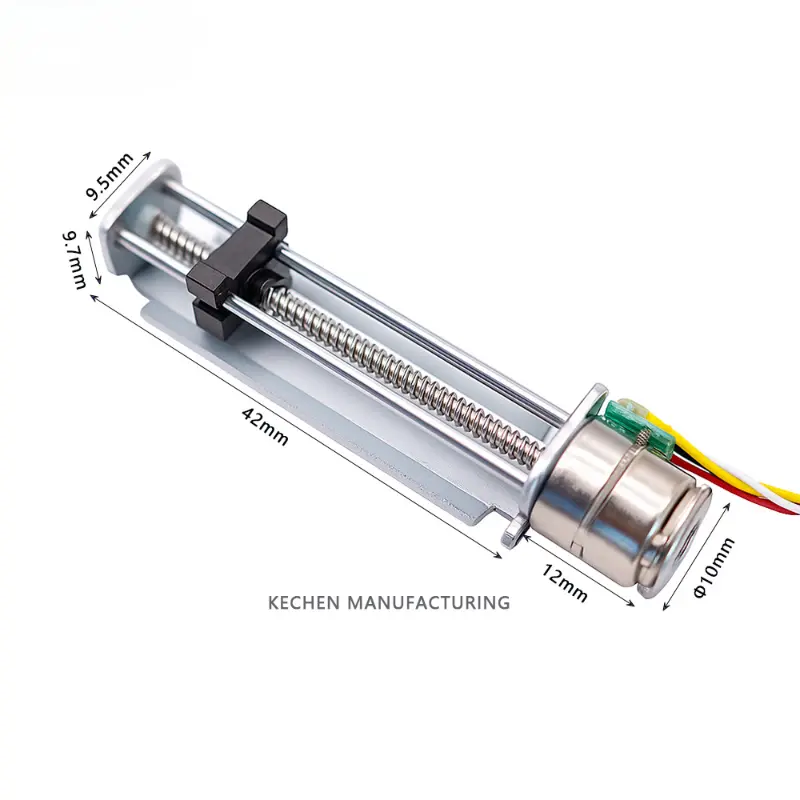

Kechen Linear Stepper Motor Products
Kechen Linear Stepper Motor 3D Design
Mechanical Rigidity and Precision: Kechen Motor Linear Slide Characteristics
The operational reliability of a linear slide actuator is fundamentally determined by its mechanical rigidity and the management of internal friction. Kechen Motor slide assemblies utilize a reinforced base platform—typically constructed from anodized aluminum or stainless steel—to ensure zero deflection when subjected to cantilevered or axial loads. By maintaining a high degree of structural stiffness, the actuator prevents misalignment between the lead screw and the guide rails, which is essential for achieving long-term positioning repeatability in automated production lines.
Precision in linear motion is also a result of optimized friction coefficients between the moving slider and the stationary rail. We employ specialized nut materials, such as high-performance self-lubricating polymers or precision-machined bronze, to balance wear resistance with smooth movement. This selection process is critical for maintaining consistent transmission efficiency; it ensures that the torque delivered by the motor is effectively converted into linear thrust without significant energy loss through heat or vibration.
Thermal stability is an additional engineering focus. During high-duty cycle operations, internal components undergo thermal expansion which can affect tolerances. Our designs incorporate thermally matched material pairs (e.g., bronze nut with steel screw, or polymer nut with aluminum rail) and optimized winding configurations to minimize heat buildup. This balances differential expansion, protects the integrity of the lubricant, and prevents binding during continuous operation, ensuring that the slide maintains its specified repeatability even under extended duty cycles.
Broad Applications of Kechen Motor Linear Slide Actuators
- Medical Diagnostics: Precise movement of reagent trays and sample scanning systems in automated analyzers requiring sterile, repeatable movement.
- Electronics Assembly: Fine-pitch positioning for solder paste inspection and component placement heads in SMT lines.
- Laboratory Automation: X-Y-Z Cartesian robot axis for liquid handling, microplate manipulation, and automated pipetting systems.
- Optical Equipment: Precision focus adjustment, filter wheel positioning, and laser alignment in imaging systems.
- Automotive Industry: Actuation for interior adjustment mechanisms and electronic sensor positioning for ADAS calibration.
- Smart Home Systems: Motorized locking systems and precise valve control for intelligent fluid management.
- Agriculture & Robotics: Linear movement for seed distribution sensors and automated sorting arms in precision farming.
Versatile Mounting and Quality Control Systems
Kechen Motor provides a range of mounting configurations to simplify the integration process for system designers. Options include standard NEMA-compatible flanges, custom hole patterns on the slider plate, and threaded housings for direct installation. This flexibility ensures that the actuators can be adapted to various mechanical environments without extensive redesign of the host machine.
Our quality assurance protocol focuses on the dimensional stability and functional reliability of the slide assembly. We implement rigorous batch testing for stroke consistency, noise levels, and load-carrying capacity to ensure that each production run adheres to engineering tolerances. By maintaining strict control over raw material sourcing and final assembly alignment, we ensure that our actuators meet the precision requirements of industrial automation. Our adherence to CE and RoHS standards further validates our commitment to international safety and environmental regulations.
