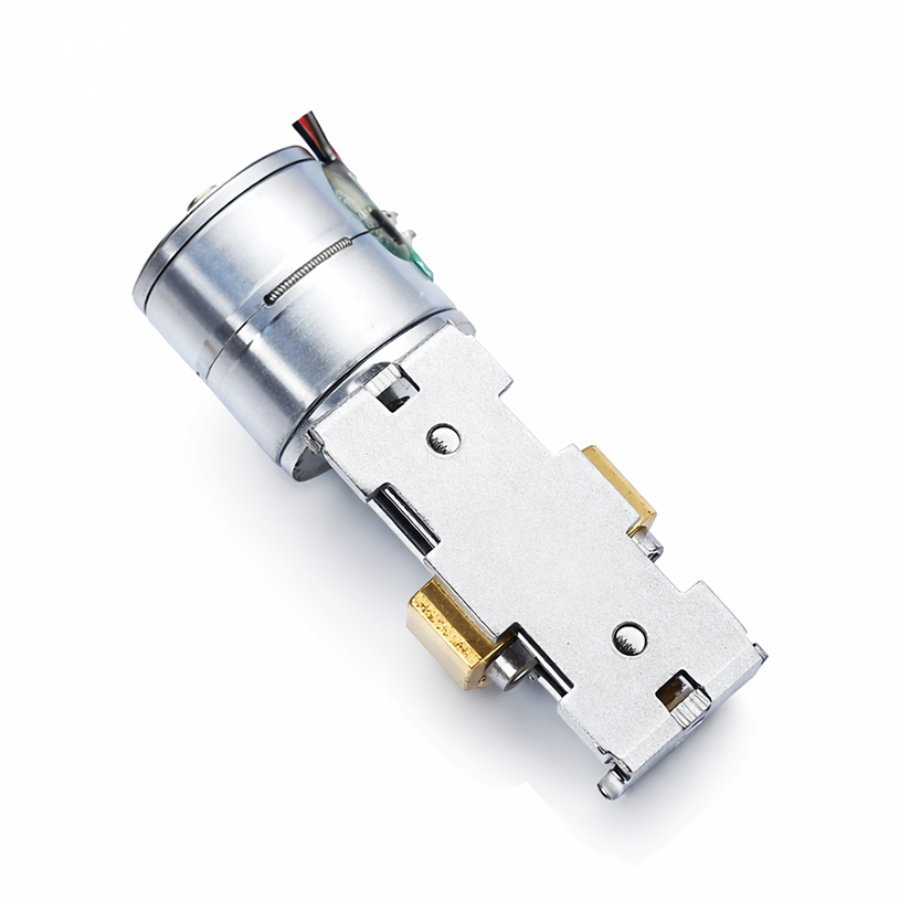

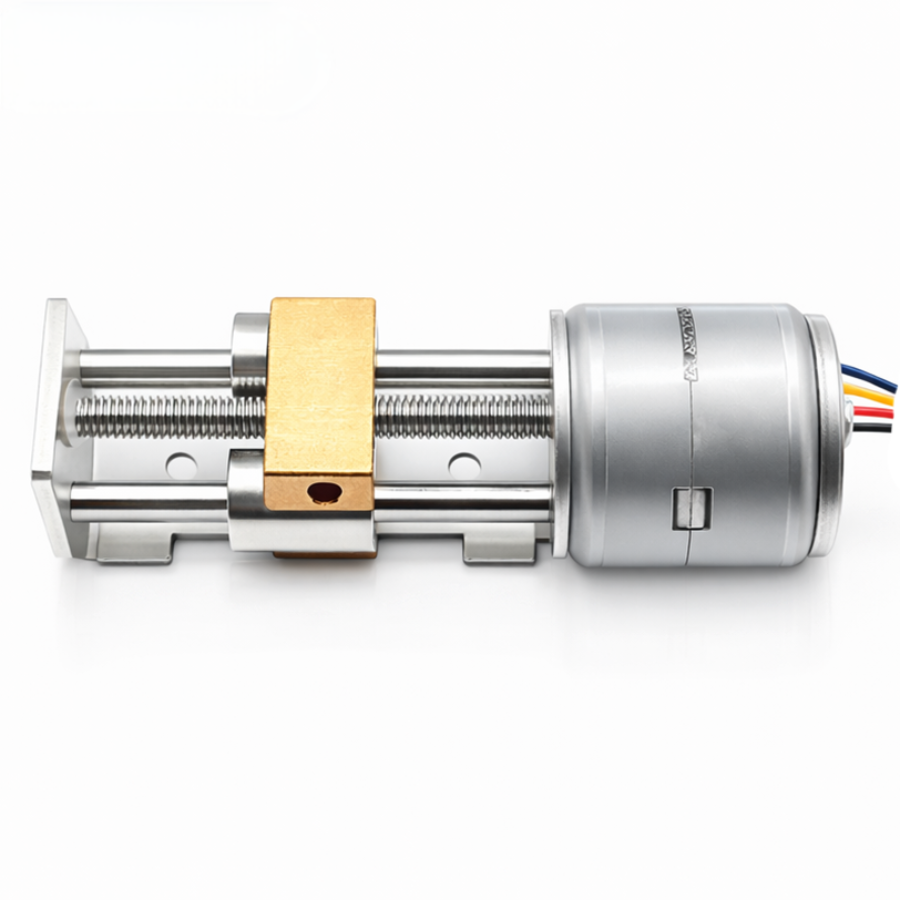

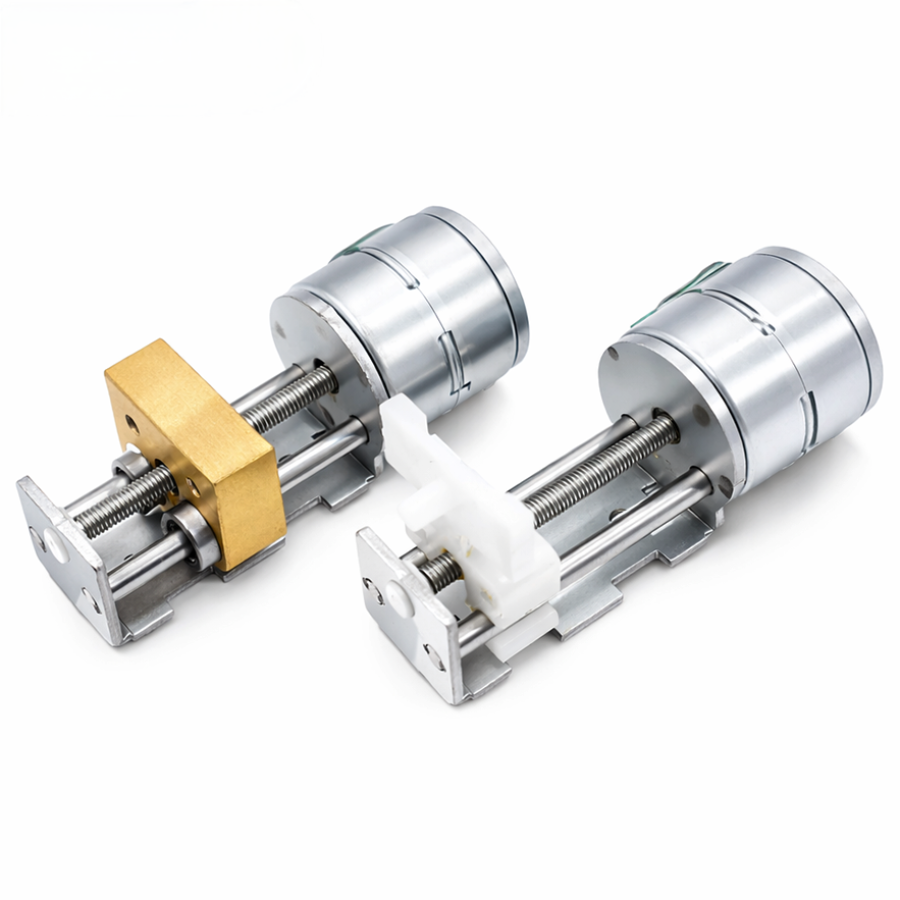

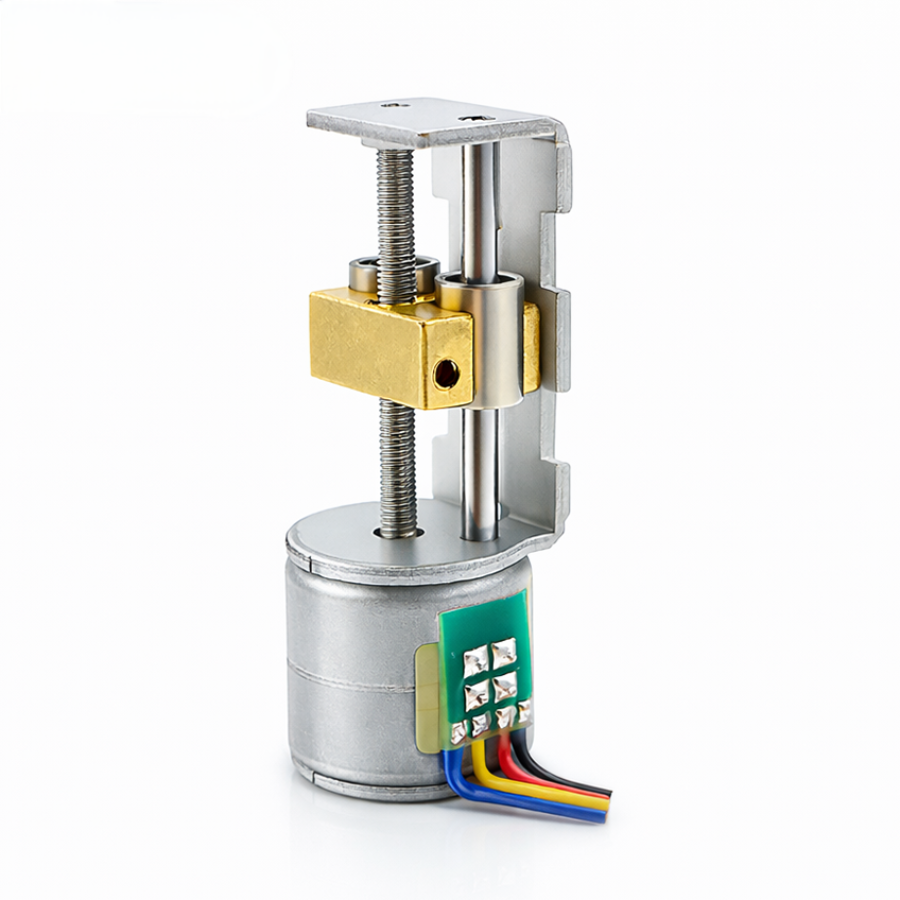

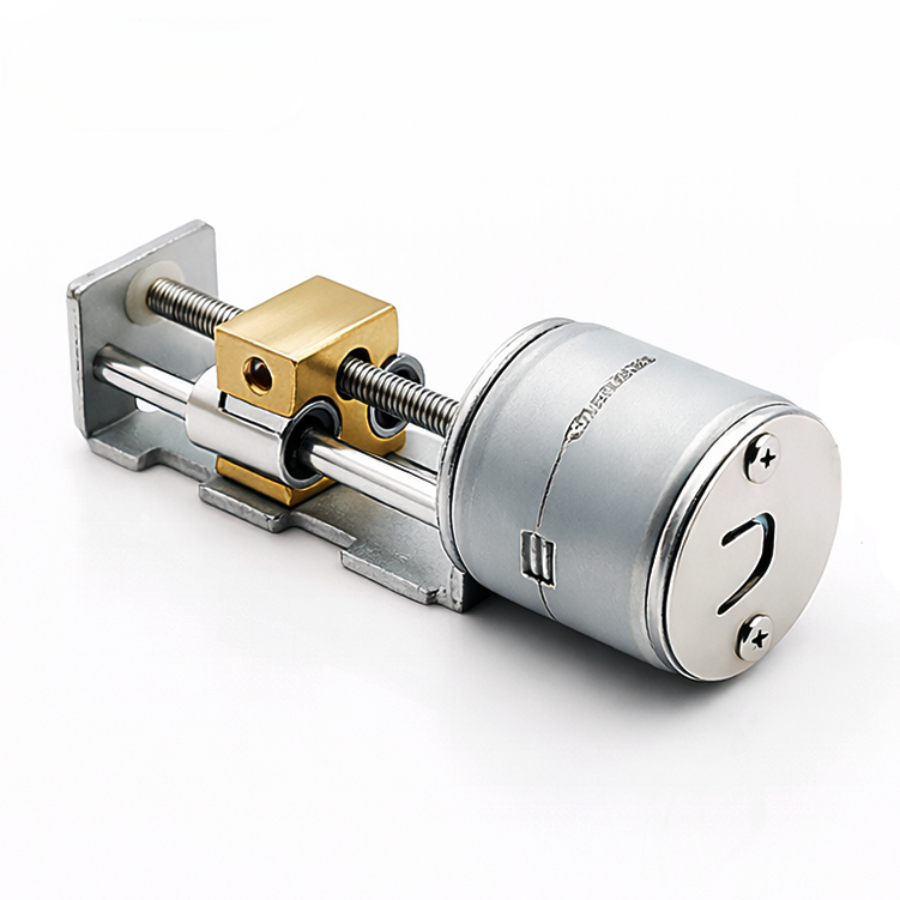

KC-20BY-32mm Linear Stepper Motor with M3 Lead Screw and Slider – 2-Phase 12V DC
Applications: Precision medical instruments, automated drug delivery systems, lab liquid handling, diagnostic equipment, optical lens positioning, security PTZ cameras, smart door locks, access control actuators, valve and flow control, HVAC damper control, small-scale CNC actuators, electronic parking brakes (EPB), ticket dispensing modules, ATM card readers, and portable robotics.
Inquiry NowKC-20BY-32mm Linear Stepper Motor Performance Specifications
| Electrical Parameter | Technical Specification |
|---|---|
| Rated Voltage | 12 V DC (Drive IC L6219) |
| Current Per Phase | 600 mA/phase (1000 PPS) |
| Coil Resistance | 20 ± 10% Ω/phase (25 °C) |
| Pull-out Thrust | More than 1 000 g at 700 PPS |
| Max Response Frequency | More than 1 300 PPS |
| Max Starting Frequency | More than 1 000 PPS |
| Insulation Class | Class E for coils |
| Insulation Strength | 100 V AC for one second |
| Insulation Resistance | 50 MΩ at 500 V DC |
| Operating Temperature Range | 0 °C to +55 °C |
KC-20BY32 Series Mechanical Data and Model Variants
* Performance measured at 800 PPS
| Model Number | Step Angle | Voltage | Thrust | Shaft Pitch | Noise |
|---|---|---|---|---|---|
| KC-20BY32001 | 18°/step | 9 V DC | 800 g | M3 × 0.5 P | ≤ 50 dB |
| KC-20BY32002 | 18°/step | 12 V DC | 1 400 g | M3 × 0.5 P | ≤ 50 dB |
| KC-20BY32.003 | 18°/step | 12 V DC | 1 000 g | M3 × 0.5 P | ≤ 50 dB |

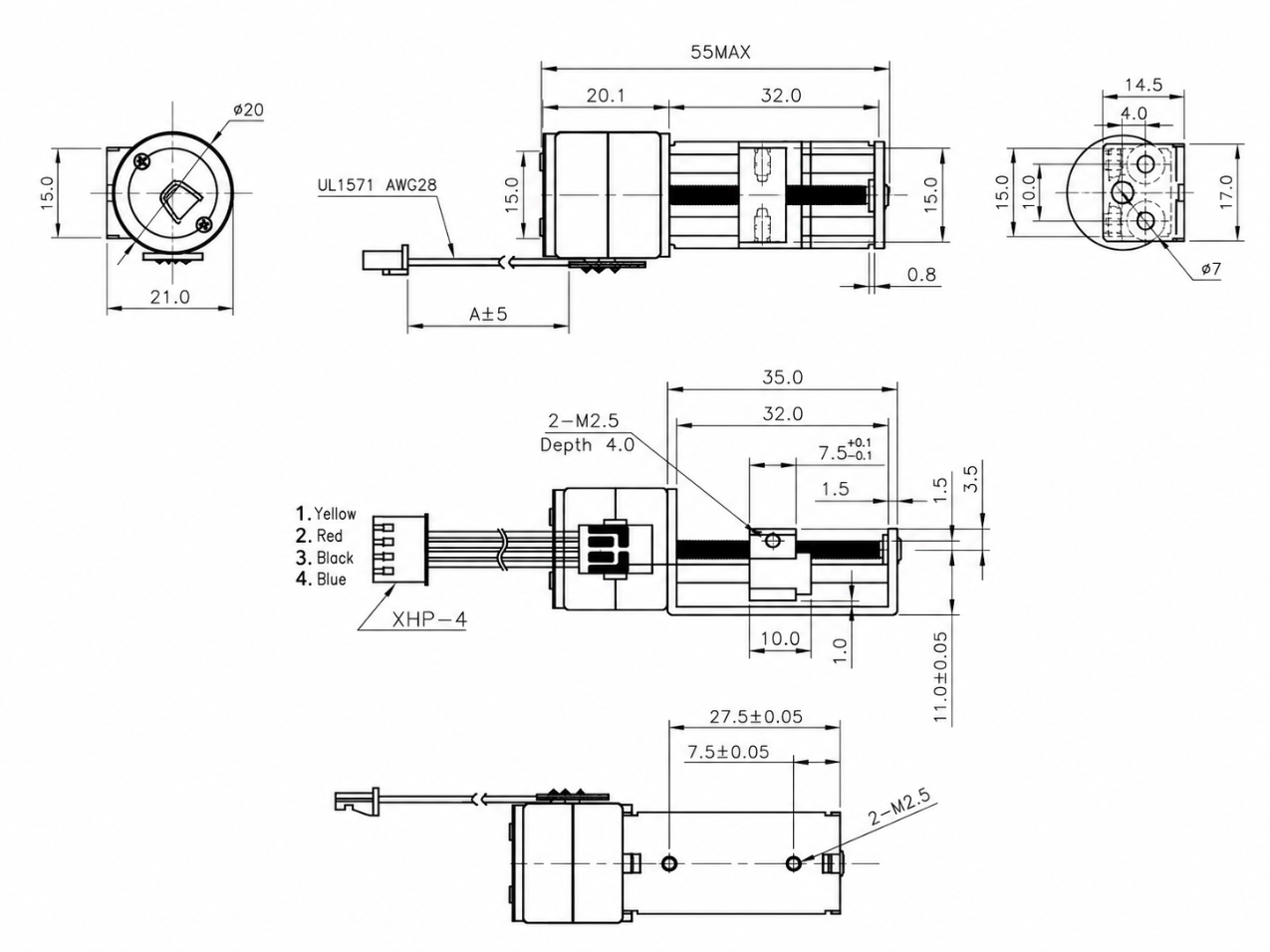

KC-20BY-32mm Technical Dimension Reference
Mechanical specifications for precision integration | Units in mm
KC-20BY32 Linear Motor Performance Advantages
- Precise linear motion: Integrated M3 × 0.5 P lead screw ensures accurate positioning for automation
- Durable construction: SUS303 stainless steel shaft provides excellent wear resistance and long-term stability
- Optimized thrust output: Pull-out thrust exceeding 1 000 g supports heavy-duty mechanical integration
- Compatible electrical design: Bipolar drive mode and 2-phase excitation for seamless system integration
- Safe industrial operation: Class E insulation and 50 MΩ resistance guarantee durable performance in varied environments
- Flexible customization: Shaft length and electrical parameters are adjustable to meet specific engineering requirements
