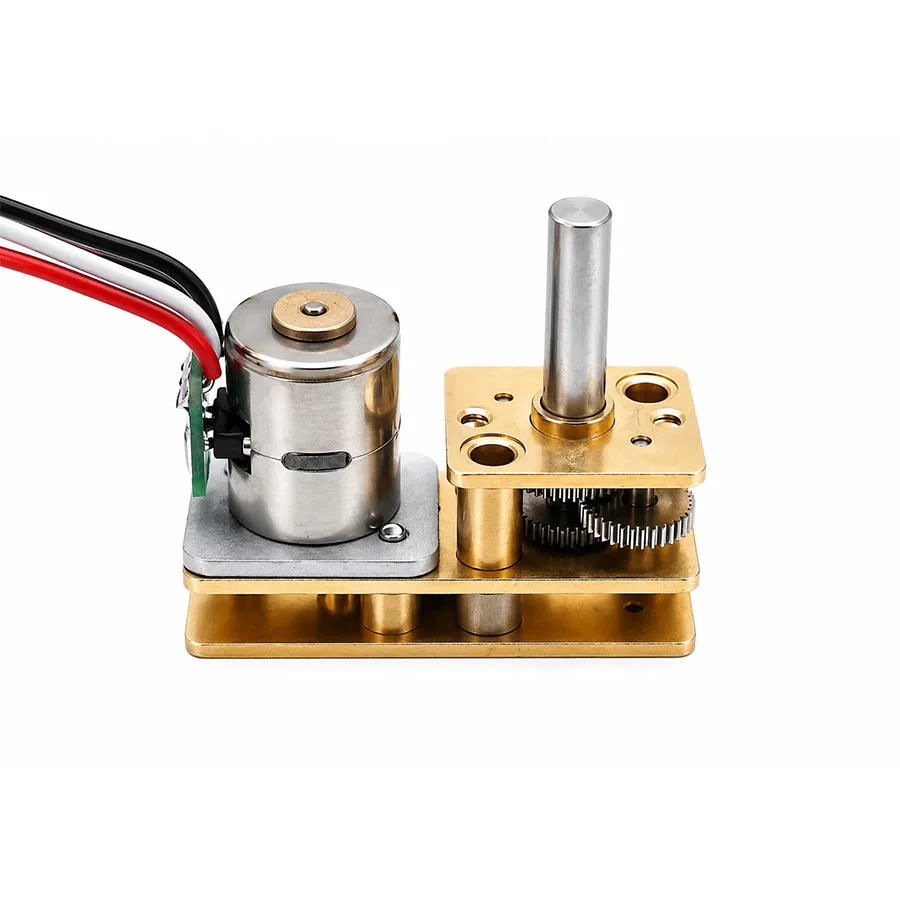

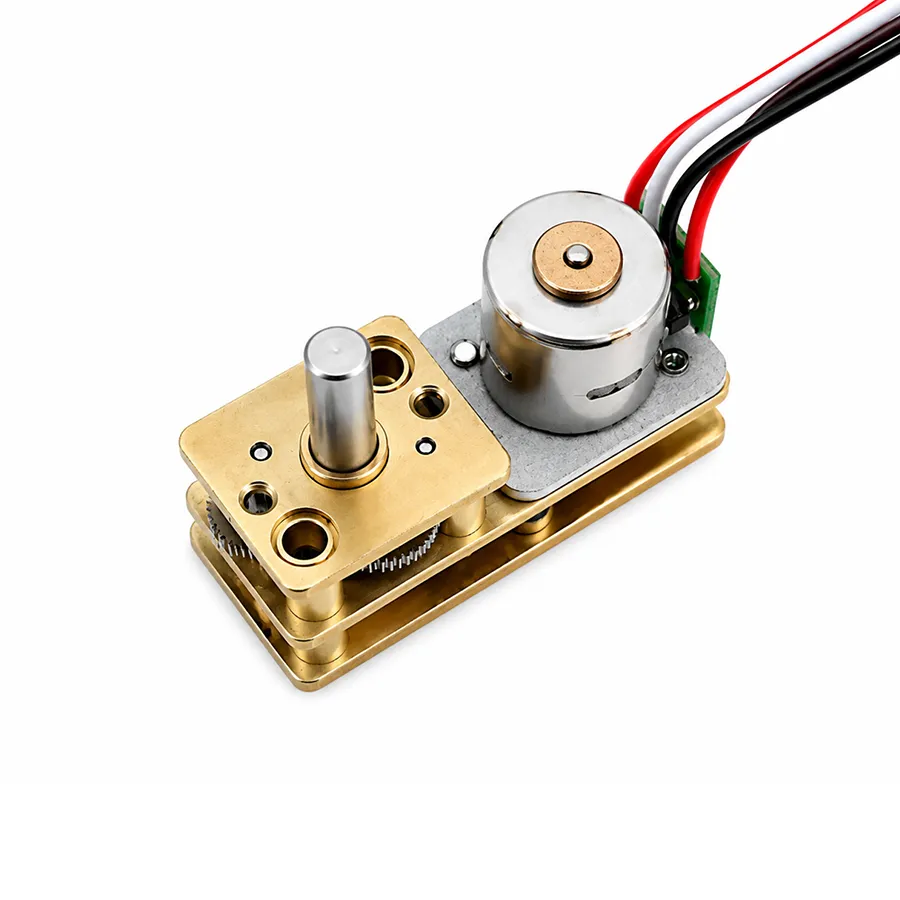

KC-GM1024-08BY 5V DC Micro Geared Stepper Motor with 50:1 Gearbox & 3mm D-Shaft

Technical Specifications
KC-GM1024-08BY
Geared Stepper Motor — Optimized for precise integration and durable torque output
Motor Type
Micro Stepper

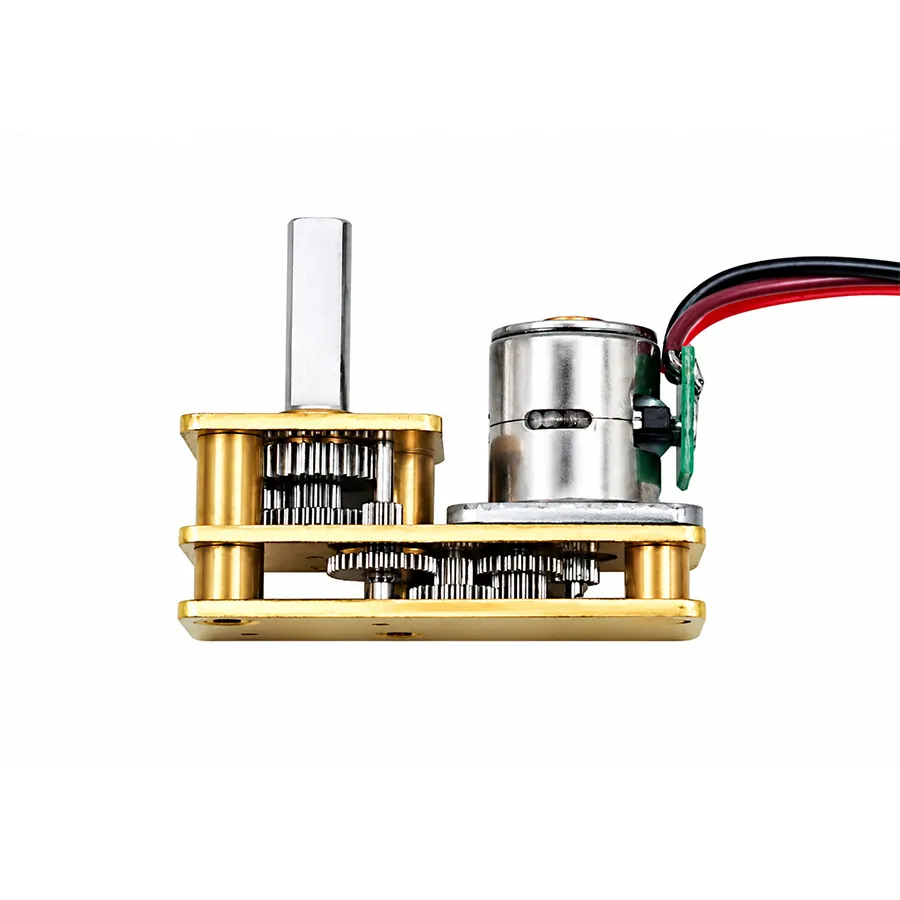

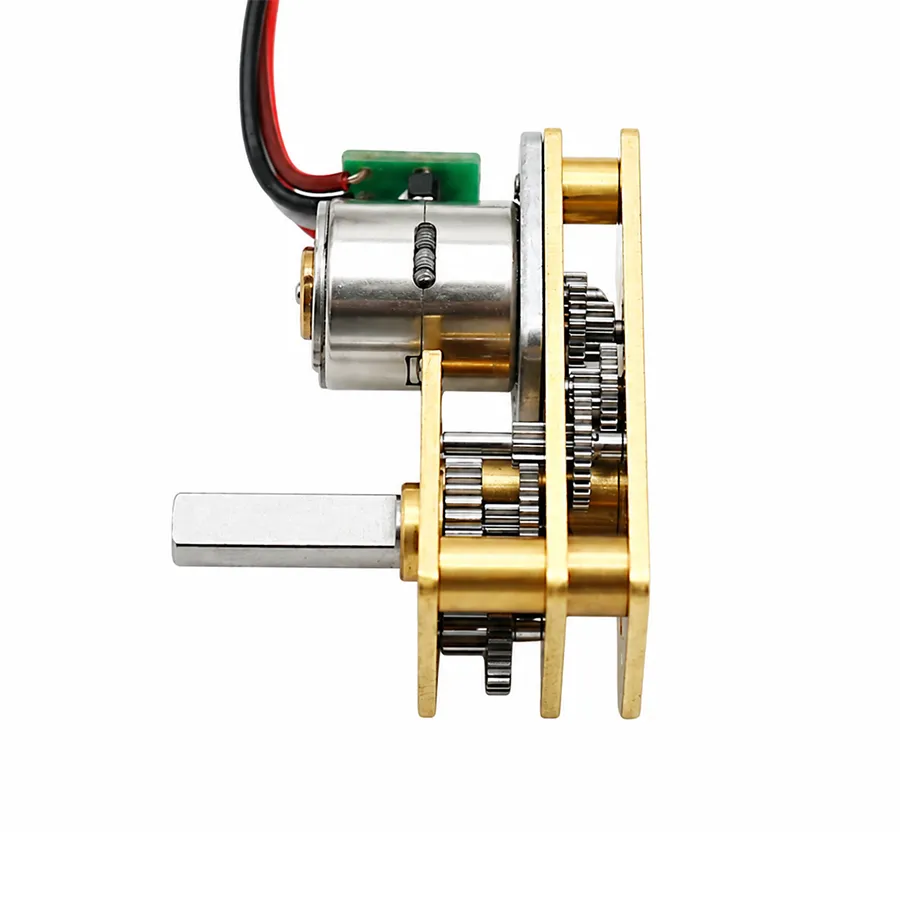

Gearbox Type
Spur Reduction

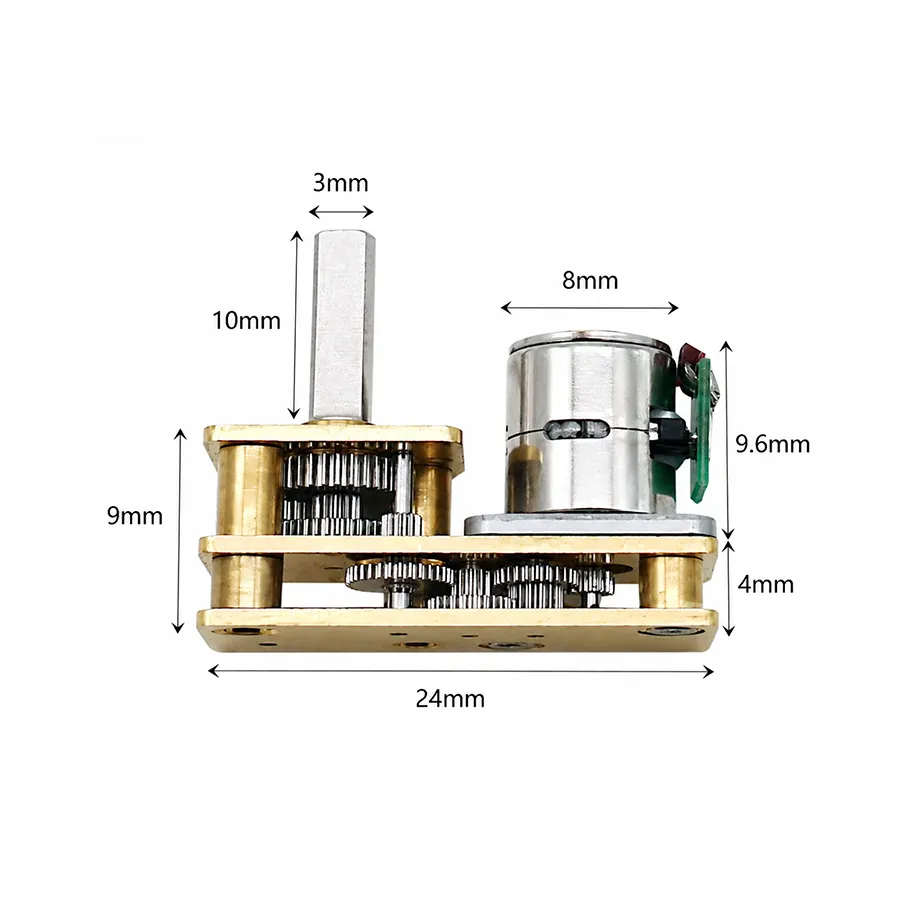

Base Frame
24mm × 9mm
Shaft Type
D-Type Output
Shaft Dimensions
Ø3mm × 10mm
Motor Profile
Ø8mm × 9.6mm
✓ Custom samples: 10-20 days
✓ Bulk order pricing available
✓ ISO 9001, CE & RoHS Compliant
Applications: Medical infusion pumps, lab automation, micro PTZ cameras, precision valve control, smart locks, optical instruments, automated pipettes, laser scanning systems, camera positioning modules, micro fluidic devices, electronic meter calibration, miniature HVAC dampers, handheld stabilizers, compact access control, desktop scanners.
Inquiry Now

KC-GM1024-08BY Electrical Performance Specifications

Parameter Specification
Rated Voltage 5 V DC
Current Per Phase 250 mA / phase
Coil Resistance 20 ± 10% ohm / phase (25 °C)
Number of Phases 2 phases
Excitation Method 2-2 phase excitation
Drive Mode Bipolar drive
Insulation Class Class E for coils
Insulation Strength 100 V AC for one second

KC-GM1024-08BY Mechanical and Gearbox Specifications

Parameter Specification
Gearbox Gear Ratio 50:1
Motor Step Angle 18° / step
Terminal Step Angle 0.36° / step
Pull-out Torque More than 80 g·cm at 500 pps
Max Response Frequency More than 1200 pps
Max Starting Frequency More than 1000 pps
Shaft Integration Design D-type shaft

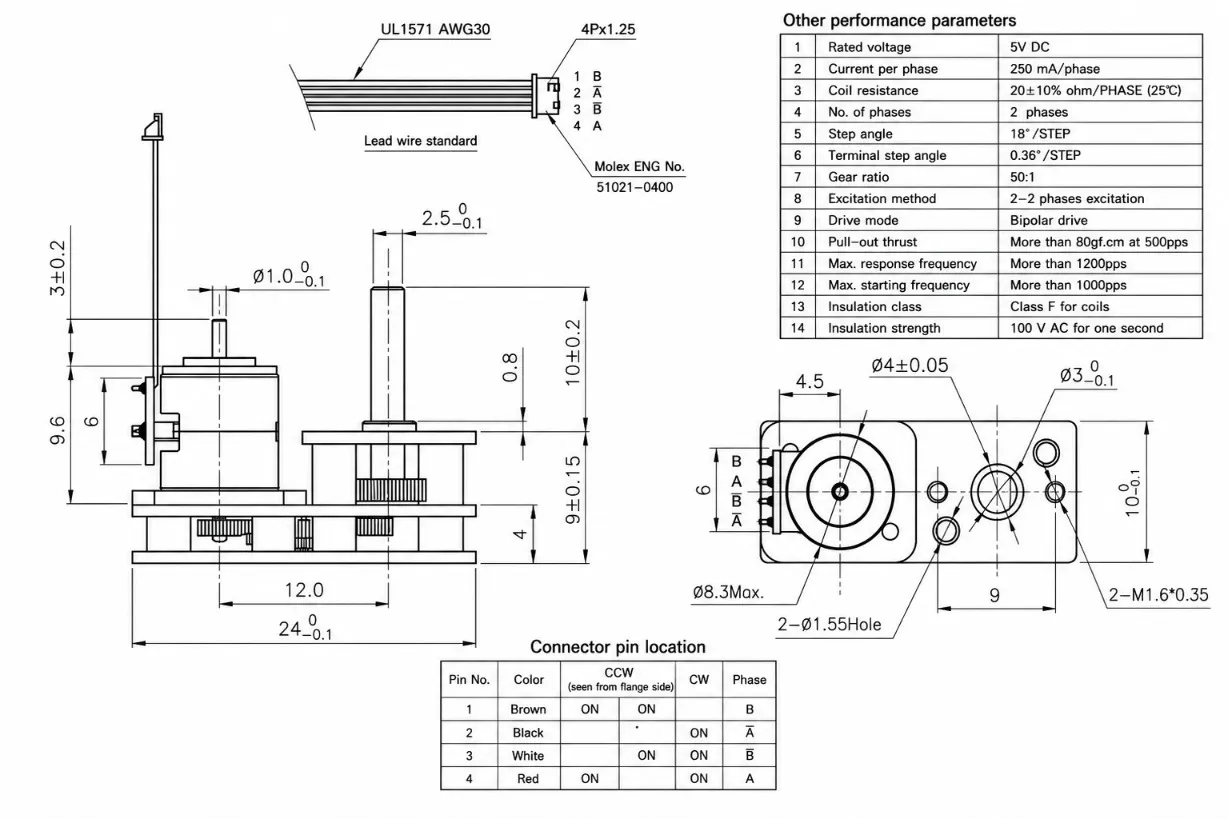

KC Geared Stepper Motor Dimensions & Technical Drawing

Dimensional specifications for integration | All values in millimeters

Kechen Motor technical 2D drawing showing 50:1 gear ratio, 12.0 mm center pitch, and dual output shafts.

KC-GM1024-08BY Series Geared Stepper Motor – D-Type Shaft Mechanical Outline Dimensions

Custom Motor Performance Advantages

  • Precise Step Resolution: Features an engineered 50:1 gear ratio that delivers a highly precise 0.36° terminal step angle for detailed electronic positioning applications.
  • Optimized Torque Delivery: Designed to provide a pull-out torque specification of more than 80 g·cm at 500 pps to sustain efficient mechanical execution under target loads.
  • High-Frequency Drive Stability: Capable of reliable operation under demanding frequency thresholds, demonstrating a maximum response frequency over 1200 pps and starting speeds over 1000 pps.
  • Durable Electrical Isolation: Built with Class E coil insulation materials verified to withstand an insulation strength test of 100 V AC for one second, maintaining internal system durability.
  • Standardized Industrial Integration: Leverages a standard D-type configuration on the output shaft to provide secure, slip-resistant integration into precision B2B assemblies.
  • Compatible Power Metrics: Configured for 5 V DC bipolar drive setups, ensuring smooth compatibility with standard low-voltage miniature stepper controller architectures.
