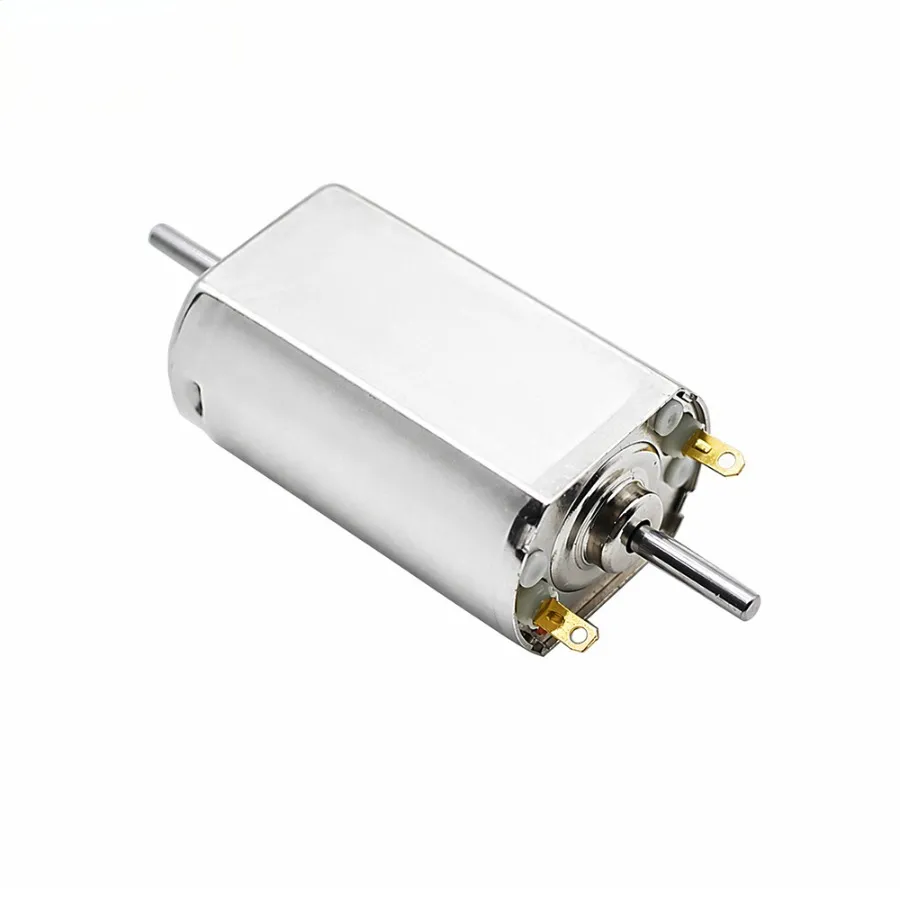

High-Performance 12V DC Double Shaft Motor with Nickel-Plated Housing – KC-180SH-55L

Technical Specification
KC-180SH-55L Series
180 Series DC Motor — Engineered for durability with optimized torque and consistent speed output.
Motor Type
180 Series DC Motor
Rated Voltage
12.0 V DC
No-Load Speed
9720 rpm
Starting Torque
≥160 g-cm
Shaft Configuration
Double Output Shaft
Housing Finish
Nickel-Plated
✓ Custom samples: 10–20 days
✓ Bulk order pricing available
✓ ISO 9001, CE & RoHS Compliant
Applications: Electric shavers, electric toothbrushes, remote control toys, smart electric locks, handheld cooling fans, automatic soap dispensers, camera lens mechanisms, automotive rearview mirror adjustment systems, small DIY robotics, personal beauty devices, paper shredders, miniature liquid dispensing pumps, and small motor-driven household appliances.
Inquiry Now

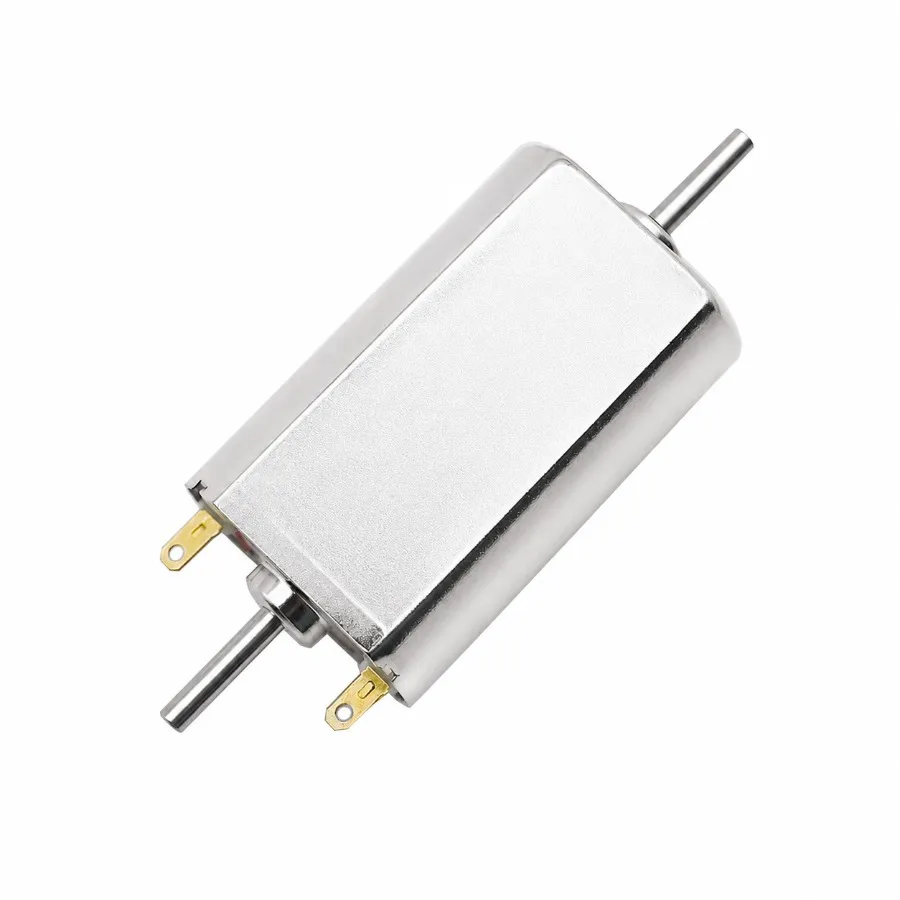

KC-180SH-55L 12V DC 180 Motor With Double Shaft

Performance Test Data For Micro Electric Motor

Parameter Limit / Specification Measured Range Average
No-load Current ≤ 105 mA 69–72 mA 70.2 mA
No-load Speed 9800 ± 10% rpm 9637–9784 rpm 9720 rpm
Load Current ≤ 285 mA 247–251 mA 249.4 mA
Load Speed 8600 ± 10% rpm 8574–8677 rpm 8632 rpm
Starting Torque ≥ 150 g·cm 155–160 g·cm 160 g·cm
Starting Voltage ≤ 2.0 V 0.76–0.79 V 0.78 V
Stall Current ≤ 2.25 A 1.89–1.92 A 1.906 A

Technical Specifications Of High-Torque Precision DC Motor

Parameter Specification
Rated Voltage 12.0 V DC
Test Environment 20 °C ± 2 °C, 60%–80% RH
Rated Load 20 g·cm
Shaft Length 11.0 ± 0.5 mm
Axial End Play 0.05–0.35 mm
Rotation Direction CCW
Structural Configuration Nickel-plated housing, iron cap, double shaft
Quality Status Pass (Waveform, Noise, Vibration, Appearance)

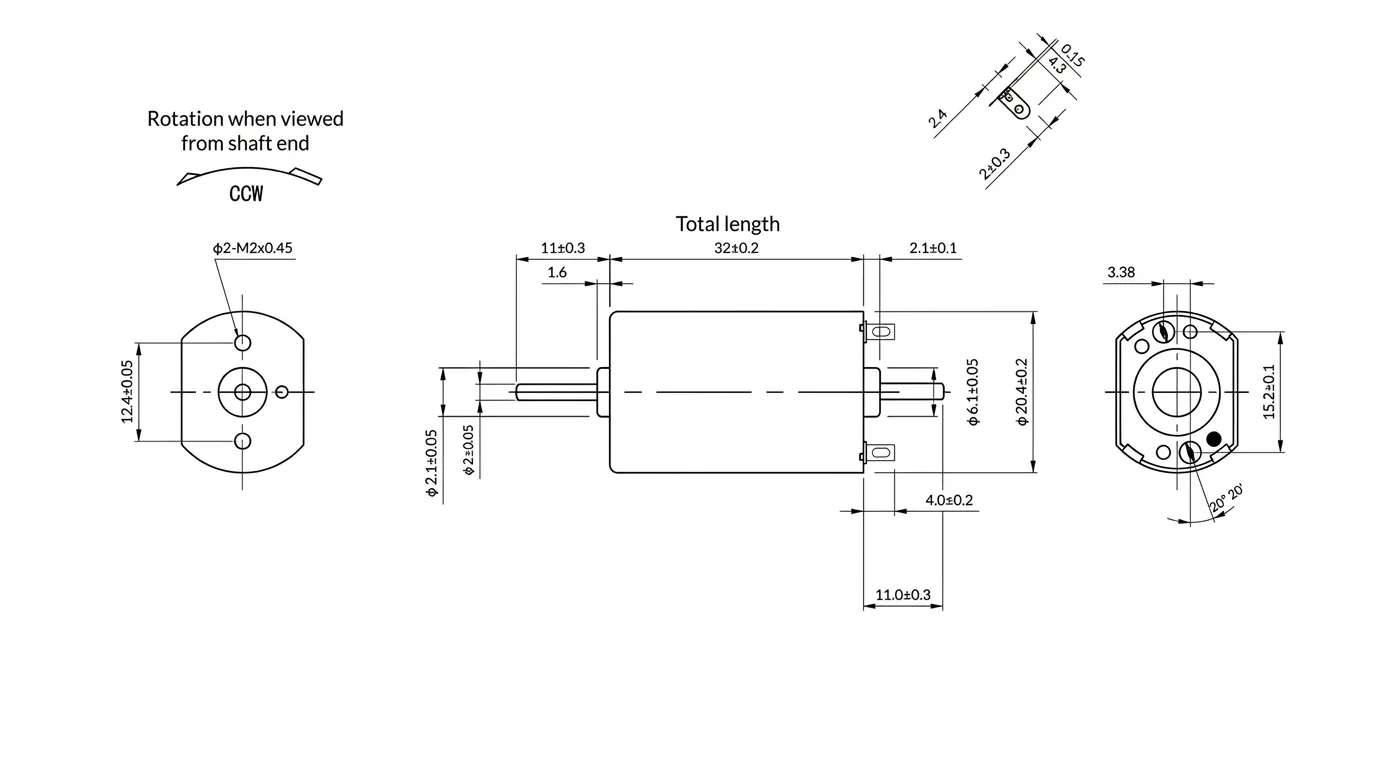

Technical Outline Dimensions

KC-180SH-55L 180 Double Shaft DC Motor Technical 2D Drawing showing mounting and shaft dimensions

Performance Advantages

  • Optimized starting performance: Minimum starting voltage of 0.78 V ensures precise activation for the 180 motor series.
  • Precise load handling: Sustained torque output of 160 g·cm provides reliable mechanical force for demanding applications.
  • Durable construction: Nickel-plated housing and iron cap integration enhance structural integrity and longevity.
  • Consistent operation: Controlled axial end play (0.12 mm average) minimizes vibration and noise in high-precision scenarios.
  • Versatile integration: Double-shaft design enables seamless compatibility in dual-output mechanical systems.
