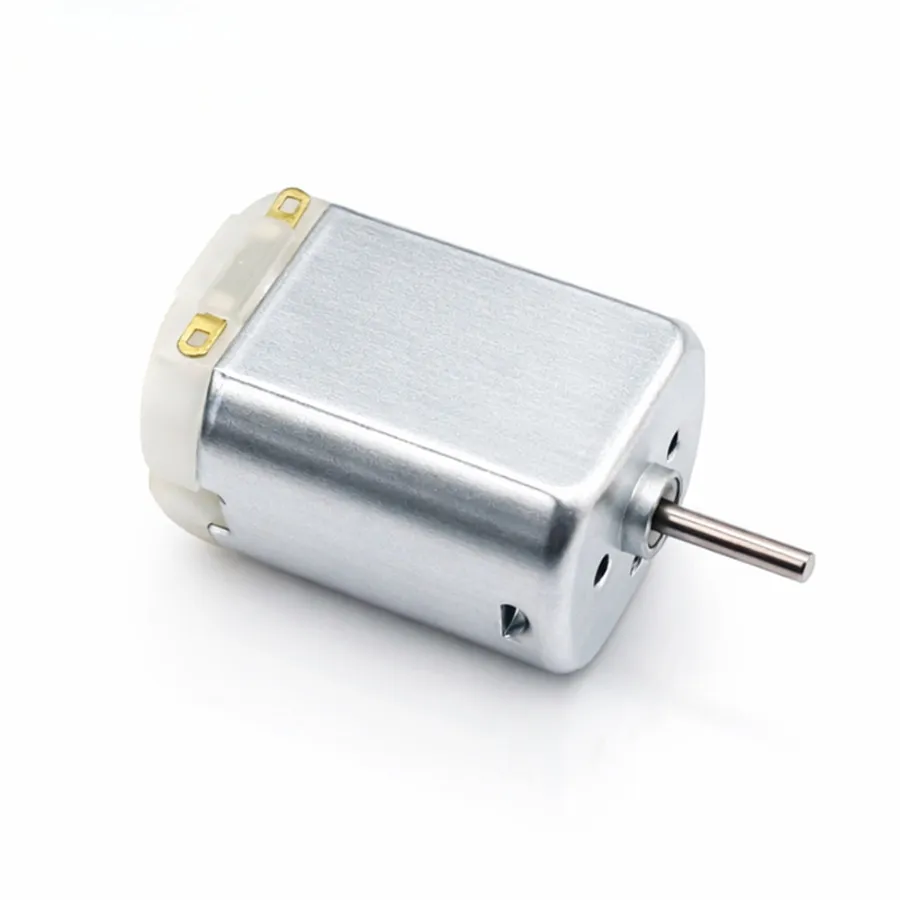

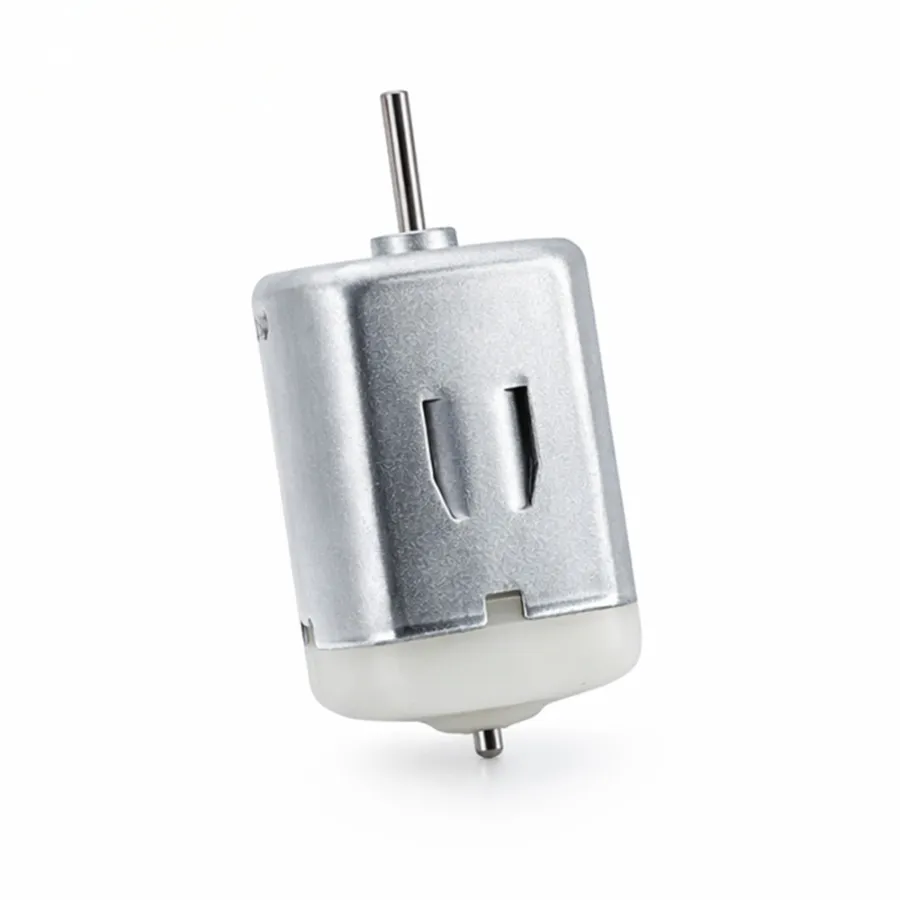

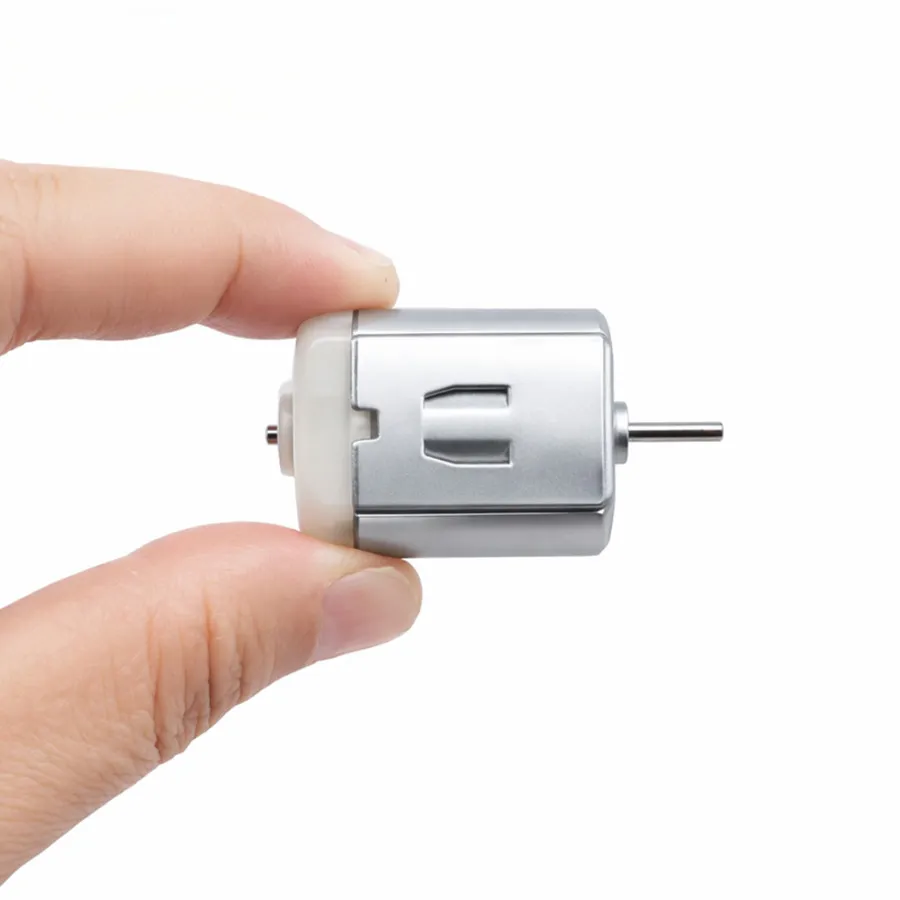

KC-280SA-3255 DC Motor: High-Speed 3.7V Micro Motor for Toys and DIY Projects
Applications: Small household appliances, portable electric tools, personal care devices, hair dryers, automotive electronic systems, door lock actuators, motorized toys, blood pressure monitors, automatic soap dispensers, office automation equipment, electric massagers, modeling and hobby crafts, cordless vacuum cleaners, water pumps, cooling fans for electronics.
Inquiry NowKC-280SA Series Micro DC Motor Performance Test Data
| Model | Rated Voltage | No-load Speed | No-load Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|
| KC-280SA-3255 | 3.7 V DC | 10 250 rpm | 250 mA | 134 g·cm | 4.55 A |
| KC-280SA-18185 | 12.0 V DC | 10 300 rpm | 61 mA | 206 g·cm | 2.05 A |
| KC-280SA-11300 | 24.0 V DC | 13 600 rpm | 55 mA | 175 g·cm | 1.05 A |
Maximum Efficiency Operational Specifications
| Model Reference | Efficiency Speed | Efficiency Torque | Efficiency Current | Output Power |
|---|---|---|---|---|
| KC-280SA-3255 | 8 870 rpm | 20.0 g·cm | 860 mA | 3.2 W |
| KC-280SA-18185 | 9 400 rpm | 20.0 g·cm | 244 mA | 2.9 W |
| KC-280SA-11300 | 12 200 rpm | 20.0 g·cm | 175 mA | 4.2 W |

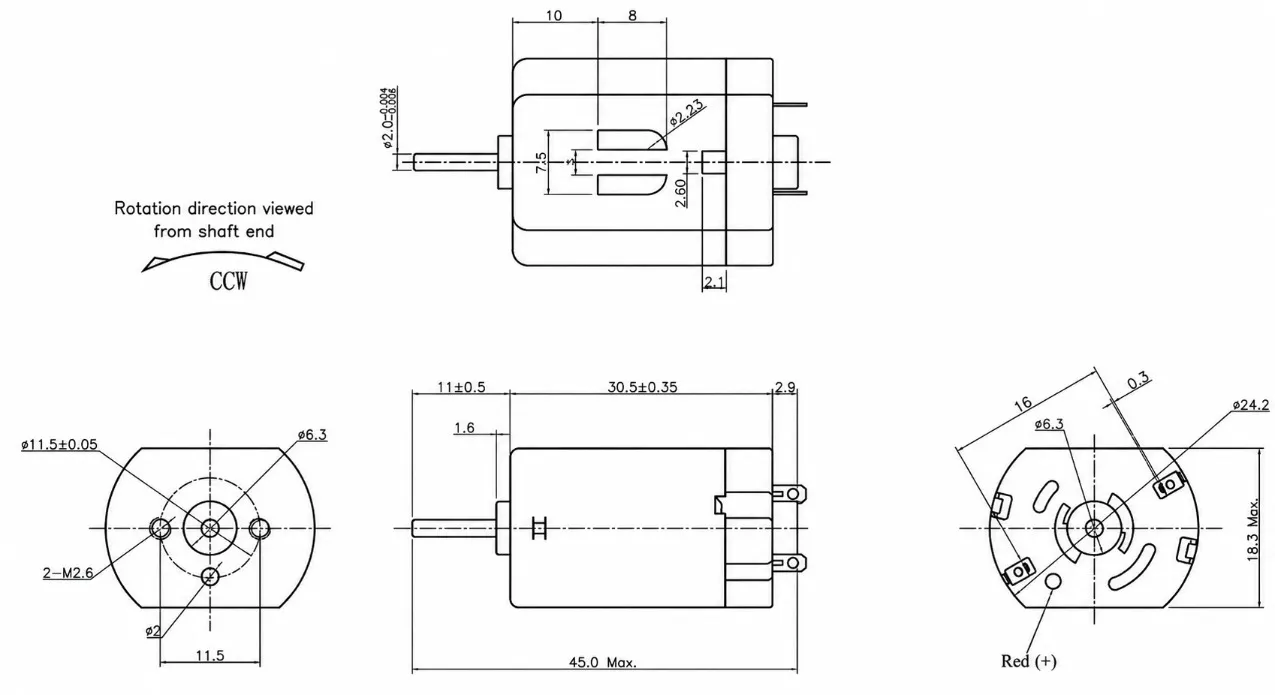

KC-280SA Micro DC Motor Dimensional Drawing
Technical specification reference for industrial integration | All dimensions in mm
Industrial Integration Advantages
- Optimized power-to-weight ratio for precise motion control in small appliances
- Durable brushed commutation system compatible with 3.7 V to 24.0 V DC power supplies
- Precise carbon brush configuration ensures stable torque output under varying loads
- Integration-ready chassis design for simplified mechanical mounting
