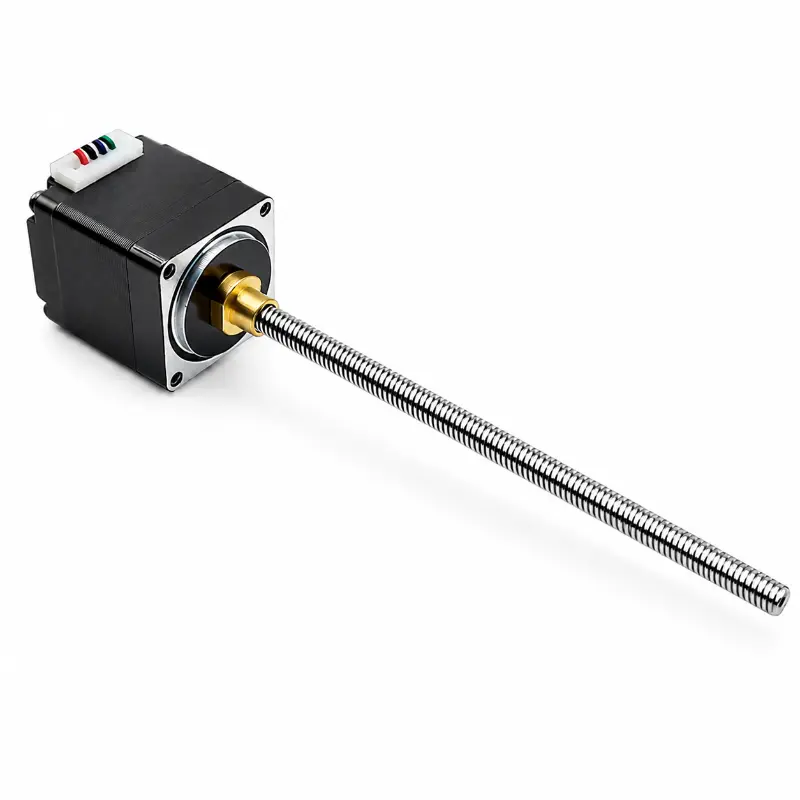

NEMA 11 Motor Hybrid Stepper Series with 105mm T5 Lead Screw 28mm 1.8°

Technical Specification
KC-28HYB Series
NEMA 11 Hybrid Stepper Motor — Optimized for precise integration and durable motion control
Motor Type
Hybrid Stepper
Frame Size
NEMA 11 (28mm)
Step Angle
1.8°
Rated Voltage
3 – 24 V DC
Holding Torque
0.65 – 2.1 kg·cm
Lead Screw
T5, 105mm Length
✓ Custom samples: 10-20 days
✓ Bulk order pricing available
✓ ISO 9001, CE & RoHS Compliant
Applications: 3D printing stage positioning, laboratory liquid handling robots, medical syringe pump systems, automatic optical inspection equipment, laser engraving focus adjustment, semiconductor wafer handling, analytical instrumentation, precision micro-assembly fixtures.
Inquiry Now

Performance Specifications Of Nema 11 Stepper Motor Series

Parameter Specification
Rated Voltage 5.5 V DC
Rated Current 1 A per phase
Coil Resistance 5.5 ohm per phase
Inductance 3.5 mH
Number Of Phases 2 phases
Step Angle 1.8° per step
Holding Torque 1.2 kg·cm
Rated Voltage Range 3 V to 24 V DC

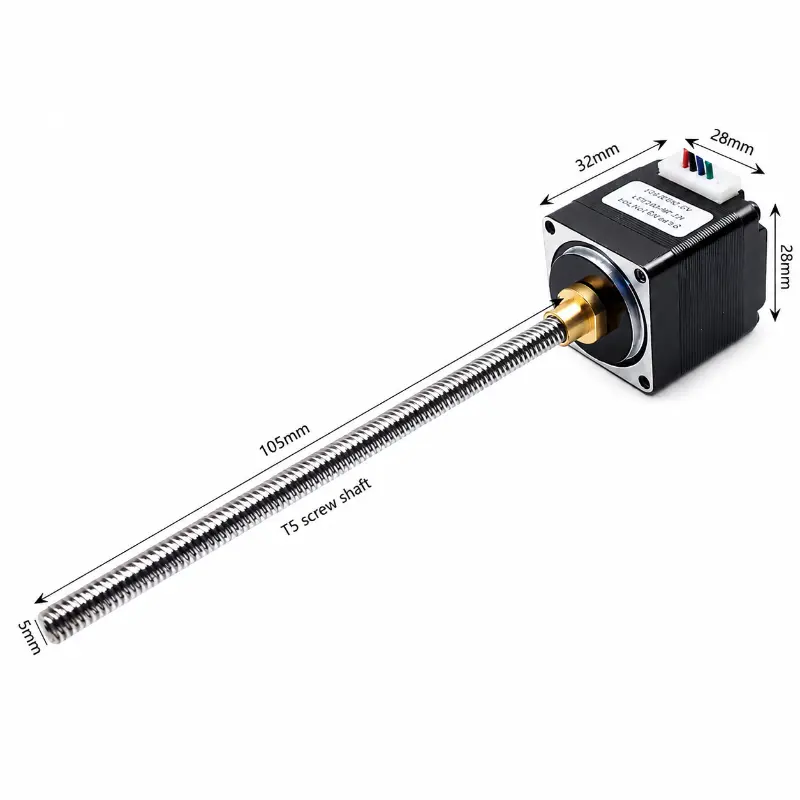

Mechanical Drawing And Dimension Parameters Table

* Dimensions for nema 11 linear actuator integration
Parameter Specification
Frame Width 28 mm
Frame Height 28 mm
Front Frame Size 28.2 × 28.2 mm
Mounting Hole Spacing 23 ± 0.2 mm
Mounting Holes 4 × M2.5
Mounting Hole Depth 3.5 mm minimum
Motor Body Length 32 mm
Lead Screw Type T5 screw shaft
Lead Screw Length 105 mm
Wire Specification UL1569 AWG26

Technical Drawing And Mechanical Dimensions Architecture

Dimensional layout specifications for integration | All values in millimeters

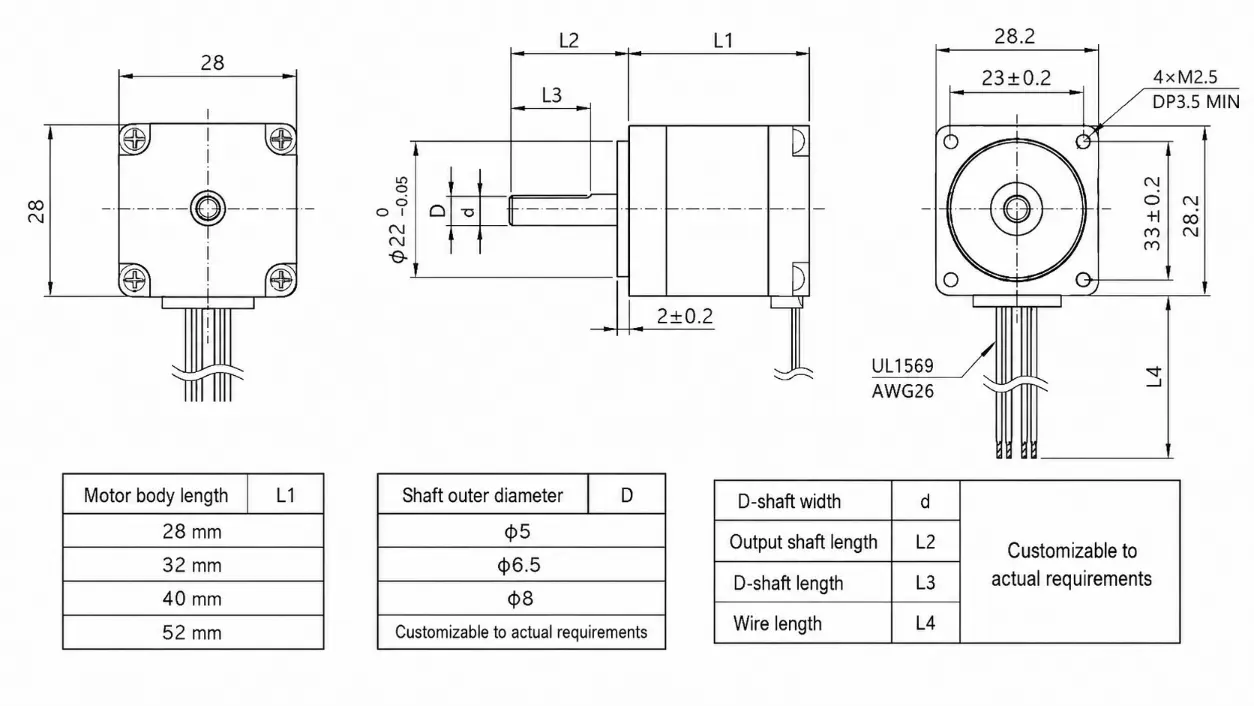

Kechen Motor NEMA 11 hybrid stepper motor technical mechanical drawing with dimension parameters and mounting hole specs

Mechanical drawing of nema 11 dimensions with T5 lead screw configuration

Engineering Advantages And Integration Performance

  • Precise positioning control: Designed with a fine 1.8° step angle to support exact positioning requirements in automated systems
  • Optimized torque delivery: Delivers stable holding torque performance suitable for demanding industrial linear motion tasks
  • Durable construction: Features robust coil winding and reliable insulation properties for long operational life cycles
  • Flexible mechanical compatibility: Supports customized voltage, current, and shaft parameters to match specific project demands
  • Seamless system integration: Standardized mounting interfaces simplify installation across diverse automation equipment
