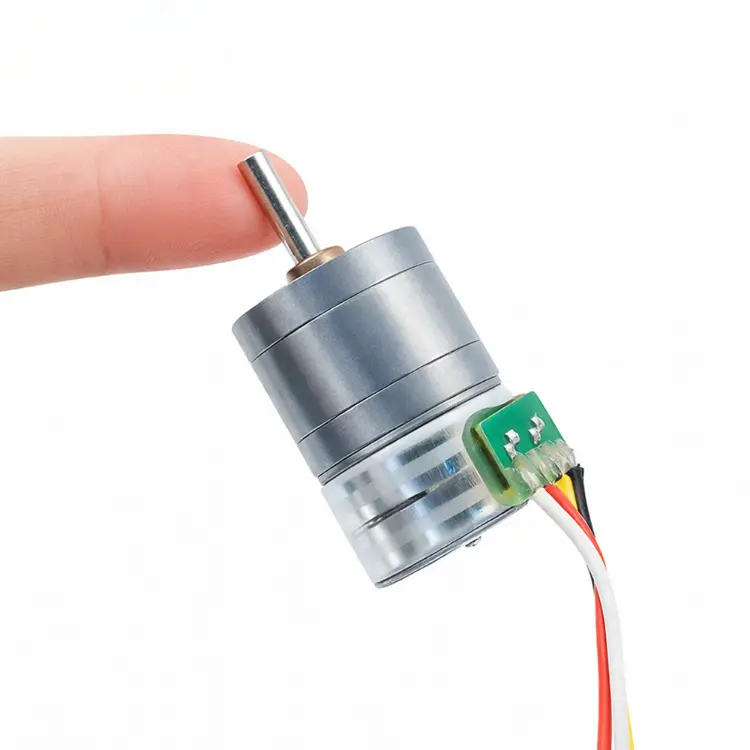

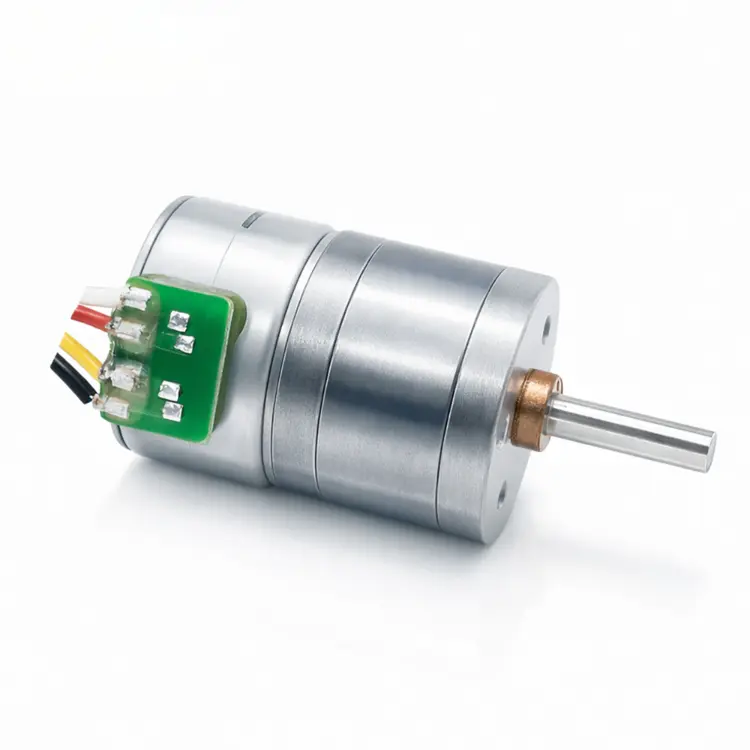

25mm 7.5 Degree 9V Gear Stepper Motor with High Torque KC-GM1024-10BYJ2510-N
Applications: Automated fluid control valves, medical infusion pumps and micro-dosing systems, laboratory multi-channel pipetting robots, smart home motorized blinds and lifting mechanisms, CCTV camera pan-tilt precision mounts, automated retail vending machine inventory pushers, optical instrument focusing and filter wheel switching, laser instrument angular calibration.
Inquiry NowKC-GM25-25BY Geared Stepper Motor Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 9V DC |
| Current Per Phase | 200 mA |
| Coil Resistance | 10 Ω/phase |
| Step Angle | 7.5° |
| Excitation Method | 2-2 phase excitation |
| Detent Torque | 30 gf·cm |
| Holding Torque | 350 gf·cm |
| Insulation Resistance | 100 MΩ (at 500 V DC) |
| Noise Level | ≤ 50 dB(A) |
| Operating Temperature Range | 10 °C to 50 °C |
Geared Stepper Motor Performance Data Table
* Performance values based on 800 PPS drive frequency.
| Gear Ratio | Stage | Gearbox Length (mm) | Step Angle (°/step) | Pull-out Torque (gf·cm) | Speed (rpm) |
|---|---|---|---|---|---|
| 10:1 | 2 | 19 | 0.80 | 600 | 240.0 |
| 35.5:1 | 3 | 21 | 0.20 | 1864 | 68.0 |
| 59:1 | 4 | 23 | 0.10 | 2655 | 41.0 |
| 78:1 | 4 | 23 | 0.10 | 3510 | 31.0 |
| 103:1 | 4 | 23 | 0.07 | 4635 | 23.3 |
| 130:1 | 5 | 25 | 0.06 | 4875 | 18.5 |
| 172:1 | 5 | 25 | 0.04 | 6450 | 14.0 |
| 226:1 | 5 | 25 | 0.03 | 8475 | 10.6 |
| 286:1 | 6 | 27 | 0.03 | 8580 | 8.4 |
| 378:1 | 6 | 27 | 0.02 | 11 340 | 6.3 |
| 500:1 | 6 | 27 | 0.02 | 15 000 | 4.8 |

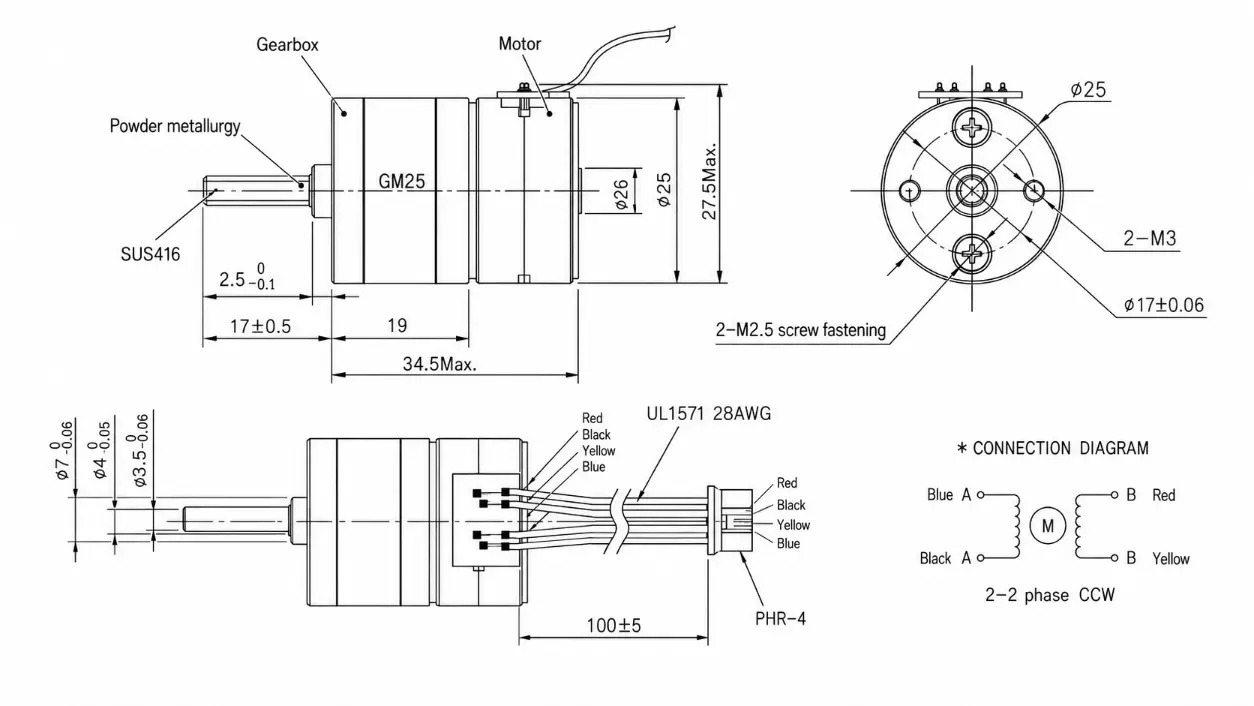

KC-GM25-25BY Dimensional Drawing & Mechanical Specifications
Performance Advantages
- Torque-optimized output: Gearbox design delivers up to 15 000 gf·cm torque, ensuring robust load handling capabilities.
- High-precision control: Fine step angle resolution (down to 0.02°/step) enables accurate positioning for complex motion tasks.
- Optimized integration: Multiple gear ratios and compact dimensions (19–27 mm) allow for seamless integration into diverse mechanical environments.
- Precise performance: 2-2 phase excitation ensures stable operational characteristics across varying drive frequencies.
- Durable configuration: High insulation resistance (100 MΩ) and strict noise control (≤ 50 dB) support reliable long-term usage.
- Application flexibility: Customizable shaft lengths and parameter configurations to meet specific engineering requirements.
