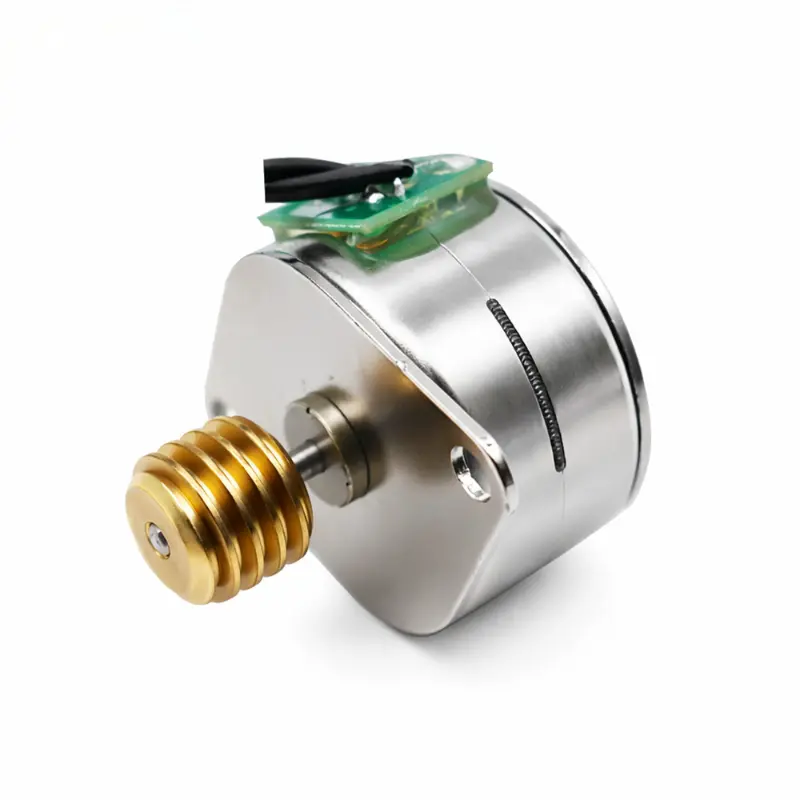

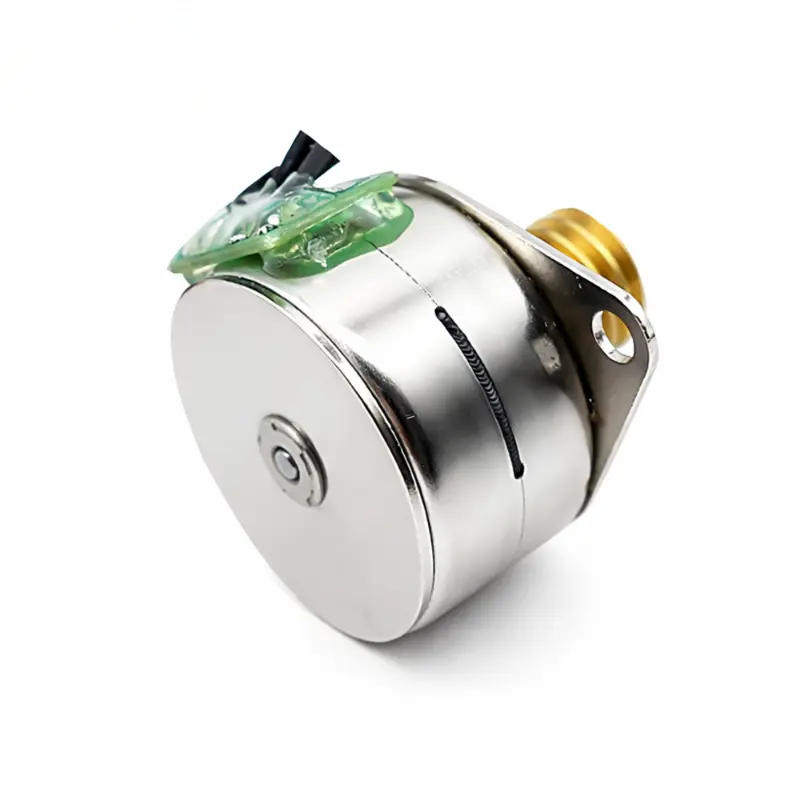

25mm 2-Phase PM Stepper Motor with Copper Worm Gear 7.5 or 15 Degree KC-25BY26
Applications: Laboratory syringe pumps, office automation equipment, robotic grippers, smart locking systems, medical fluid analysis devices.
Inquiry NowKC-25BY26 Stepper Motor with Brass Worm Gear Specifications

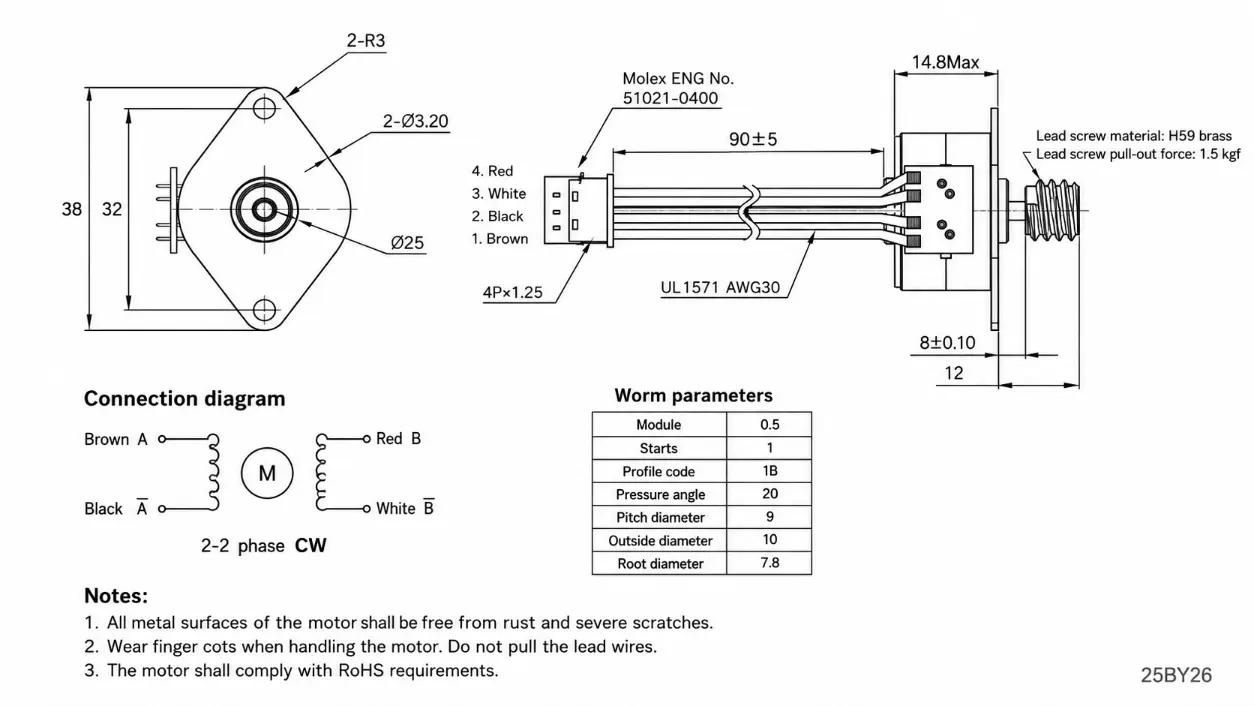

Technical Outline Dimensions and Worm Gear Interface Details
Performance And Electrical Specifications
| Parameter | Specification |
|---|---|
| Model Series | KC-25BY26 |
| Motor Type | 2-Phase 4-Wire PM Stepper |
| Rated Voltage | 5 V / 12 V / 24 V DC |
| Step Angle | 7.5° / 15° (48/24 steps per revolution) |
| Phase Resistance | 10 Ω / 20 Ω / 30 Ω / 100 Ω (Dependent on voltage) |
| Pull-in Torque | ≥ 100 g·cm (at 100 pps) |
| Pull-out Torque | ≥ 150 g·cm (at 100 pps) |
| Insulation Class | Class E |
| Total Weight | 45 g |
Worm Gear Specifications
| Parameter | Specification |
|---|---|
| Material | H59 Brass |
| Module | 0.5 |
| Starts | 1 |
| Profile Code | 1B |
| Pressure Angle | 20° |
| Pitch Diameter | 9 mm |
| Outside Diameter | 10 mm |
| Root Diameter | 7.8 mm |
Performance Advantages
- Optimized Gear Geometry: Precision-engineered H59 brass worm gear ensures consistent torque transmission and compatibility with diverse load requirements.
- Durable Construction: High-grade materials and Class E insulation provide reliable operation in demanding environments.
- Precise Control: Dual step angle options enable fine-tuned positioning control suitable for varied industrial automation tasks.
- Flexible Integration: Configurable voltage and resistance parameters support seamless system integration.
