25mm 12V Bipolar Stepper Motor with Encoder 12PPR & 15 Degree Step Angle KC-25BY26

Technical Specification
KC-25BY26 Series
Stepper Motor with Encoder — Optimized for precise integration and durable control
Model
KC-25BY26
Motor Type
2-Phase Bipolar
Rated Voltage
12V DC
Step Angle
15°/Step
Encoder
12PPR
Insulation
Class E
✓ Custom samples: 10-20 days
✓ Bulk order pricing available
✓ ISO 9001, CE & RoHS Compliant
Applications: Medical infusion pumps, Office automation document scanners, Precision laboratory instrumentation, Surveillance camera pan-tilt mechanisms, Automated banking machine components.
Inquiry Now

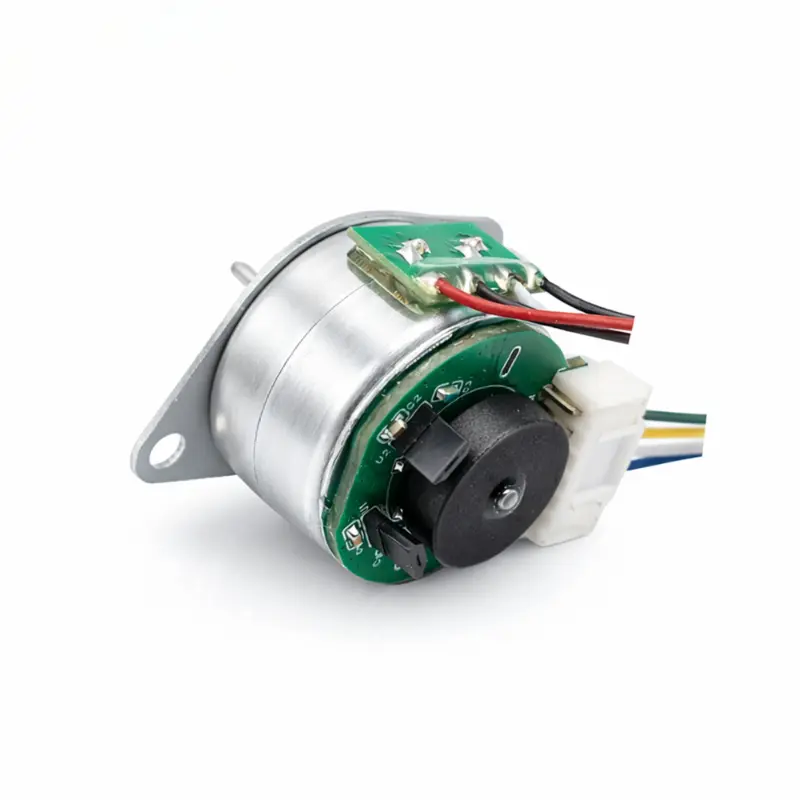

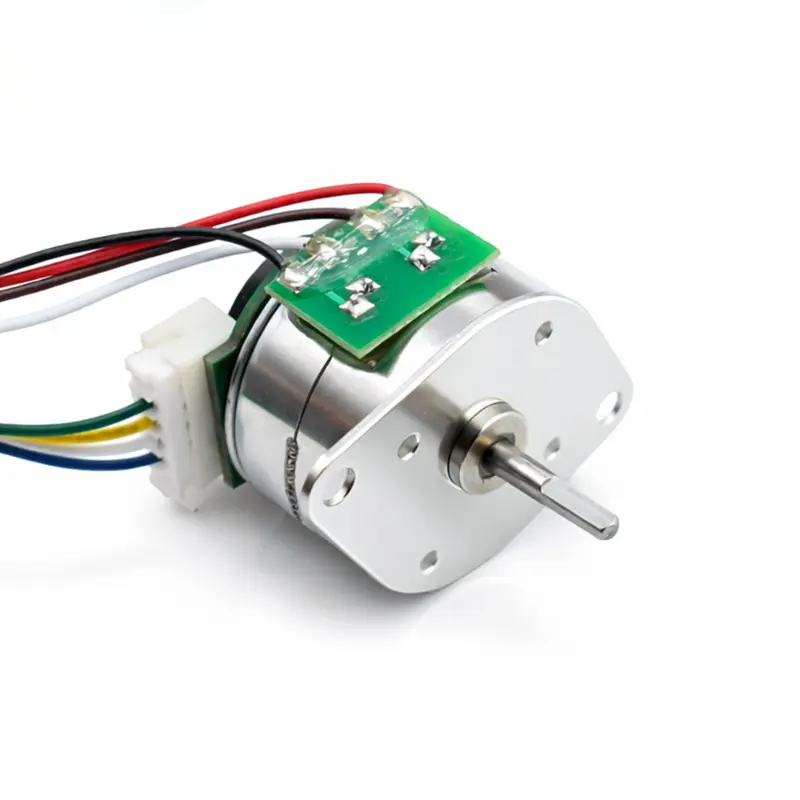

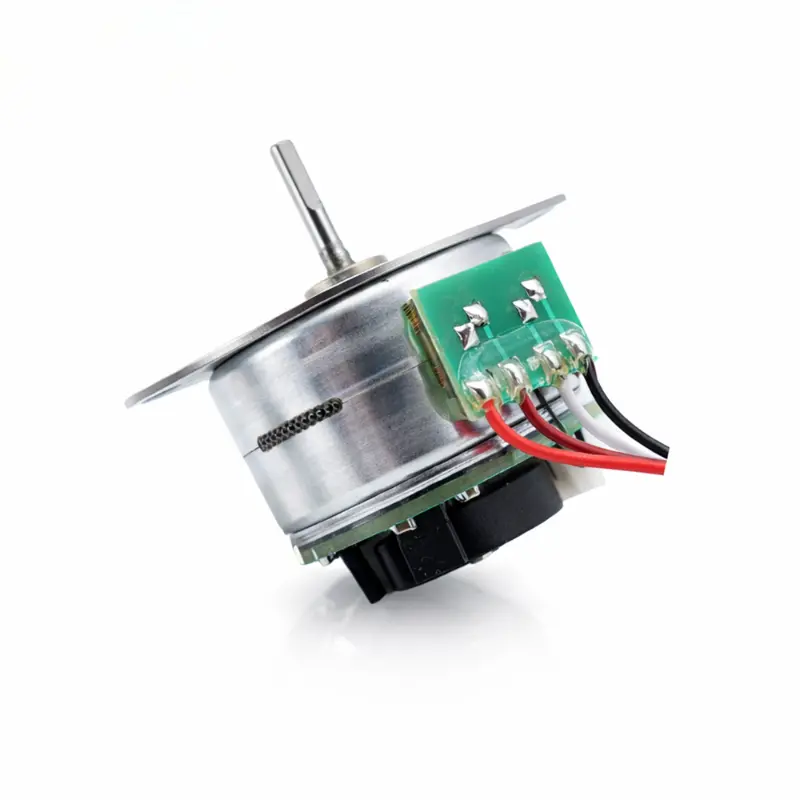

KC-25BY26 Stepper Motor with 12PPR Encoder

Performance Characteristics

Parameter Specification
Rated Voltage 12.0 V DC
Coil Resistance 50 ± 10 % Ω/phase
No. of Phases 2 phases
Step Angle 15°/step
Excitation Method 2−2 phase excitation
Drive Mode Bipolar drive
Max Pull-out Frequency > 600 pps
Max Pull-in Frequency > 400 pps
Insulation Class Class E
Insulation Strength 100 V AC for 1 s
Insulation Resistance 50 MΩ at 500 V DC
Operating Temperature Range 0 °C to +55 °C

Technical Specifications

Parameter Specification
Encoder Resolution 12 PPR
Encoder Operating Voltage 5.0 V max
Encoder Connector PHR−6
Lead Wire Specification UL1571 28AWG, L = 150 mm
Motor Connector PHR−4
Phase Sequence 2−2 phase CW
Wiring Definition Black (A), Red (A⁻), Yellow (B), Blue (B⁻)

Performance Advantages

  • Optimized Integration: Compact 25 mm diameter profile designed for precise spatial constraints in automated equipment.
  • Encoder Feedback: Integrated 12 PPR encoder provides consistent positioning data for closed-loop control applications.
  • Precise Motion: 15° step angle combined with bipolar drive mode ensures smooth and repeatable motion control.
  • Durable Construction: Class E insulation and robust wiring specifications support reliable operation in industrial environments.
  • Compatible Connectivity: Standard PHR series connectors facilitate rapid assembly and system integration.

Technical Outline Dimensions

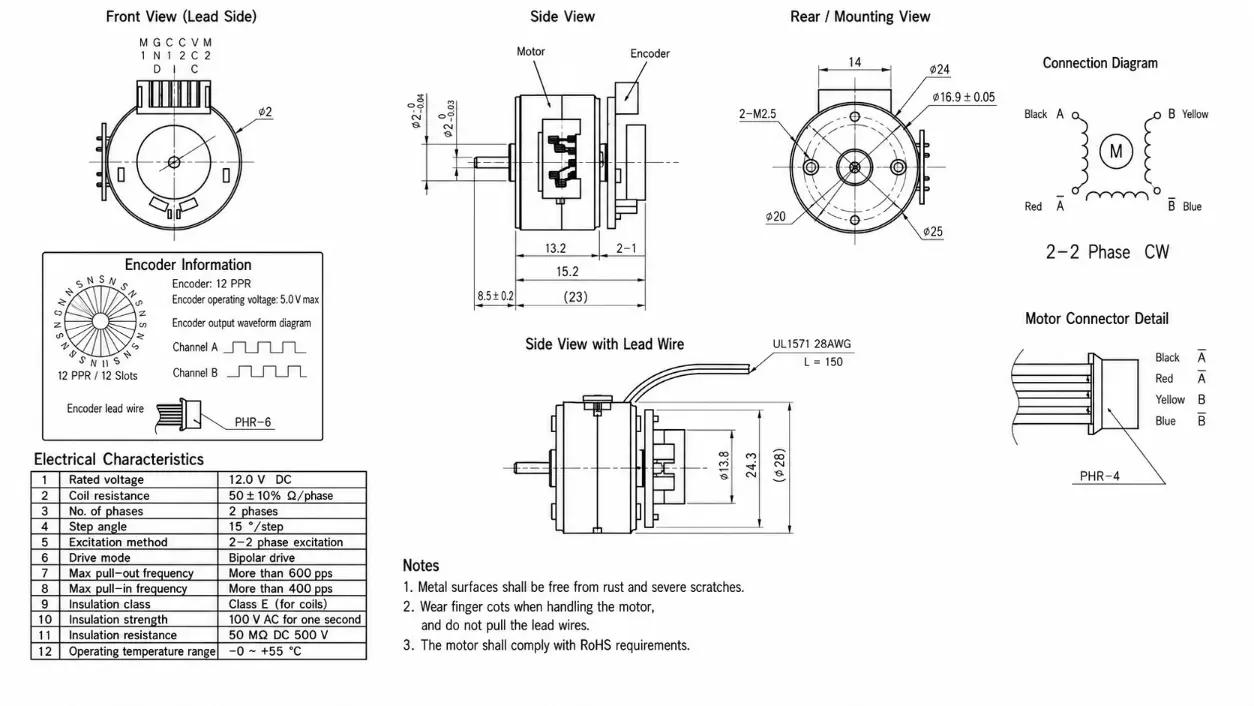

KC-25BY26 Stepper Motor Technical 2D Drawing showing 25mm diameter and 15.2mm mounting specifications.
