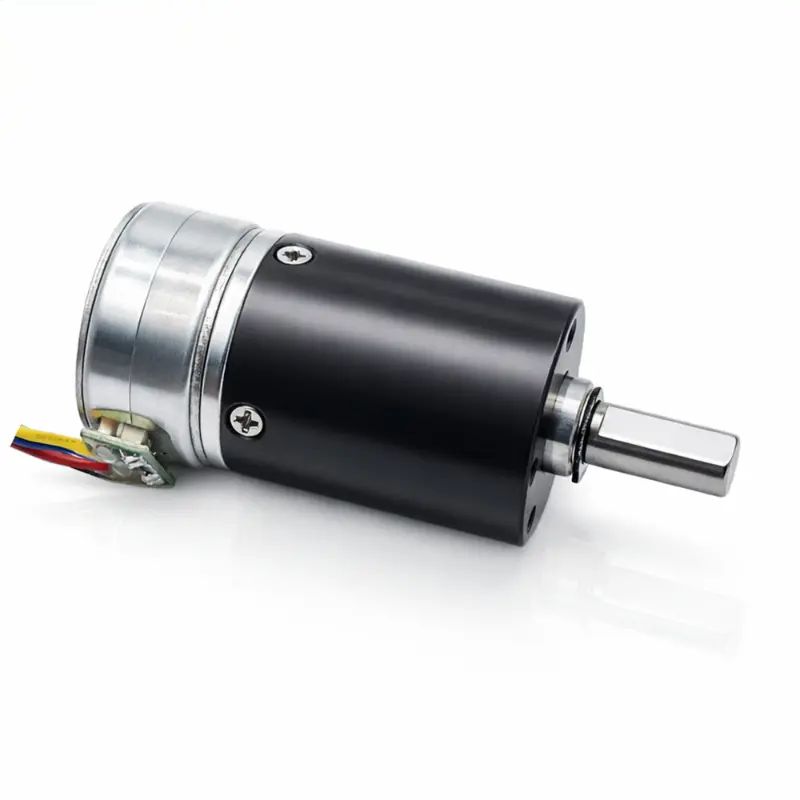

25mm 24V Bipolar 2 Phase 15 Degree Planetary Gearbox Stepper Motor KC-GMP24-25BY

Technical Specification
KC-GMP24-25BY Series
Base motor performance optimized for precise planetary gearbox integration
Product Model
KC-GMP24-25BY
Motor Configuration
2-Phase Bipolar Stepper
Rated Voltage
24 V DC
Base Step Angle
15°
Winding Resistance
16 Ω ±7%
Base Holding Torque
2200 gf·cm
✓ Custom samples: 10-20 days
✓ Bulk order pricing available
✓ ISO 9001, CE & RoHS Compliant
Applications: Automated laboratory pipettes, SMT tape feeders, medical analyzer fluid valves, commercial ticket dispensing modules, motorized optical filter changers, industrial labeling dispensers, textile yarn tension adjusters, electronic currency counters, microfluidic sampling pumps, automated welding torch calibrators.
Inquiry Now

KC-GMP24-25BY 24v Geared Stepper Motor Electrical Specifications

* Engineering data for the 24v dc 2 phase geared stepper prime motor unit prior to reduction
Parameter Specification
Rated Voltage 24 V DC
Number of Phases 2 phases
Coil Resistance 16 Ω ± 7% (at 25 °C)
Drive Mode Bipolar drive
Base Step Angle 15 °/step
Base Motor Holding Torque 2 200 gf·cm
Base Motor Pull-out Torque 1 500 gf·cm (at 2 000 pps)
Max Starting Frequency 800 pps
Max Slew Speed 1 100 pps

KC-GMP24-25BY 25mm Planetary Gearbox Stepper Mechanical Dimensions

* Structural configurations for the micro gear stepper motor integration
Parameter Specification
Gearbox Type Planetary gearbox
Gearbox Outer Diameter 25 mm
Output Shaft Configuration D-shaft
Customization Capability Alternative 1.8 degree bipolar stepper motor options and custom gear ratios available upon request

D-Shaft Planetary Stepper Motor 25mm Technical Drawing

Dimensional specifications for 25mm planetary gear stepper motor industrial integration | All values in millimeters

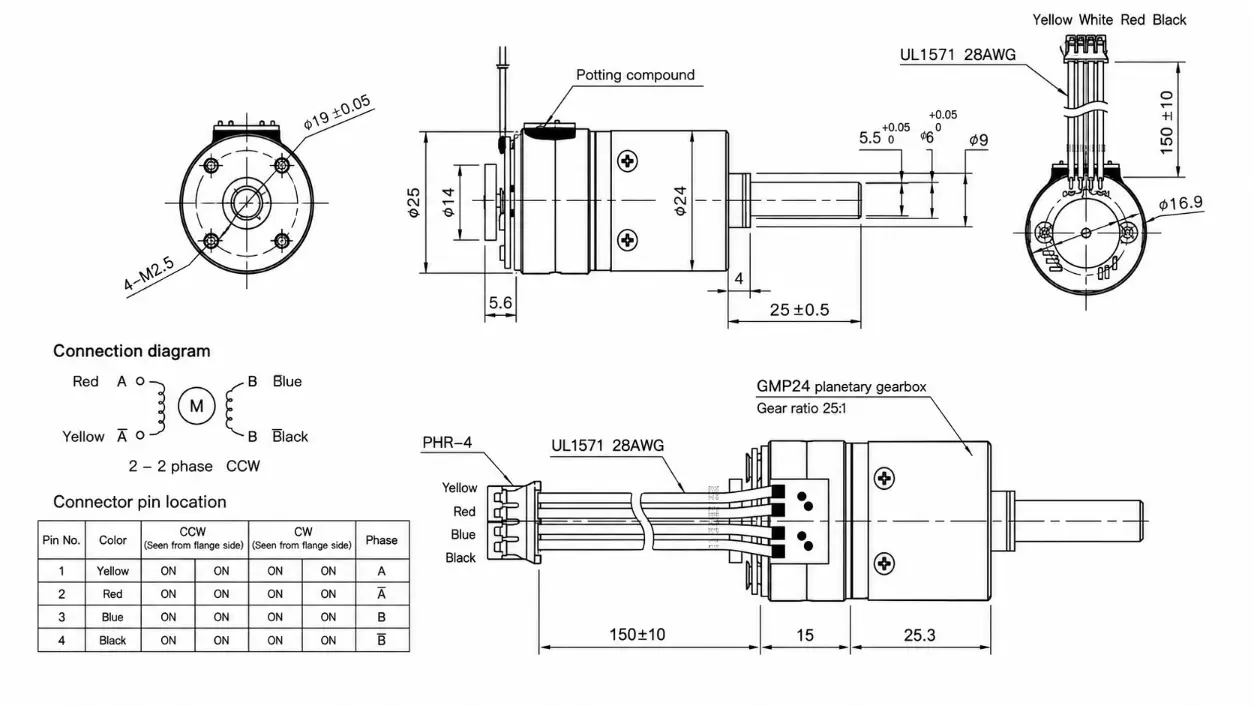

Kechen Motor GMP24-25BY planetary geared stepper motor technical 2D drawing showing 4-M2.5 PCD19 holes and 6mm D-shaft.

KC-GMP24-25BY Series 25mm Planetary Gear Stepper Motor Dimensions

Optimized Base Motor Performance Advantages

  • High Foundational Torque: Features a 2 200 gf·cm holding torque and 1 500 gf·cm pull-out torque at the prime motor level, ensuring massive torque multiplier potential when paired with the 25mm planetary gear stepper motor configuration.
  • Precise Dynamics Calibration: Configured with a 15 °/step index layout, allowing optimized pairing with a robust micro gear stepper motor reduction assembly for multi-stage precise positioning.
  • Optimized Electrical Parameters: Designed as a 24v dc 2 phase geared stepper foundation with a 16 Ω balanced phase resistance to ensure durable performance under continuous operation.
  • Excellent Pulse Synchronisation: Supports a stable maximum starting frequency of 800 pps and 1 100 pps slew speed, delivering accurate motion control profiling before gear reduction.
  • Standardized Industrial Layout: Pre-machined for direct integration with a durable 25mm planetary gearbox stepper housing, utilizing a reliable d-shaft configuration for high-torque industrial applications.
