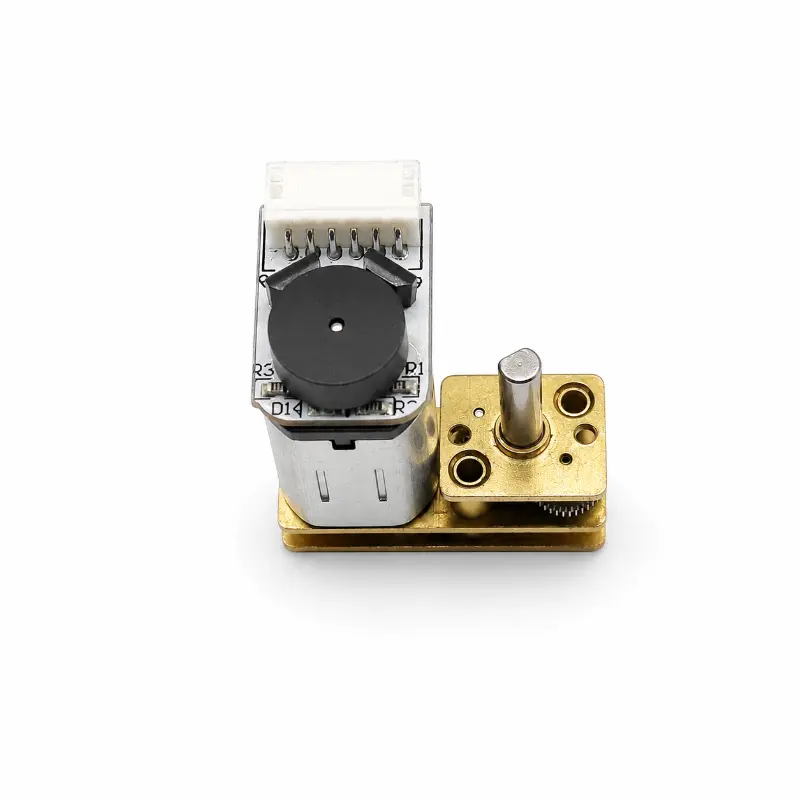

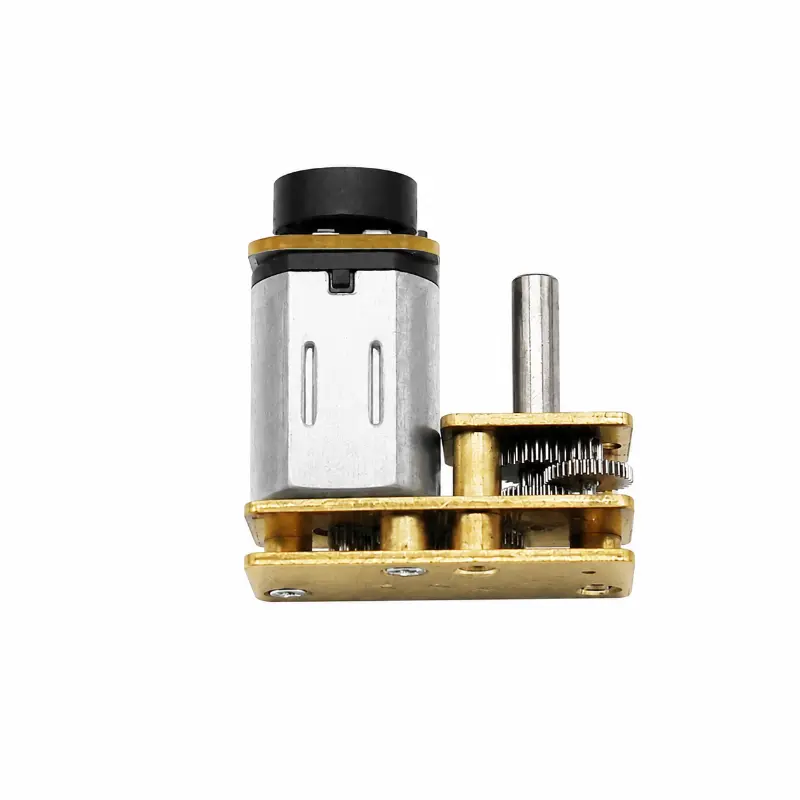

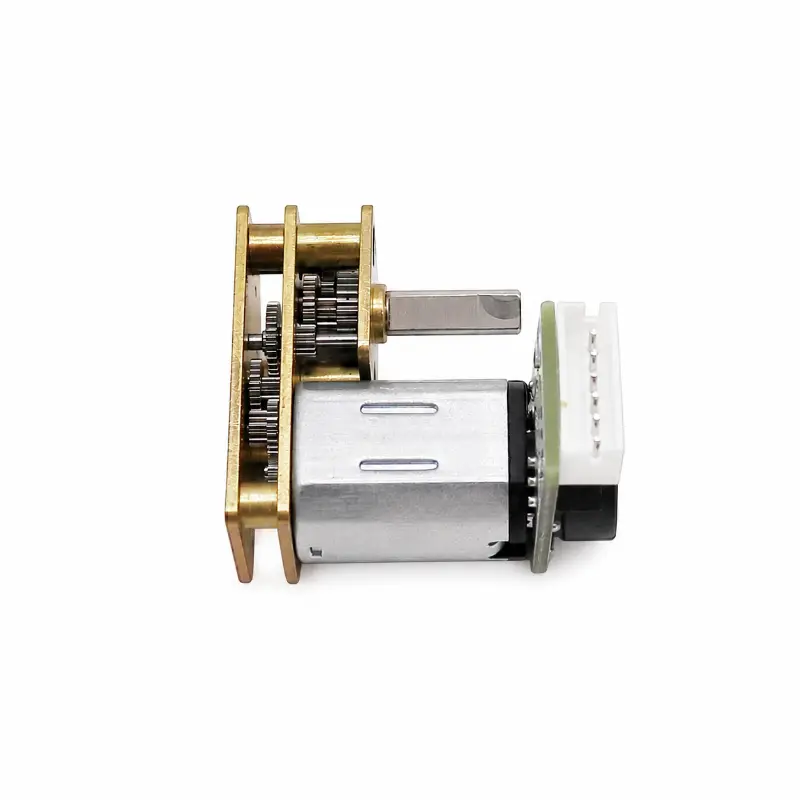

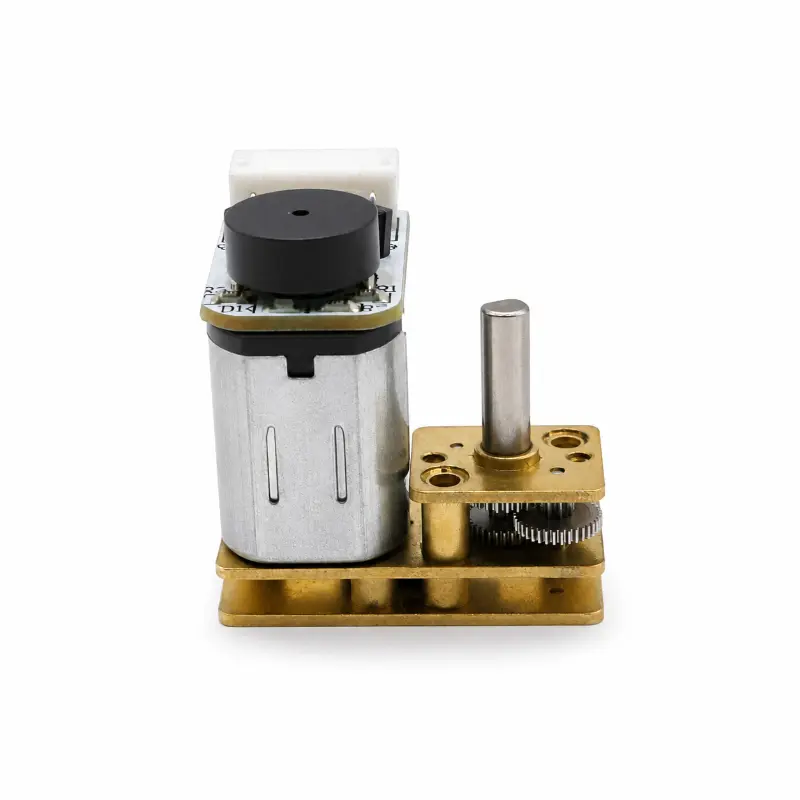

12mm High Precision N20 DC Motor with Magnetic Encoder and Gearbox KC-GM1024-N20
Applications: Smart door locks, Medical infusion pumps, Miniature pan-tilt cameras, Automated optical instruments, Electronic payment terminals, Smart home motorized blinds, Precision laboratory dispensers, Miniature robotics actuators.
Inquiry NowKC-GM1024-N20 Micro DC Motor With Magnetic Encoder Technical Overview
The KC-GM1024-N20 series integrates a high-precision micro DC motor with an integrated magnetic encoder, engineered for applications requiring accurate position feedback and velocity control. Featuring durable metal gearing and robust construction, this micro gear motor delivers reliable torque transmission across demanding industrial and commercial environments. Designed for seamless integration into compact mechanical assemblies, the unit supports custom electrical and mechanical parameters to match precise project specifications.
Core Motor Performance Specifications
Baseline characteristics for KC-N20-06Z325 and KC-N20-05Z360 variants
| Parameter | KC-N20-06Z325 | KC-N20-05Z360 |
|---|---|---|
| Rated Voltage | 4.8 V DC | 12.0 V DC |
| No-load Speed | 8300 rpm | 18400 rpm |
| No-load Current | 18 mA | 25 mA |
| Max Efficiency Speed | 6250 rpm | 15700 rpm |
| Max Efficiency Torque | 0.10 g·cm | 0.25 g·cm |
| Max Efficiency Current | 80 mA | 64 mA |
| Output Power | 0.384 W | 0.77 W |
| Stall Torque | 8.10 g·cm | 13.63 g·cm |
| Stall Current | 0.220 A | 0.318 A |
| Encoder Feedback | 7 PPR magnetic encoder integration | |
Gear Reduction Ratio Performance Parameters
Comprehensive operational metrics for KC-GM1024-N20-06Z325 and KC-GM1024-N20-05Z360 gear motor assemblies
| Reduction Ratio | Gearbox Length | 06Z325 No-load Speed | 06Z325 Rated Torque | 06Z325 Stall Torque | 05Z360 No-load Speed | 05Z360 Rated Torque | 05Z360 Stall Torque |
|---|---|---|---|---|---|---|---|
| 30:1 | 9 mm | 277 rpm | 0.04 kg·cm | 0.15 kg·cm | 613 rpm | 0.04 kg·cm | 0.25 kg·cm |
| 50:1 | 9 mm | 166 rpm | 0.06 kg·cm | 0.24 kg·cm | 368 rpm | 0.06 kg·cm | 0.41 kg·cm |
| 100:1 | 9 mm | 83 rpm | 0.12 kg·cm | 0.49 kg·cm | 184 rpm | 0.12 kg·cm | 0.82 kg·cm |
| 168:1 | 9 mm | 49 rpm | 0.13 kg·cm | 0.54 kg·cm | 110 rpm | 0.13 kg·cm | 0.92 kg·cm |
| 210:1 | 9 mm | 40 rpm | 0.17 kg·cm | 0.68 kg·cm | 88 rpm | 0.17 kg·cm | 1.14 kg·cm |
| 250:1 | 9 mm | 33 rpm | 0.20 kg·cm | 0.81 kg·cm | 74 rpm | 0.20 kg·cm | 1.36 kg·cm |
| 298:1 | 9 mm | 28 rpm | 0.24 kg·cm | 0.97 kg·cm | 62 rpm | 0.24 kg·cm | 1.62 kg·cm |
| 380:1 | 9 mm | 22 rpm | 0.30 kg·cm | 1.23 kg·cm | 48 rpm | 0.30 kg·cm | 2.07 kg·cm |
| 500:1 | 9 mm | 17 rpm | 0.40 kg·cm | 1.62 kg·cm | 37 rpm | 0.40 kg·cm | 2.73 kg·cm |

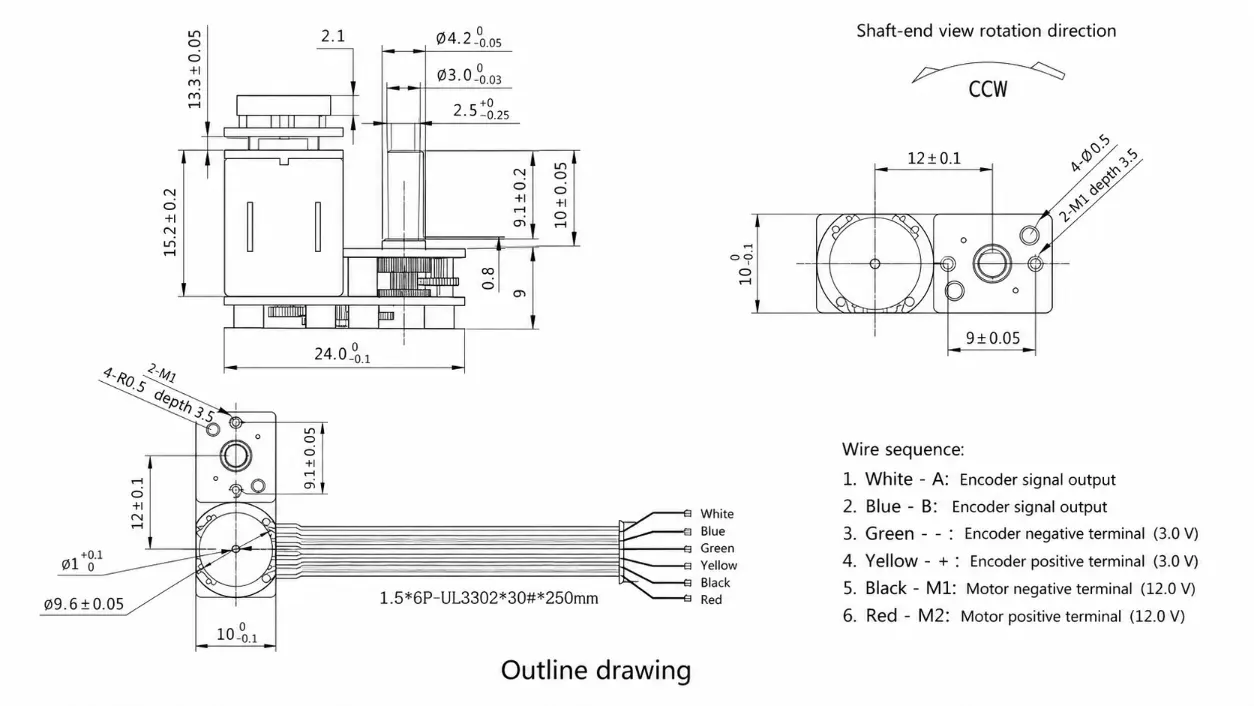

KC-GM1024-N20 Mechanical Outline Dimensions
Technical drawing reference for system integration
Motor Performance Advantages
- Precise feedback: Integrated 7 PPR magnetic encoder ensures accurate closed-loop speed and position monitoring
- Optimized torque transmission: Multi-stage gear reduction ratios from 30:1 to 500:1 provide high torque output for demanding loads
- Durable construction: Robust metal gearbox and precision DC motor architecture ensure long operating life
- Compact integration: Miniaturized footprint fits seamlessly into restricted space constraints across industrial automation and instruments
- Versatile operation: Compatible with diverse voltage inputs (4.8 V DC and 12.0 V DC) to suit specific application requirements
