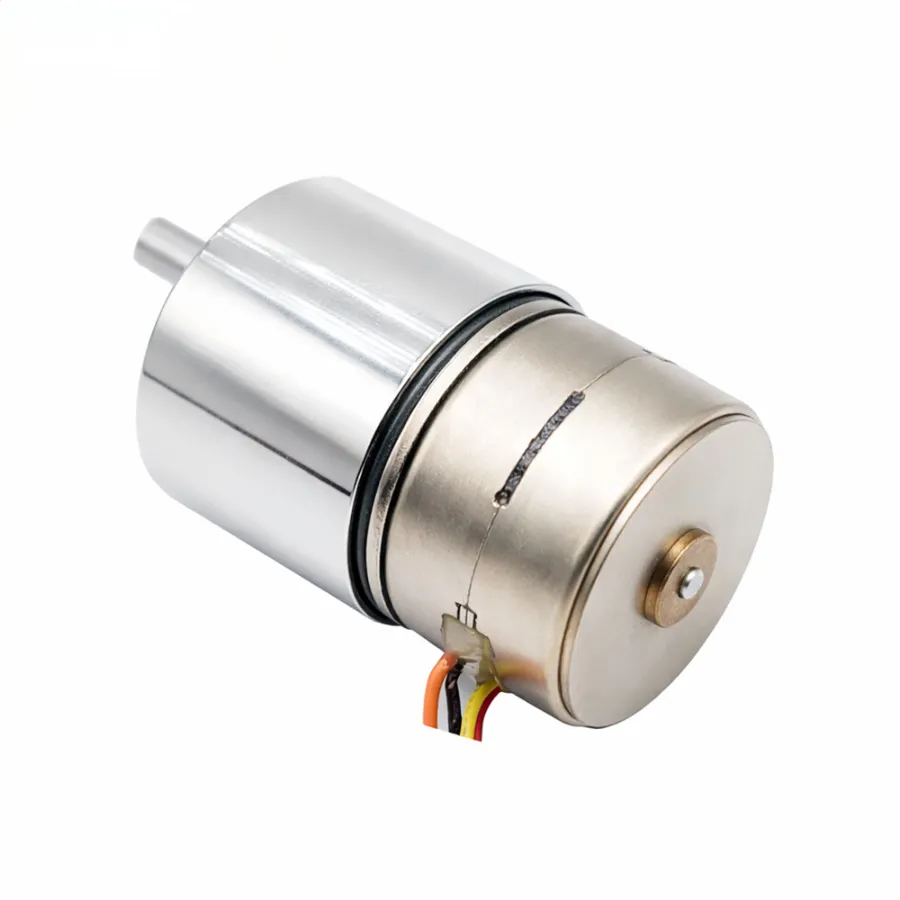

37 mm Parallel Shaft Spur Geared Stepper Motor 2-Phase Bipolar 12 V 24 V | KC-GM37-35BY
Applications: Medical infusion pumps, laboratory automation analyzers, automatic fluid control valves, smart commercial locks, motorized window blinds, vending machine product dispensers, ticket printing mechanisms, industrial pan-tilt-zoom (PTZ) cameras, banking ATM modules, precision measuring instruments, automated valve controllers, peristaltic pumps, electronic access control systems, textile positioning feeds, commercial HVAC damper actuators.
Inquiry NowKC-GM37-35BY Geared Stepper Motor Technical Specifications
Mechanical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Gearbox Diameter | 37 mm | Spur gearbox design |
| Motor Diameter | 35 mm | PM stepper base motor |
| Output Shaft Type | D-type shaft | Ensures high torque transmission without slippage |
| Output Shaft Diameter | Φ6.0 mm | Standard industrial specification |

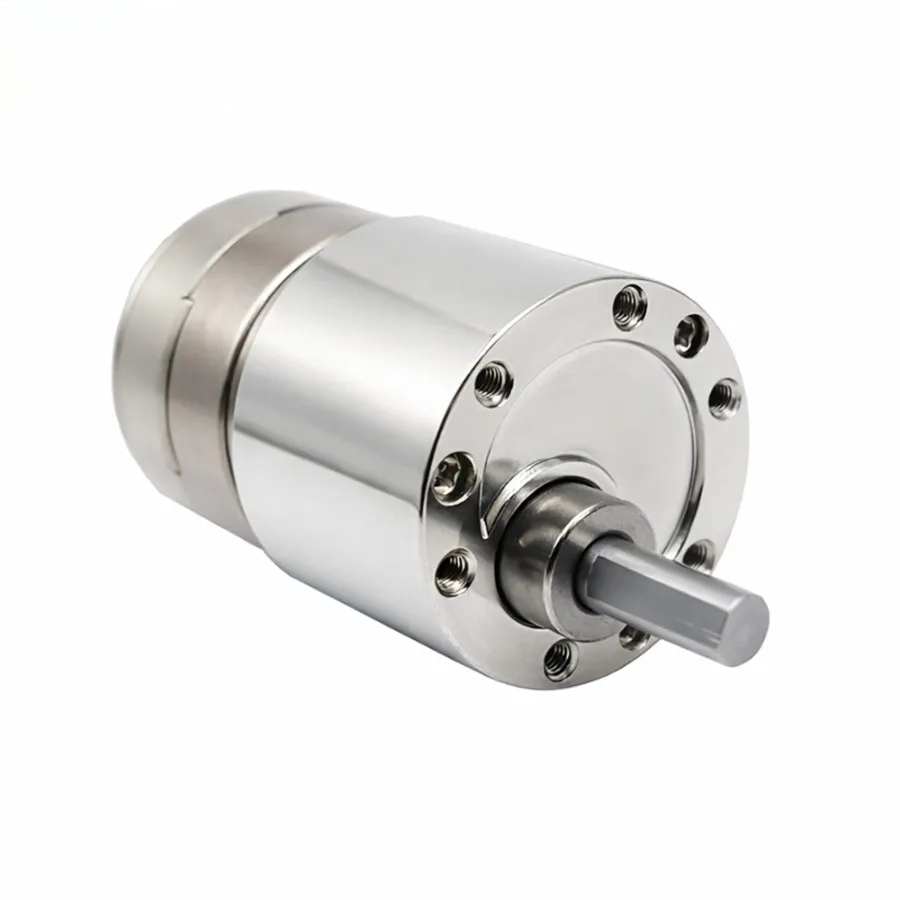

| Mounting Pitch | PCD 31 mm | Positioning mounting holes |
| Shaft Alignment | Eccentric / offset shaft | Parallel shaft gearbox physical characteristics |
Electrical & Performance Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 5.0 V DC / 12.0 V DC / 24.0 V DC (custom parameters supported) |
| Reduction Ratio Range | 1:10 to 1:2000 (multistage gear transmission optional) |
| Maximum Output Torque | 20.0 kg·cm (peak load torque) |
| Number of Phases / Wires | 2-Phase / 4-Wire (bipolar drive) |

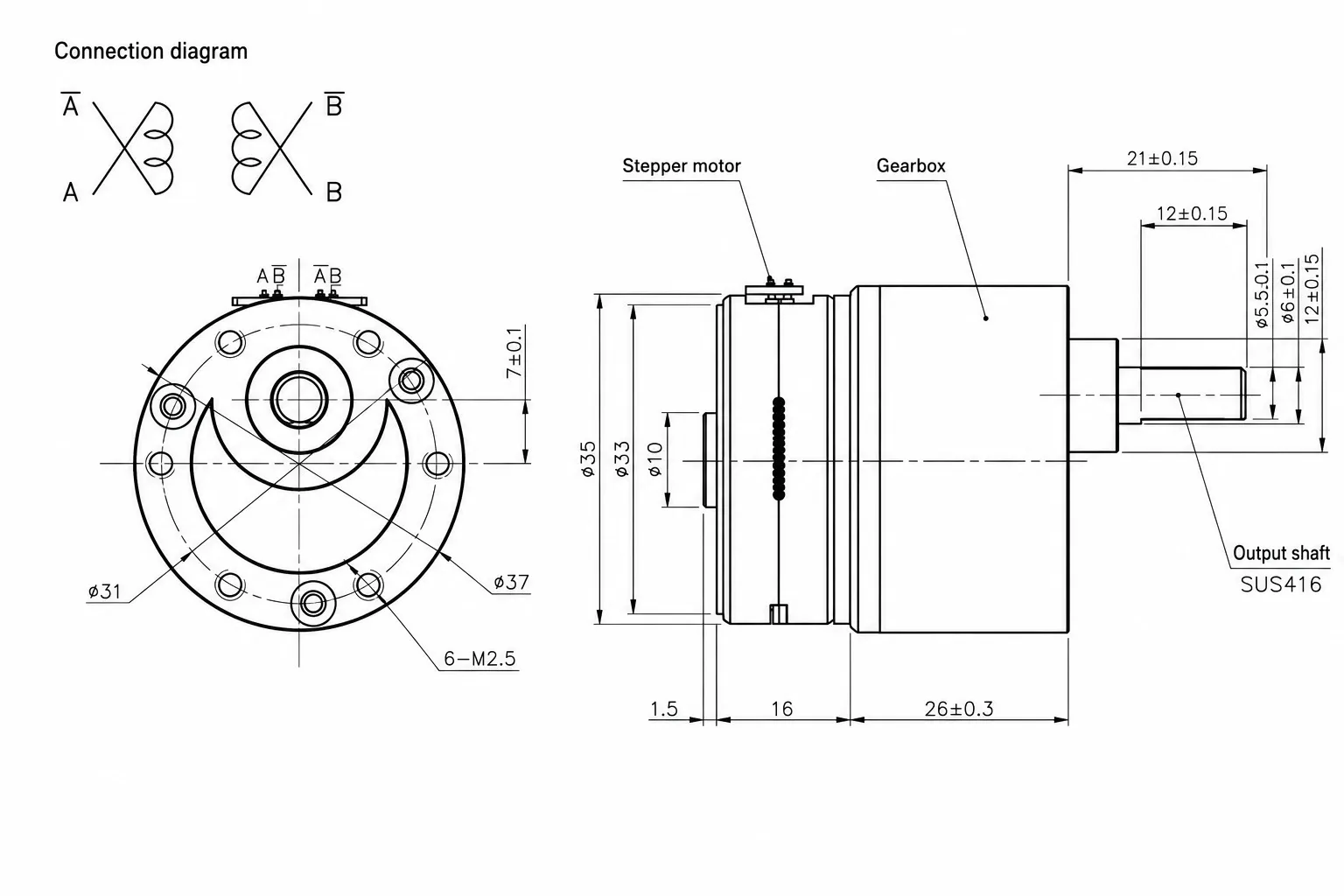

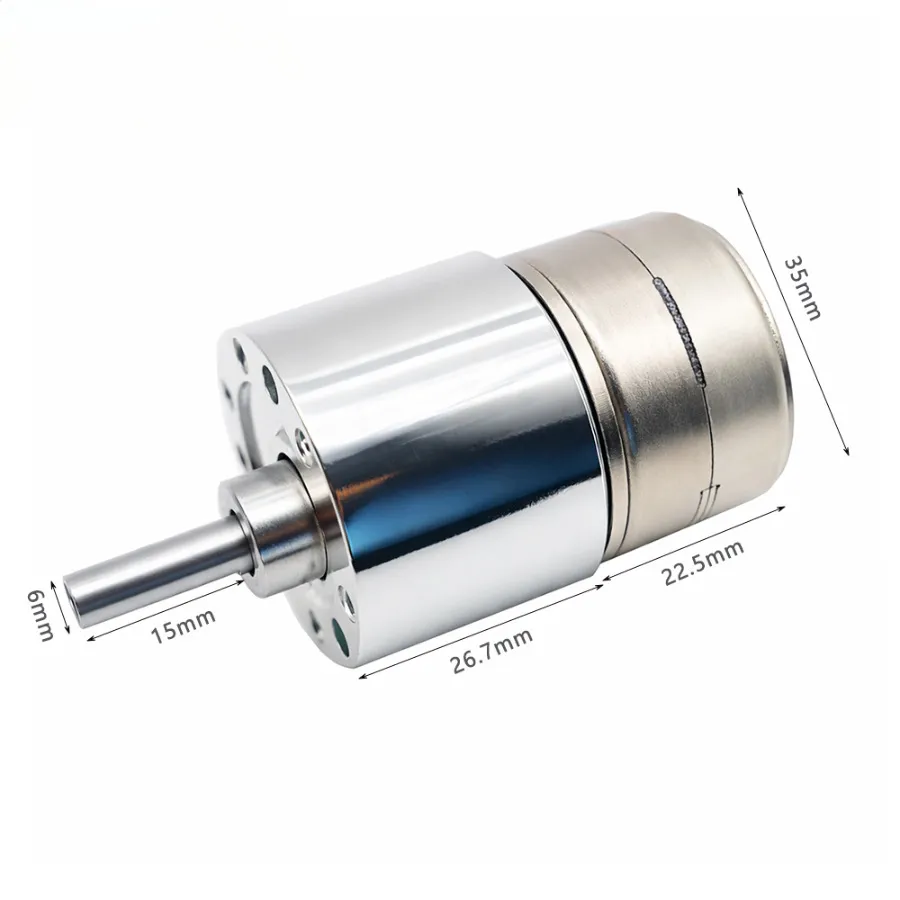

KC-GM37-35BY Dimensional Specifications & Mechanical Drawing
Performance Advantages
- Optimized torque transmission: Delivers up to 20.0 kg·cm peak torque through a precise 37 mm spur gearbox integration.
- Precise positioning control: Driven by a 2-phase 4-wire bipolar PM stepper motor configuration for stable step execution.

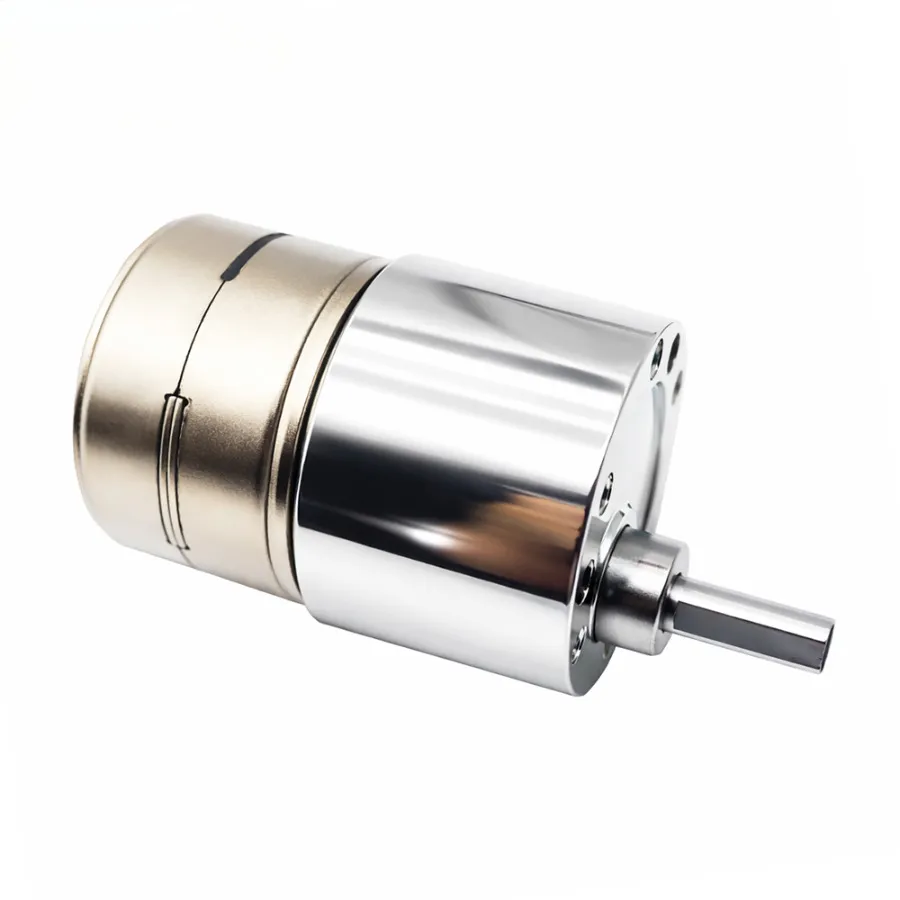

- Durable mechanical structure: Features a Φ6.0 mm D-type output shaft to eliminate slippage during high-load operations.
- Compatible integration: Standard PCD 31 mm mounting pitch and eccentric offset parallel shaft alignment ensure seamless system fitting.
- Flexible electrical parameters: Supports 5.0 V DC, 12.0 V DC, and 24.0 V DC voltage customization to match specific application criteria.
Optimized Application Sectors
- Medical & Lab Automation: Medical infusion pumps, peristaltic pumps, automatic biochemistry analyzer fluid control.
- Valve & Fluid Control: Industrial automatic fluid control valves, motorized actuators.
- Commercial Intelligent Terminals: Vending machine product dispensers, bank ATM modules, automatic ticket and voucher mechanisms.
- Security & Access Control: Smart commercial locks, heavy-duty industrial PTZ cameras.
- Building Automation: Motorized commercial window blinds, HVAC damper actuators.
Commercial & Customization Terms
This product line is designed specifically for industrial-grade B2B applications. No consumer-end retail stock is available. All items are manufactured via OEM/ODM production based on client technical drawings and specifications.
- Custom Samples Lead Time: 10-20 days depending on structural complexity.
- Bulk Orders: Tiered wholesale pricing structures aligned with industrial manufacturing schedules.
- Compliance & Quality Management: Certified to ISO 9001 quality management standards, CE safety compliant, and RoHS environmental standard aligned.
