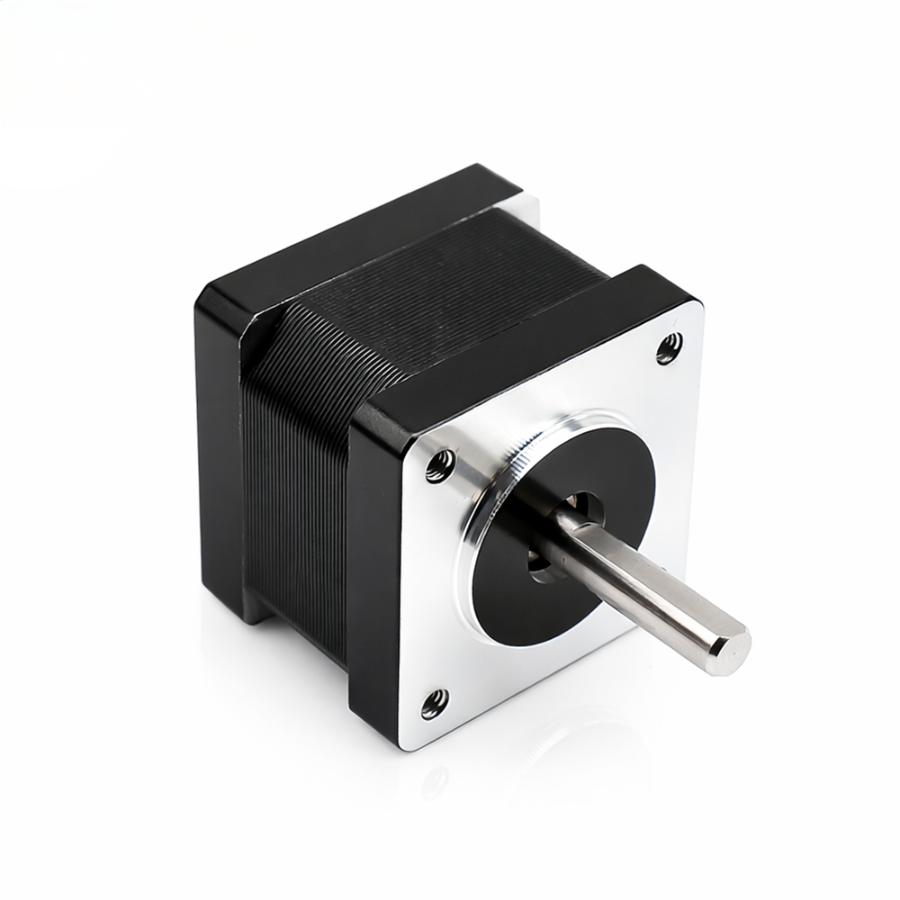

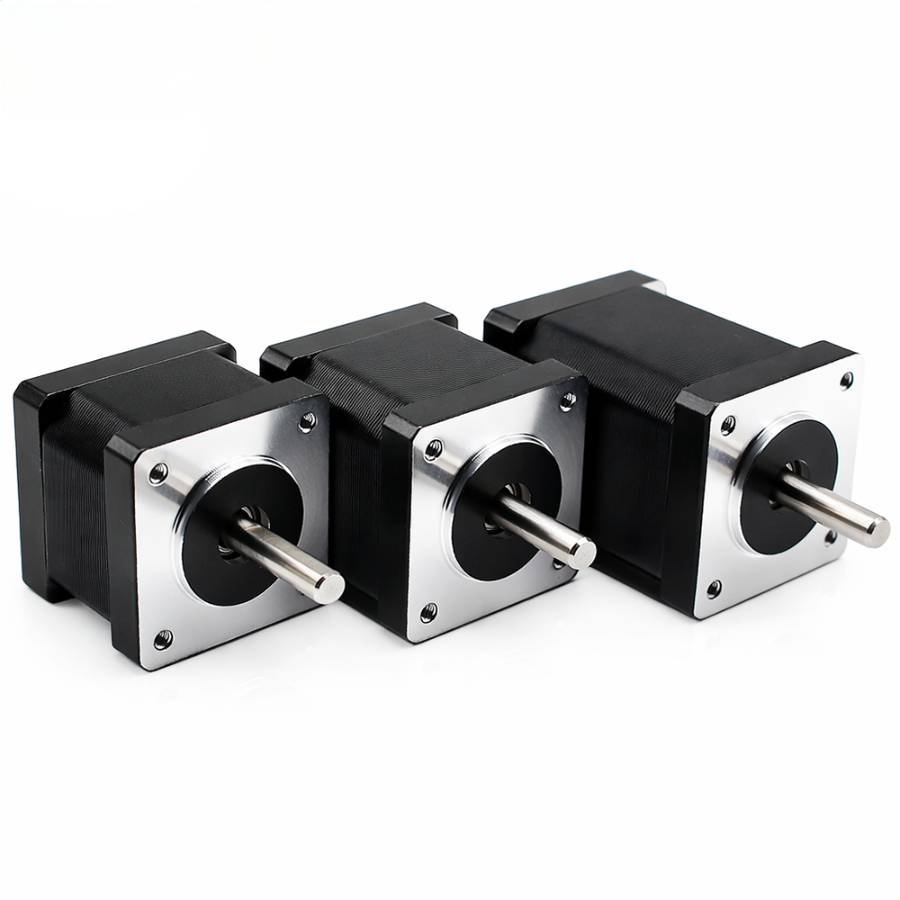

KC-35HYB28 NEMA 14 Hybrid Stepper Motor (28mm Body Length, 1.8°, 2.2 kg.cm)
Applications: 3D printer extruders, compact CNC engravers, precision laboratory automation, medical infusion pumps, surgical robots, automated liquid handlers, PTZ security cameras, textile machinery, semiconductor handling equipment, electronic valve control, 3D scanners, camera positioning systems, optical instruments, smart access control, small-scale AGV steering.
Inquiry NowKC-35HYB Series NEMA 14 Hybrid Stepper Motor Mechanical Specifications
| Parameter | Specification |
|---|---|
| Motor Architecture | 2-phase hybrid stepper motor |
| Frame Size | NEMA 14 (35.2 mm × 35.2 mm flange) |
| Number of Phases | 2 phases |
| Shaft Configuration | Straight output shaft with flat D-cut profile |
| Output Shaft Diameter | 5 mm |
| Mounting Interface | 4-M3 holes on 26 mm pitch configuration |
KC-35HYB Series NEMA 14 Electromechanical Performance Data Table
| Model | Resistance | Inductance | Step Angle | Rated Current | Rated Voltage | Holding Torque | Shaft Length | Motor Thickness |
|---|---|---|---|---|---|---|---|---|
| KC-35HYB26 | 1.8 Ω | 1.7 mH | 1.8° | 1.5 A | 2.7 V | 2.2 kg·cm | 20 mm | 28 mm |
| KC-35HYB28 | 1.8 Ω | 1.7 mH | 1.8° | 1.5 A | 2.7 V | 2.2 kg·cm | 20 mm | 28 mm |
| KC-35HYB33 | 3.8 Ω | 5.3 mH | 1.8° | 1 A | 3.8 V | 2.5 kg·cm | 17 mm | 33 mm |
| KC-35HYB35 | 3.9 Ω | 9 mH | 0.9° | 1 A | 3.9 V | 1.5 kg·cm | 24 mm | 35 mm |
| KC-35HYB41 | 3.7 Ω | 5.5 mH | 1.8° | 2 A | 7.4 V | 3.3 kg·cm | 24 mm | 41 mm |
| KC-35HYB47 | 3.1 Ω | 4.3 mH | 1.8° | 1.2 A | 3.72 V | 3.25 kg·cm | 21.5 mm | 47 mm |

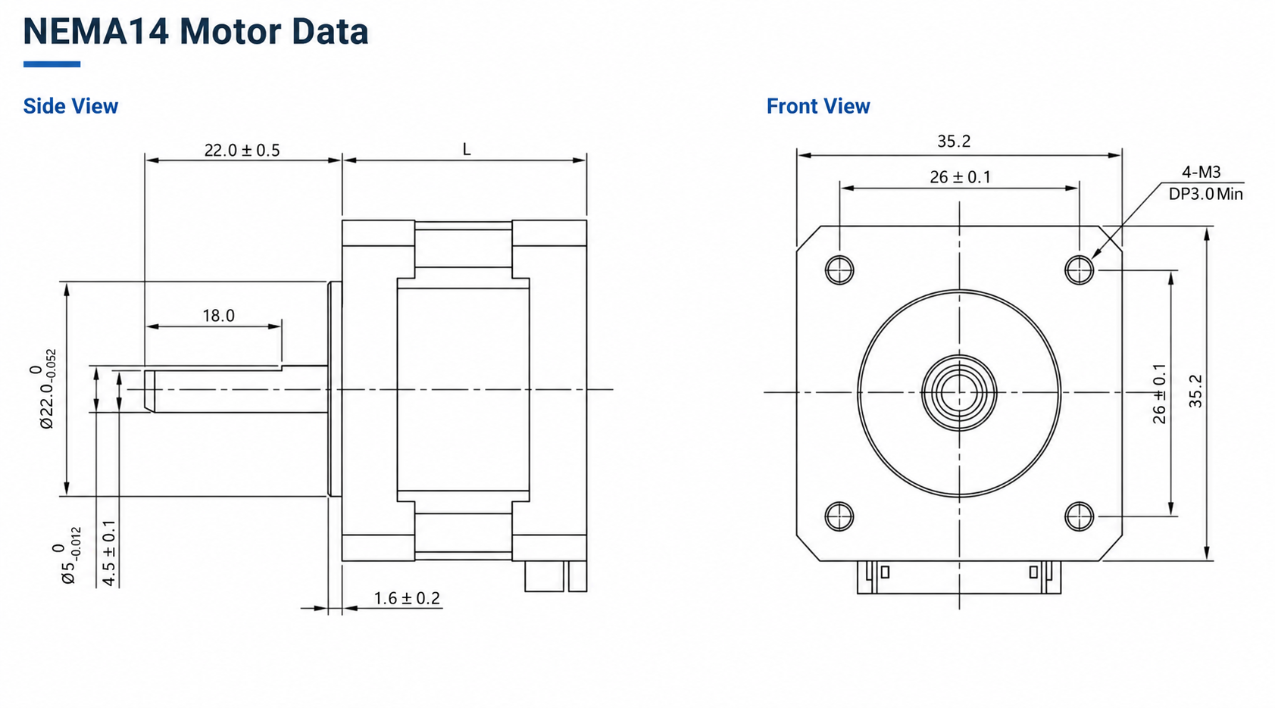

KC-35HYB Series 2D Outline Dimensions – Mechanical Drawing (mm)
Dimensional specifications for installation reference | All values in millimeters

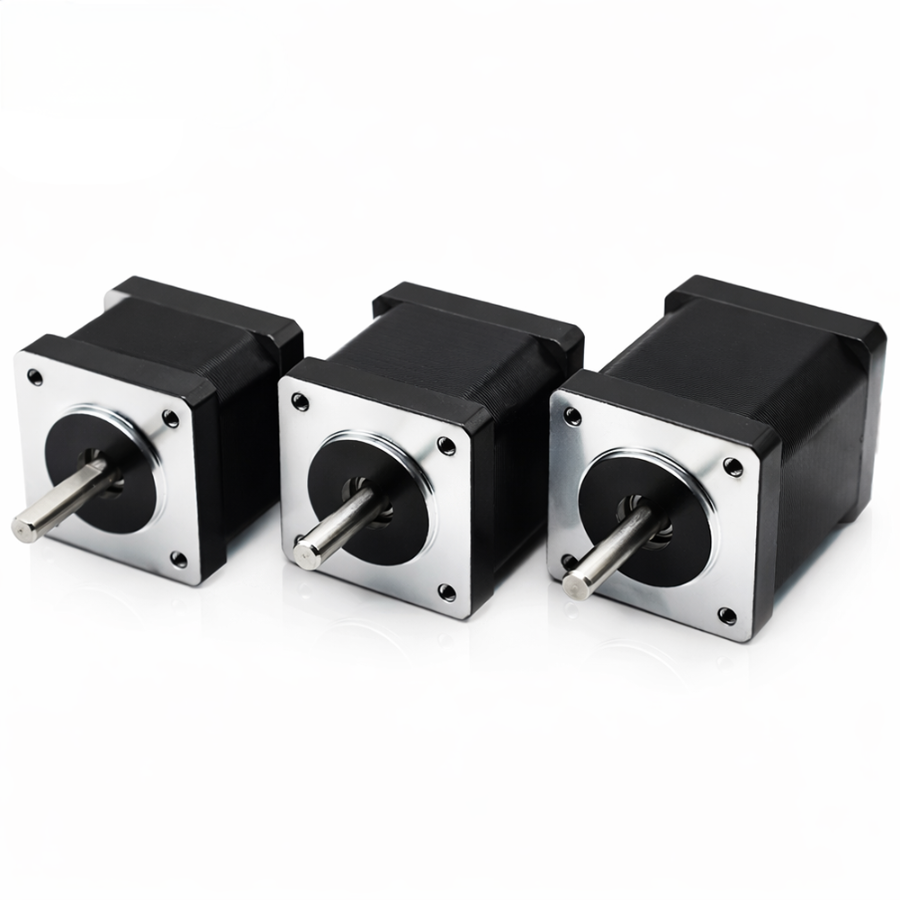

Industrial Integration Advantages

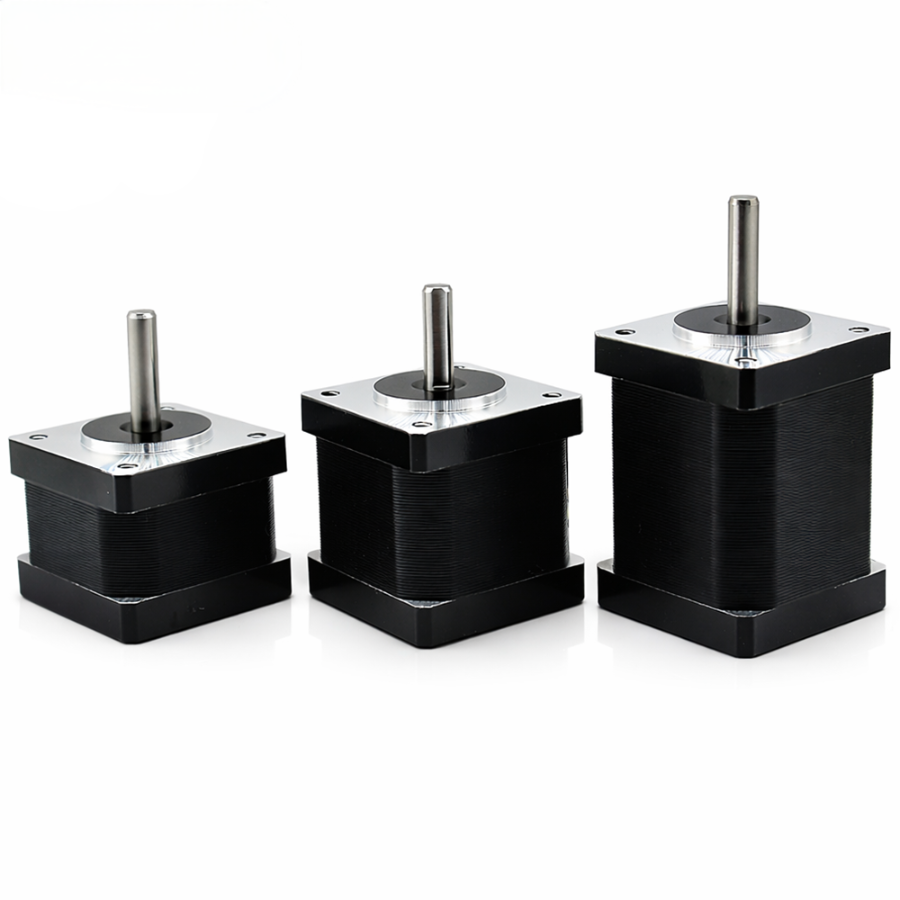

- Optimized dimensional efficiency: Standard NEMA 14 profile configuration combined with versatile frame thickness options ranging from 28 mm to 47 mm allows stable integration into space-constrained B2B equipment.
- Precise angular execution: High accuracy 1.8° step angle distribution across standard configurations with an alternative 0.9° high resolution execution (KC-35HYB35) allows precise movement repeatability.
- Scalable performance delivery: Balanced electromechanical design provides custom configurability across a torque performance array ranging from 1.5 kg·cm up to 3.3 kg·cm to handle dynamic mechanical loads securely.
- Standardized installation parameters: Standard 5 mm output straight shaft profile structure matching a 26 mm pitch mounting interface facilitates quick mechanical integration and maintenance cycles.
- Durable winding layout: Balanced winding resistance and low inductance parameters limit internal heat buildup to sustain long term performance metrics under demanding continuous operation.
