High Speed Round Shaft Miniature DC Motors 2.4V 6V 12V High Efficiency KC-130SH Series

Technical Specification
KC-130SH Series
Micro DC Motor — Optimized for precise mechanical integration and durable speed performance
Model Designation
KC-130SH Series
Motor Type
Brushed DC Motor
Voltage Range
2.4V – 12.0V DC
Shaft Configuration
2.0mm Round Shaft
Max No-Load Speed
Up to 22000 r/min
Max Stall Torque
Up to 128 g·cm
✓ Custom samples: 10-20 days
✓ Bulk order pricing available
✓ ISO 9001, CE & RoHS Compliant
Applications: Mini 4WD racing cars, RC cars, slot cars, radio-controlled watercraft, motorized track toys, hobby-grade model trains, educational model robotics, electric shavers, hair clippers, facial cleansing brushes, automated soap dispensers, electronic blood pressure monitors, micro diaphragm air pumps, receipt printers, smart pet feeders.
Inquiry Now

KC-130SH Series Micro DC Motor Performance Specifications

Model Number Rated Voltage No-Load Speed No-Load Current Max Efficiency Speed Max Efficiency Torque Max Efficiency Current Output Power Stall Torque Stall Current
KC-130SH-1990 2.4 V DC 6 400 rpm 95 mA 5 000 rpm 10.5 g·cm 410 mA 0.98 W 41 g·cm 1.45 A
KC-130SH-18130 6.0 V DC 10 500 rpm 210 mA 8 500 rpm 20.5 g·cm 610 mA 3.66 W 95 g·cm 2.31 A
KC-130SH-16135 12.0 V DC 22 000 rpm 168 mA 18 900 rpm 20.5 g·cm 585 mA 7.02 W 128 g·cm 3.04 A

Mechanical Structure And Physical Parameters

Specification Item Technical Parameter
Chassis Diameter 25.1 mm chassis housing profile
Shaft Type Precision ground round shaft
Shaft Diameter 2.0 mm nominal diameter
Hole Spacing 12.4 mm pitch screw mounting layout
Commutation Type Precious metal / carbon brush commutation system
Excitation Mode Permanent magnet field generation
Manufacturing Location Songgang, Shenzhen, China

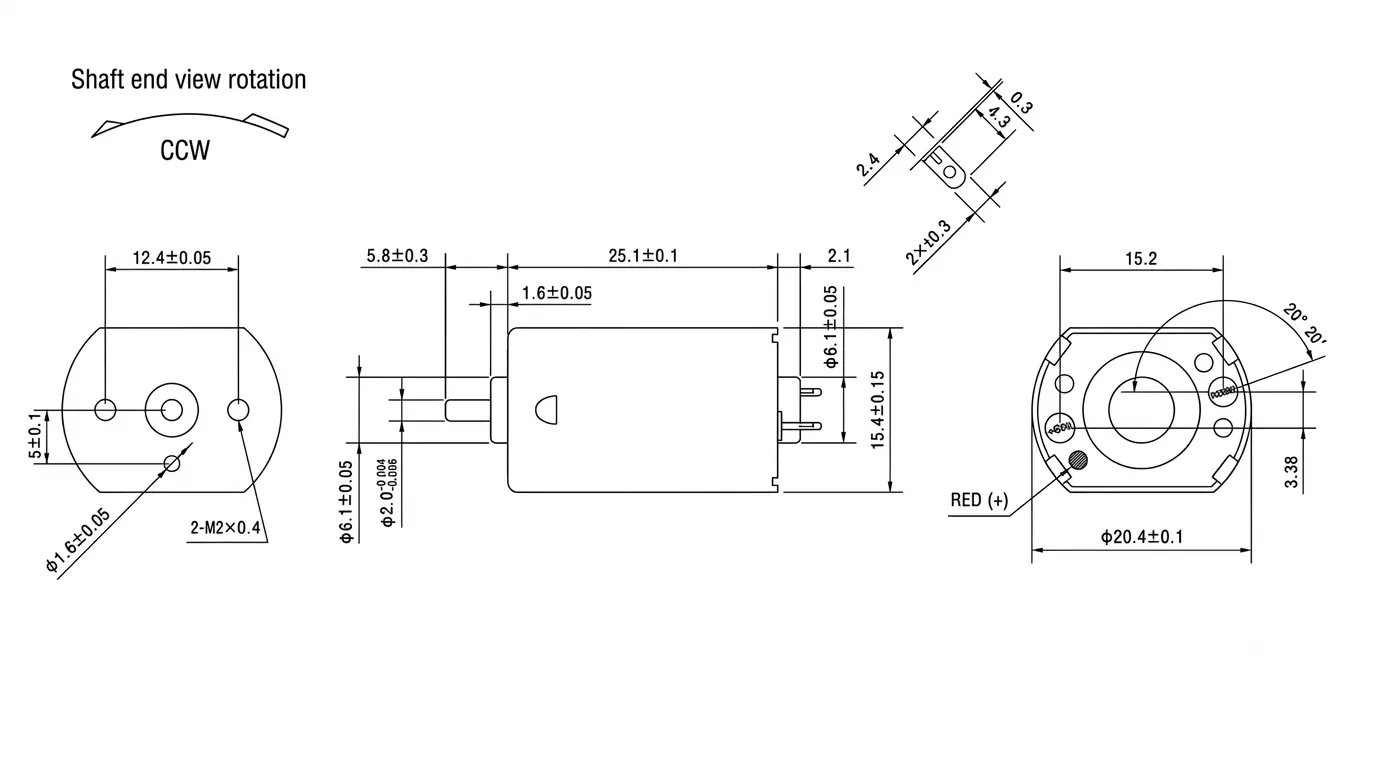

KC-130SH Dimensional Outline And Engineering Reference Drawing

Technical specifications for industrial integration | Mechanical scale in millimeters

Kechen Motor KC-130SH micro DC motor technical 2D drawing showing 12.4mm hole spacing and 2.0mm round shaft diameter.

⚙️ KC-130SH Series Micro 130 DC Motor Dimensional Outline Layout

Optimized Performance Integration Advantages

  • Scalable Configuration Profile: Broad voltage adaptability spanning 2.4 V, 6.0 V, up to 12.0 V DC operation channels
  • Precise Torque Execution: High efficiency winding generates stable 10.5 g·cm to 20.5 g·cm continuous workload delivery
  • High Speed Output Dynamics: Configured 12.0 V winding enables stable 22 000 rpm rotation capacity for premium transmission velocity
  • Standardized Form Integration: Uniform 25.1 mm length chassis paired with a 12.4 mm mounting system ensures precise installation drop-in compatibility
  • Rugged Rotor Architecture: Solid 2.0 mm precision ground round shaft mechanism mitigates mechanical friction slip factors
  • Tailored Engineering Specifications: Flexible winding resistance parameters available for specific industrial B2B procurement applications
